AKG

AKG GN 15 E 5-Pin

Write a Review
$229.00
AKG GN 15 E 5-Pin

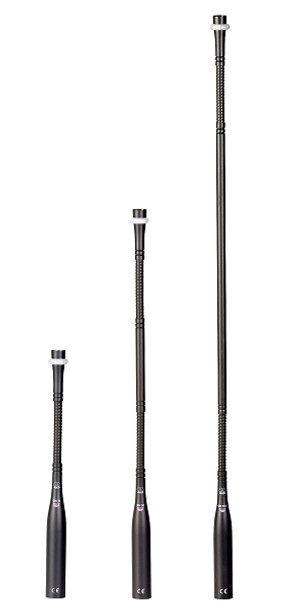

AKG 2765H00020 - IMG01
SKU:
2765H00020
UPC:
885038003090
MPN:
885038003090
Width:
5.00 (in)
Height:
3.60 (in)
Depth:
11.50 (in)
Shipping:
Free Shipping
Current Stock:

Out of stock or discontinued
Check new versions and similar products

Description

PROVEN RELIABILITY for use in houses of worship, conference rooms and theatres.

Designed for permanent installation, the AKG GN Series Goosenecks are designed in 3 fixed lengths. The GN15 measures approximately 6 inches in length, the GN30 is 12 inches and the GN50 is 20 inches. The goosenecks are completely compatible with AKG CK series microphone capsule modules.

This model features a 5-pin XLR male output and large LED ring for enhanced visibility. The LED ring indicates an active microphone and the 5-pin XLR connection will carry audio signal as well as power to the LED ring from a separate power supply, e.g., a Logic out from the AS 16 x 12 automatic mixer. The goosenecks feature a bass roll-off switch and quiet gooseneck positioning. The bass roll-off filter eliminates low frequency noise caused by ambiance, ground and structure noise.

Features
  • Gooseneck with 5-pin XLR connector module
  • Extra-large LED ring indicator
  • Switchable bass rolloff
  • Extremely rugged gooseneck construction
  • Highly reliable contacts for capsule modules
5-pin XLR and Large LED Ring
A 5-pin XLR male output and large LED ring are provided. The LED ring indicates an active microphone and the 5-pin XLR connection will carry audio signal as well as power to the LED ring from a separate power supply.

Modular Design
The GN series goosenecks are completely compatible with the CK series modular microphone capsules.

Bass Roll-Off
Low frequency roll-off filter switch reduces low frequency noise caused by ambiance, structure noise, etc.

Quiet Positioning
The gooseneck provides silent microphone positioning.

Specifications
  • Length: 9" (235mm)
  • Low Frequency Roll-Off: 250Hz, -10dB @ 50Hz
  • Impedance
    • <= 600 ohms
    • Recommended Load: >= 2k ohms
  • Phantom Power: 9 to 52V Phantom Power
  • Current Consumption: <3 mA
  • Connector: 5-pin male XLR extra pins carry power to LED ring from external power source
  • Cable Length: 5' (1.5 m)
  • Weight: 5.6 oz (160g)
