Description

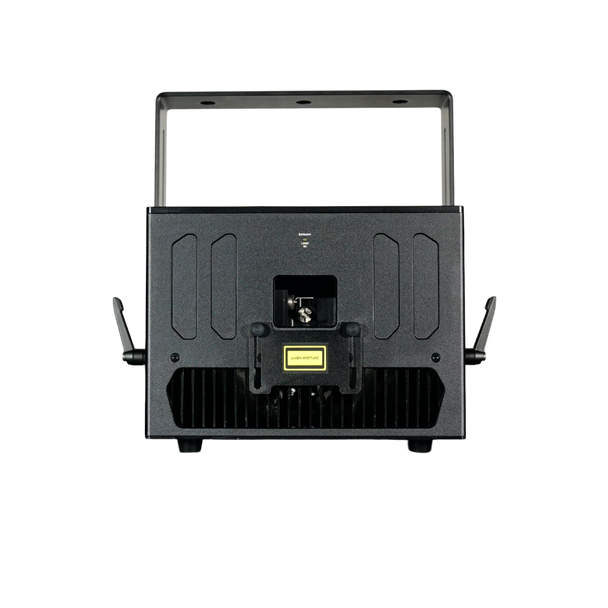

The X-Laser Skywriter HPX M-30 is a high-powered RGB laser fixture built for large venues, outdoor events, and professional productions that need intense laser effects with advanced control. Featuring X-Laser’s integrated Mercury control system and a rugged road-ready enclosure, it delivers powerful brightness, flexible operation, and reliable performance.
Features
- 30W balanced RGB laser engine with direct-injection diode modules
- Integrated X-Laser Mercury control system with 2.25-inch LCD
- High-speed closed-loop galvanometers
- 30,000 PPS scanner speed at 8º scan angle
- 45º maximum scan angle with <1.2 mRad beam divergence
- Fully sealed optical deck
- Additive RGB analog color mixing with 1,000+ colors
- Includes 50 color macros, 11 digital prisms, and 450+ built-in digital patterns
- 60 motion macros with variable speed and amplitude
- EtherStop, ILDA, 5-pin DMX, and PowerCON TRUE1 connectivity
- Rugged 6061 aluminum enclosure with IP53 rating
Why We Like This
The Skywriter HPX M-30 brings serious laser output to demanding productions while keeping control flexible through X-Laser Mercury. Its sealed optics, durable enclosure, and high-output RGB engine make it a strong choice for large-scale laser effects.
FAQs
Q: How powerful is the Skywriter HPX M-30?
A: It features a 30W balanced RGB laser engine.
Q: Does the Skywriter HPX M-30 include X-Laser Mercury?
A: Yes, it includes integrated X-Laser Mercury control with a 2.25-inch LCD.
Q: What venues is the Skywriter HPX M-30 designed for?
A: It is designed for large venues, large audiences, and professional indoor or outdoor productions.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
X-Laser |
Product Type: |
RGB Laser Fixture |
Laser Engine: |
30W Balanced RGB Laser Engine |
Laser Modules: |
Direct-Injection Diode Modules |
Red Laser: |
638 nm, 8.5W |
Green Laser: |
520 nm, 8.5W |
Blue Laser: |
450 nm, 12.0W |
Scanner Type: |
High-Speed Closed-Loop Galvanometers |
Max Scan Angle: |
45º |
Scanner Speed: |
30,000 PPS Scanner Speed at 8º Scan Angle |
Beam Divergence: |
<1.2 mRad |
Optical Deck: |
Fully Sealed |
Power Input: |
90-246V AC Auto-Switching |
Power Draw: |
700W peak |
Power Connector: |
Neutrik PowerCON TRUE1 |
Laser Classification: |
FDA / IEC Hazard Class IV |
FDA Requirement: |
U.S. FDA Variance Required |
Control System: |
X-Laser Mercury integrated |
Display: |
2.25-inch LCD |
Control Compatibility: |
Fixture profiles for all major console brands |
Connections: |
EtherStop combined remote stop and control data in / thru, ILDA in / thru, PowerCON TRUE1 in / thru, 5-pin DMX in / thru |
Color Mixing: |
Additive RGB Analog Color Mixing |
Colors: |
1,000+ Colors |
Color Macros: |
50 |
Digital Prisms: |
11 |
Digital Patterns: |
450+ Gobos / Digital Patterns Built-In |
Motion Macros: |
60 Motion Macros with variable speed and amplitude |
Length: |
16.2” |
Metric Dimensions: |
411 mm x 355 mm x 195 mm; 335 mm yoke up |
Construction: |
Rugged 6061 Aluminum Enclosure |
IP Rating: |
IP53 |
