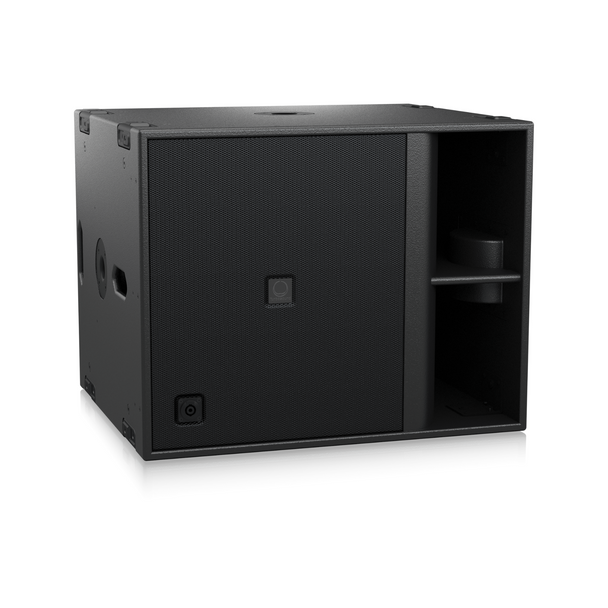

Turbosound Single 15" Reflex Loaded Subwoofer for Touring and Installation Applications

The TQ15B is a compact passive single 15" 3,200 Watt (peak) subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable and touring audio systems. The TQ15B is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as considerable flexibility to readily adapt to varying venue requirements. Its four-point rigging system allows for an array of multiple configurations and all pre-sets are available to download.

Features

• Front-mounted NL4 connector for rear-firing cardioid operation

• Cardioid-arrayable, reflex loaded single 15" subwoofer for touring and installation applications

• 800 Watts continuous, 3,200 Watts peak power

• 15" neodymium low Frequency transducer

• Designed for low frequency extension of TQ series

• Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution

• Flexible cardioid configurations and electronic delay steering provide superior rear rejection and pattern control

• Optimized tuning for extended low frequency impact and accurate transient response

• Low distortion diverging Lense port (DLP) design for maximum sound pressure level

• Integral feet secure ground stacking

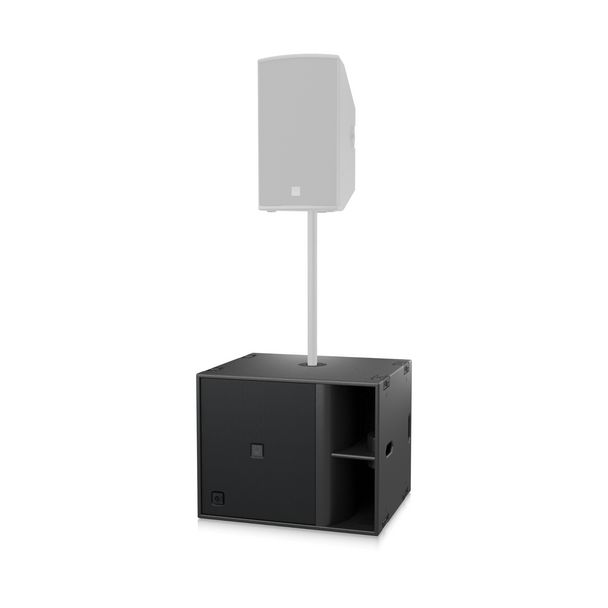

• Dual Integral M20 (3/4" / 20 mm thread) pole mount socket to support satellite speaker configurations

• 15 mm (5/8”) & 18 mm (3/4") plywood enclosure with extremely durable semi matte black paint finish

• Industry standard 4-pole twist-lock speaker connector on rear panel for input connection

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed by ourselves or to our exacting standards.

Enclosure Design

The low distortion design utilised in the TQ15B reinforces the low frequency spectrum in program or live music, steep cut-off slopes and Large singular DLP Technology (Diverging Lens Port) ensure an effective acoustic transition for use with TQ series elements.

Construction and Connectivity

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") and 18 mm (3/4”) plywood – and includes a rugged powder coated industry-standard twist-lock speaker connector for input and link connections to additional enclosures. The front grille also has an industry-standard twist-lock speaker connector to allow neat cabling when the enclosure is deployed in cardioid mode.

Integration with Lab Gruppen PLM+

With the ever-increasing complexity of modern-day sound systems. Seamless integration with the Lab Gruppen PLM+ is a prerequisite for the TQ series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section. Future FIR capable platforms from Lab Gruppen will be supported.

Acoustic Simulation Tools

EASE GLL files are provided for the EASE Focus 3 Acoustics Simulation Software, which is available for free download. This allows accurate calculation of acoustic coverage, matching simulation strategy to DSP pre-sets with a selection of traditional forward facing, cardioid and reversed end fire pre-sets.
