Description

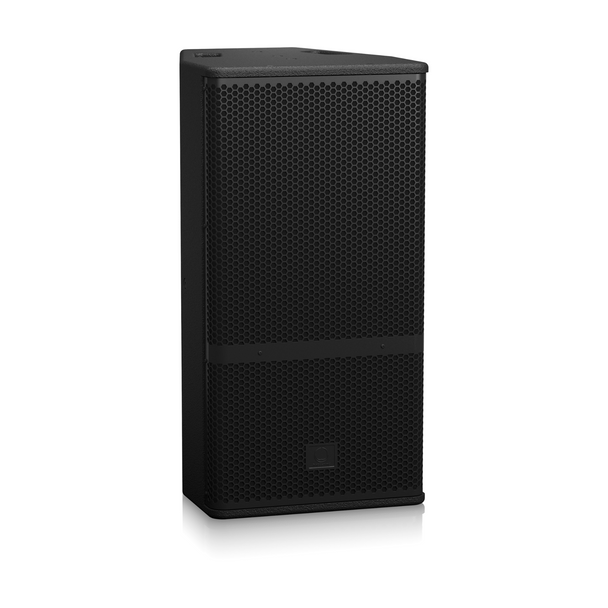

The bi-amped 3-way full range MC12-P is a compact 12", 690-Watt Point Source Asymmetrical Element that is ideally suited to a broad range of speech and music sound reinforcement applications in fixed installation, portable and touring audio systems. The MC12-P is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.
Features
-
Full Size 12" Point Source Asymmetrical Element for Install and Touring Applications
-
12" low frequency transducer with lightweight neodymium motor
-
1 x 1.4" coaxial neodymium mid-high compression driver
-
Integral Dendritic Plane Wave Transformer (DPWT) waveguide & Asymmetrical Horn
-
690 Watts continuous, 2,760 Watts peak power
-
40-100° Asymmetrical (H) x 30° (V)
-
3 way bi-amplified switchable passive operation
-
Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
-
Advanced linear phase FIR hybrid processing for exceptional sound quality
-
Integral dual angle 35 mm pole mount
-
Internal rigging points for bracket mount suspension
-
IP54 dust and water ingress protection
-
Weather-resistant enclosure construction with durable semi matte black paint finish
-
Tour grade 4-pole twist-lock speaker connectors for input and link connection
Specification
System
| Frequency response (-3 dB) ¹ |
55 Hz - 20 kHz |
| Frequency response (-10 dB) ¹ |
39 Hz - 20 kHz |
| Nominal dispersion |
40-100 degrees asymmetrical (H) x 30 degrees (V) |
| Power handling (IEC) |
MHF: 190 W continuous FR: 690 W continuous |
| Sensitivity |
MHF: 114.5 dB (1 W @ 1 m) ²
|
| MaximumSPL |
138 dB (passive mode) /140 dB (bi-amp mode) ³ |
| Impedance |
LF: 8 Ω / MHF: 12 Ω FR: 8 Ω |
| Crossover type |
External bi-amp and internal passive |
| Components |
1 x 12" (315 mm) LF driver 1 x 1.4" (35 mm) exit, large format dual compression driver |
| IP Rating |
|
| UV Rating |
|
Enclosure
| Connectors |
2 x twist-lock NLT4MP STX connector |
| Wiring |
Bi-amp mode: Pins 1+ / 1- LF, pins 2+ / 2- HF Passive mode: Pins 1+ / 1- input, pins 2+ / 2- link |
| Dimensions H x W x D |
700 x 358 x 460 mm (27.6 x 24 x 18.1") |
| Net weight |
28.5 kg (62.8 lbs) |
| Construction |
15 mm (enclosure) and 18 mm (front) marine birch plywood, vented and internally braced |
| Finish |
Polyurethane black, with custom colours on request |
| Grille |
Powder coated perforated steel |
| Flying hardware |
Integral suspension system and M10 x 12 points with dedicated yoke, swivel and fly-bar accessories |
