Description

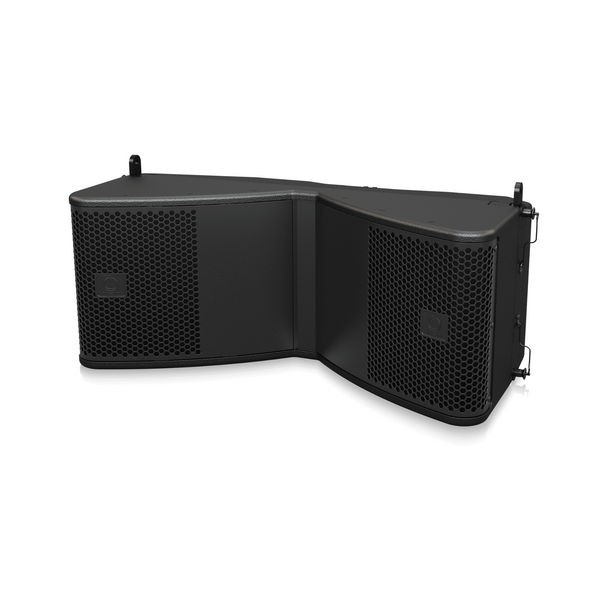

The bi-amped 3-way full range MV210-HC is a compact dual 10", 990-Watt line array element that is ideally suited to a broad range of speech and music sound reinforcement applications in fixed installation, portable and touring audio systems. The MV210-HC is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.
Features
-
Full size, passive 3-way line array element for touring and installation applications
-
Dual 10" low frequency transducers with lightweight neodymium motors
-
1 x 1.4" coaxial neodymium mid-high compression drivers
-
Integral Dendritic Plane Wave Transformer (DPWT) waveguides for perfect line source coupling in the vertical plane
-
990 Watts continuous, 3,960 Watts peak power
-
100° horizontal x 0-20° variable vertical curvature
-
3 way bi-amplified operation
-
Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
-
Advanced linear phase FIR hybrid processing for exceptional sound quality
-
3-point suspension system with advanced ergonomic design for extremely rapid deployment and ease of use
-
Suspend up to 12 MV210-HC elements at 10:1 safety factor
-
Weather-resistant enclosure construction with durable semi matte black paint finish
-
Tour grade 4-pole twist-lock connectors for input and link connection
Specification
System
| Frequency response (-3 dB) ¹ |
58 Hz - 20 kHz |
| Frequency response (-10 dB) ¹ |
42 Hz - 20 kHz |
| Nominal dispersion |
100 degrees (H) x 20 degrees (V) |
| Power handling (IEC) |
LF: 800 W continuous |
| Sensitivity |
LF: 102 dB (1 W @ 1 m) ² MHF: 114.5 dB (1 W @ 1 m) ² |
| MaximumSPL |
144 dB ³ |
| Impedance |
LF: 8 Ω MHF: 12 Ω |
| Crossover type |
External bi-amp |
| Components |
2 x 10" (250 mm) LF driver 1 x 1.4" (35 mm) exit, large format dual compression driver |
| IP Rating |
54 |
| UV Rating |
6 |
Enclosure
| Connectors |
2 x twist-lock NLT4MP STX connector |
| Wiring |
Pins 1+ / 1- LF, pins 2+ / 2- MHF |
| Dimensions H x W x D |
295 x 715 x 545 mm (11.6 x 28.1 x 21.5") |
| Net weight |
35.5 kg (78.3 lbs) |
| Construction |
15 mm (enclosure) and 18 mm (front) marine birch plywood, vented and internally braced |
| Finish |
Polyurethane black, with custom colours on request |
| Grille |
Powder coated perforated steel |
| Flying hardware |
3 point rigging system |
