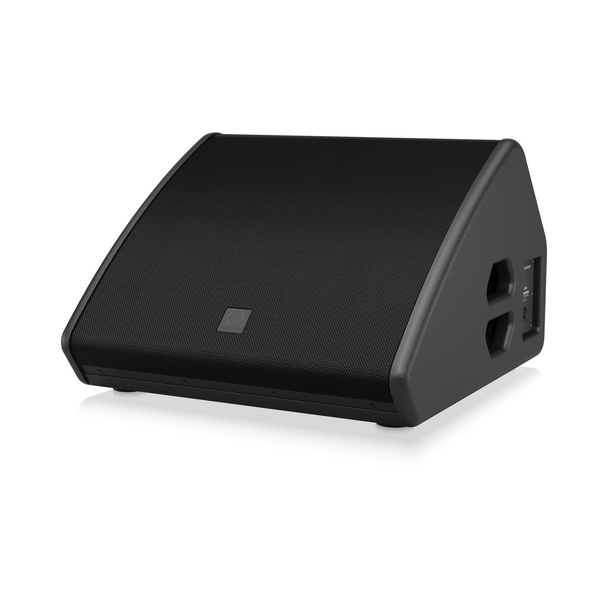

Turbosound Co-axial 2 Way 14" Stage Monitor for Touring Applications

The 2-way full range TQ14M is a switchable passive/bi-amp 1,920 Watt 14" loudspeaker system that is ideally suited for all professional stage monitor reinforcement applications. The TQ14M is designed to work in conjunction with Lab Gruppen PLM+ and IPX amplification and TQ14M provides optimal performance for stage monitoring.

Features

• 2 way full range loudspeaker for Tour and Live Sound applications

• 480 Watts continuous, 1,920 Watts peak power

• Carbon fibre loaded 14" neodymium motor low frequency driver

• Titanium dome 1.4" exit, 3" voice coil, neodymium motor compression driver

• Low profile design to maximise audience sight lines

• Low distortion waveguide provides 60° H x 40° V dispersion

• Switchable passive/bi-amp operation for flexibility of use

• 15 mm (5/8") plywood enclosure

• IP44 dust and water ingress protection

• Weather-resistant enclosure construction with durable semi matte black paint finish

• Cloth covered powder coated perforated steel mesh grille

• Durable handle for easy lifting and carrying

• Industry standard 4-pole twist-lock speaker connectors for reliable long life operation

Custom-Engineered Drivers and Waveguides

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TQ14M loudspeaker features an FEM optimized common motor 14" neodymium low frequency driver as well as a titanium and polyimide dome 1.4" exit, 3” voice coil neodymium high frequency compression driver, which is mounted on a 40° horizontal by 60° vertical dispersion low Aluminium zero ring custom horn. This also acts as a heatsink from the motor assembly reducing power compression insuring consistent performance over extended durations.

Plywood Construction

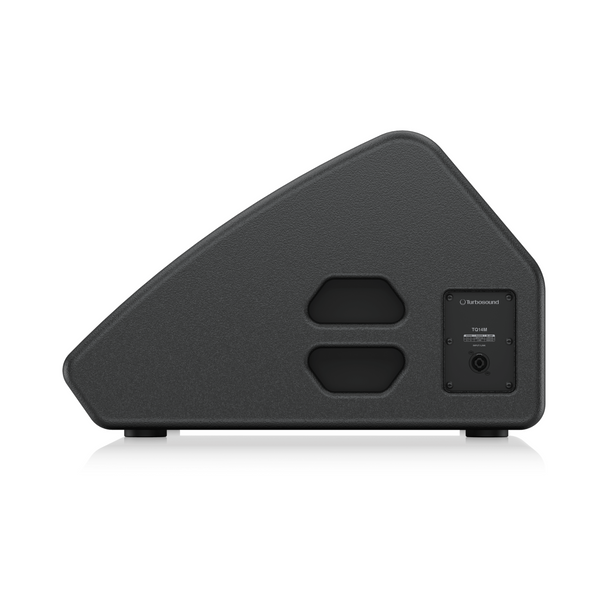

Finished in a highly durable semi matt PU black paint, the cabinet is constructed from 12 and 15 mm (½" and 5/8") plywood. It includes a rugged powder coated cloth wrapped perforated steel mesh grille. The TQ14M includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and side handles for easy transport. The side panels carry two industry-standard twist-locking speaker connectors for input and link connections to additional enclosures, a high-power recessed toggle switch allows switching between passive and bi-amp modes. TQ14M’s low profile design provides improved audience line of sight for seamless integration into any stage application.

Touring-Grade Performance

Designed to provide exceptional and unobtrusive onstage performance for touring musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 1,920-Watt TQ14M puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.

Specification

Enclosure
