Description

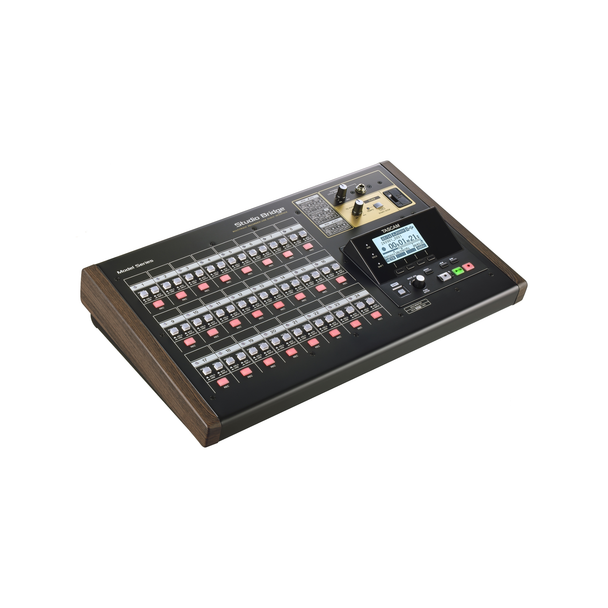

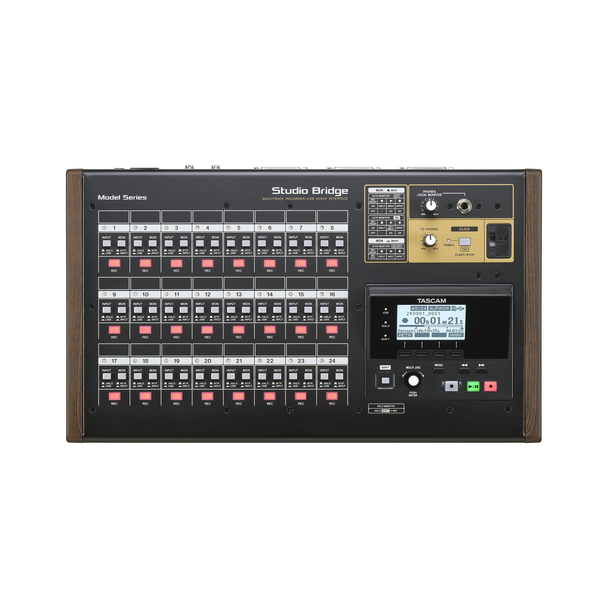

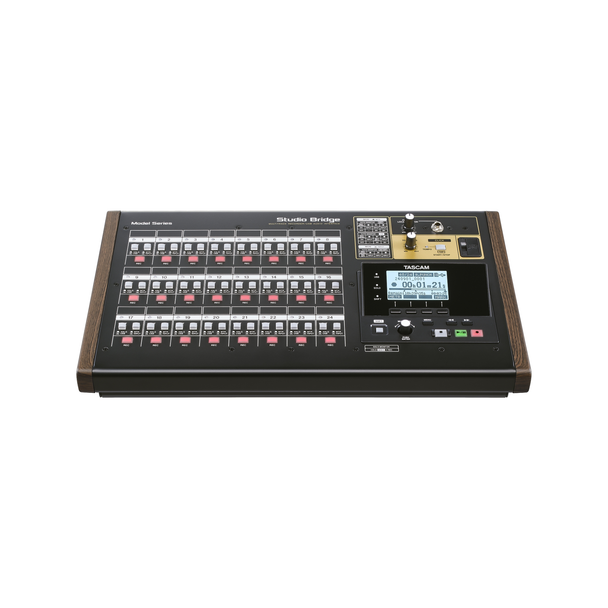

The Studio Bridge multitrack recorder is quite literally the bridge between analogue mixing and digital recording – regardless of whether you use a DAW or not. Preserve the lush analogue tone from your mixing console while recording tracks with the DAW of your choice or with Studio Bridge itself. Either way, tracks can be returned to your analogue console for mix summing, turning digital recordings into warm analogue productions.

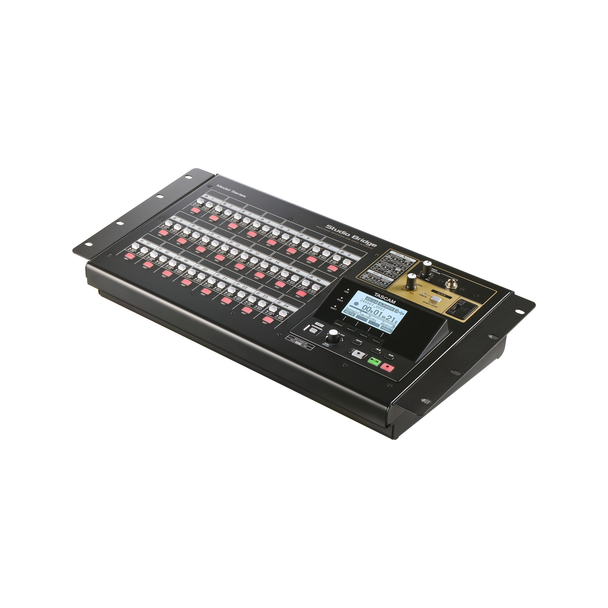

Whether you’re recording in a personal studio or in a live environment, the Tascam Studio Bridge serves as a link between your existing equipment, complementing it with the latest recording technology and ease of use in a rack-mountable format.
Specifications
| Recorder | |
|---|---|
| Recording media | SD (Class 10 or higher) SDHC (Class 10 or higher) SDXC (up to 512 GBytes, Class 10 or higher) |
| Recording/playback file format | WAV (BWF), 44.1/48 kHz, 16/24 bit |
| Recordable tracks | 24 |
| Audio inputs and outputs | |
|---|---|
| Line inputs (1–8, 9–16, 17–24) | 25-pin D-sub (DB-25), balanced |
| Fixing screw | Inch-type No.4-40 UNC |
| Maximum input level | +24 dBu |
| Nominal input level | +4 dBu |
| Input impedance | ≥10 kΩ |
| Line outputs (1–8, 9–16, 17–24) | 25-pin D-sub (DB-25), balanced |
| Fixing screw | Inch-type No.4-40 UNC |
| Maximum input level | +24 dBu |
| Nominal input level | +4 dBu |
| Input impedance | 200 Ω |
| Phones output | 6.3-mm stereo phone jack |
| Maximum output power | 80 mW + 80 mW (at 32 Ω) |
| Working impedance | 16–600 Ω |
| Control inputs/outputs | |
|---|---|
| USB port | USB Type-B |
| Protocol | USB 2.0 High Speed (480 Mbit/s) |
| Device class | Mass storage class USB audio class 2.0 |
| Click output | 6.3-mm standard TRS jack (pseudo-balanced) (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Footswitch connector | 6.3-mm TRS phone jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required) |
| MIDI input and output | 5-pin DIN connector |
| Format | Standard MIDI 1.0 |
| USB audio | |
|---|---|
| Sampling rate | 44.1 kHz, 48 kHz |
| Quantisation bit depth | 16 bit, 24 bit |
| Maximum number of audio channels | 24 input channels, 24 output channels |
| Audio performance | |
|---|---|
| Frequency response | 20 Hz to 20 kHz, +0.3/–0.7 dB |
| Dynamic range | ≥100 dB (22 kHz LPF, A-weighted) |
| Total harmonic distortion (THD+N) | ≤0.003 % (max. input level, 1 kHz) |
| Crosstalk attenuation | ≥100 dB (1 kHz BPF) |
| Computer system requirements | |
|---|---|
| Windows | Windows 11 Windows 10 (64-bit) |
| Compatible computers | Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs |
| Display requirements (settings panel software) | 1280 × 720 or higher, True colour recommended |
| Mac | macOS Sonoma (14) macOS Ventura (13) |
| Compatible computers | Apple Mac computer with a USB 2.0 (or higher) port |
| Display requirements (settings panel software) | 1280 × 720 or higher, True colour recommended |
| iOS/iPadOS devices | iOS 17 / iPadOS 17 iOS 16 / iPadOS 16 |
| Power supply and other specifications | |
|---|---|
| Power | AC 100–240 V, 50/60 Hz |
| Power consumption | 20 W |
| Dimensions (W × D × H) | 447 mm × 270 mm × 115 mm (overall) 415 mm × 270 mm × 115 mm (without side panels) |
| Weight | 4.5 kg |
| Guaranteed operating temperature range | 0–40 °C |
| Guaranteed operating humidity range | 5–85 % (without condensation) |
| Included items | AC power cord, Safety Guide, Registration Guide |
