Description

The TASCAM LA-80MKII converts eight unbalanced line-level sources to balanced outputs for professional audio systems. It provides an interface between RCA-equipped playback devices and downstream XLR equipment.

Features

Eight channels of unbalanced-to-balanced audio conversion

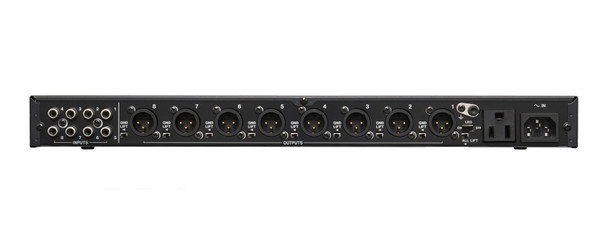

Eight RCA inputs and eight balanced XLR outputs
Per-channel trim adjustment over a +/-12 dB range
Signal-presence LED indicators
Individual and global ground-lift switches
Selectable +4 dBu or -20 dBu nominal balanced output level
1U rack-mount chassis

Why We Like This

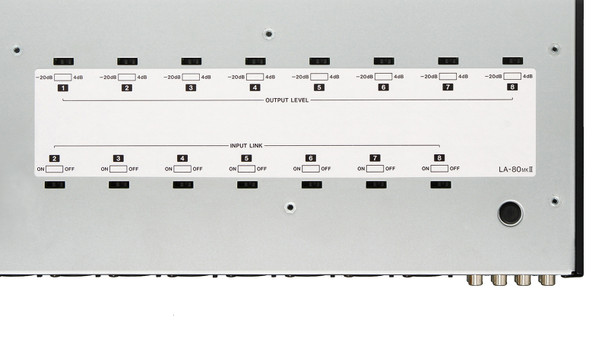

The configurable input links can feed one source to eight outputs or create two four-output groups, reducing the need for extra distribution equipment.

FAQs

Q: Does this model also convert balanced signals to unbalanced?
A: No. The LA-80MKII provides unbalanced RCA inputs and balanced XLR outputs. Its conversion direction is unbalanced to balanced.

Q: Can I adjust the level of each output?
A: Yes. Each channel has a trim control with a +/-12 dB adjustment range.

Q: What supply voltage is supported?
A: TASCAM specifies 100-240 V AC at 50/60 Hz and 6 W power consumption.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Manufacturer:	TASCAM
Model:	LA-80MKII
Product Type:	Unbalanced-to-balanced line-level converter
Specifications - Crosstalk:	-90dB or more (1kHs, nominal input and output level, terminated with a 600Ω load)
Specifications - Frequency response:	20 Hz – 100 kHz +/-3dB (nominal input and output level)
Specifications - Power:	AC 100-240V, 50/60Hz
Specifications - Power cunsumption:	6W
Specifications - S/N ratio:	90dB Nominal input and output level, 20 kHz LPF, A-WTD, OUTPUT LEVEL switch set to +4dBu
Specifications - Total harmonic distortion:	0.007% or less (1kHz, nominal input and output level)
UNBALANCE TO BALANCE - TRIMrange:	+/-12dB
UNBALANCE TO BALANCE / Input (unbalanced) - Connectors:	RCA pin jack x 8
UNBALANCE TO BALANCE / Input (unbalanced) - Indocator delection level (unbacanced input):	-38dBV or more (OUTPUT LEVEL switch set to +4dB to -20dB)
UNBALANCE TO BALANCE / Input (unbalanced) - Input Impedance:	23kΩ (all INPUT LINK switches are OFF) 2.8kΩ (all INPUT LINK switches are ON)
UNBALANCE TO BALANCE / Input (unbalanced) - Maximum input level:	+9dBV
UNBALANCE TO BALANCE / Input (unbalanced) - Nominal input level:	-10dBV +/-1dB
UNBALANCE TO BALANCE / Outputs(balanced) - Connectors:	XLR-3-32 equivalent x 8 (1:GND、2:HOT、3:COLD)
UNBALANCE TO BALANCE / Outputs(balanced) - Maximum output level:	+24dBu
UNBALANCE TO BALANCE / Outputs(balanced) - Minimum load impedance:	600Ω
UNBALANCE TO BALANCE / Outputs(balanced) - Nominal load impedance:	10kΩ
UNBALANCE TO BALANCE / Outputs(balanced) - Nominal output level:	+4dBu, +/-1dB (OUTPUT LEVEL switch set to＋4dBu) -20dBu, +/-1dB (OUTPUT LEVELswitch set to -20dBu)
UNBALANCE TO BALANCE / Outputs(balanced) - Output Impedance:	94Ω
