Description
Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.
The PCI Range is designed with the same exacting standards as our flagship hi-fi and professional loudspeakers.
Unlike other loudspeakers brands, Tannoy has a unique history of technological development and craftmanship. With over 90 years as a world leader in the pursuit of hi-fidelity sound, Tannoy has an unrivalled reputation for creating true reference loudspeakers trusted by the world’s highest profile professionals. During every step of the creative process from composition to recording, mixing and mastering to broadcast, artists around the world trust Tannoy loudspeakers to faithfully reproduce every music nuance with stunning accuracy.
Audiophiles trust Tannoy loudspeakers to authentically reproduce music exactly as the artist intended, with true to source accuracy and a design elegance that is equally pleasing to the ears and eyes. Carefully considered aesthetics, state of the art materials, quality and craftmanship seamlessly blend to create loudspeakers that will deliver reference sound to be enjoyed for many years to come.
Features
-
Premium, high-definition subwoofer for in-wall installation applications
-
Dual 8" woofers with rigid cones for clean, clear and dynamic bass
-
High-excursion and high power handling
-
Rigid diecast chassis for improved bass performance and durable application
-
200 Watts continuous, 800 Watts peak power
-

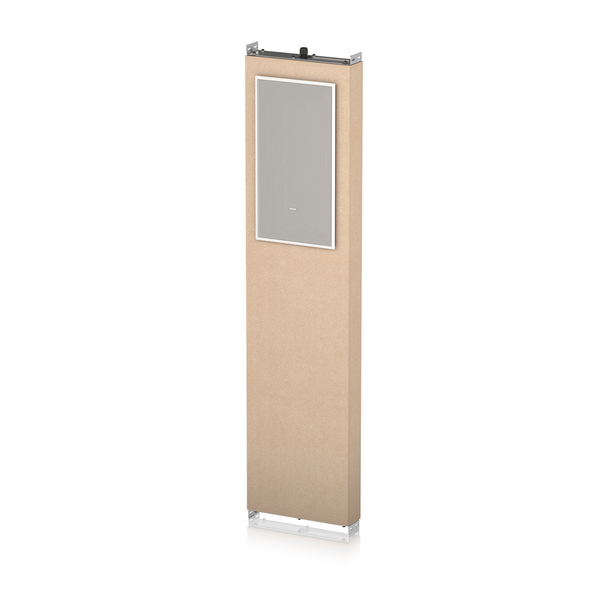

Extremely thin bezel for discreet installation, with wooden pre-install back can kit included
-
Integrated single unit chassis construction for easy installation
-
Semi matt white finish fits unobtrusively in any environment
-
Powder coated UV resistant perforated steel mesh grille with dust protection
-
Removable grille for custom painting
-
Self-aligning clamp mounting system
-
Removable Tannoy grille badge
-
Tannoy - around 100 years of British sound heritage and innovation
Specification
Performance
| Frequency response (±3 dB) |
100 Hz – 2 kHz |
| Frequency response (-10 dB) |
45 Hz – 2.3 kHz |
| Sensitivity (1 W @ 1m) |
90 dB |
Power Handling (IEC)
| Average |
200 W |
| Programme |
400 W |
| Peak |
800 W |
| Recommended amplifier power |
600 W @ 8 Ω |
| Nominal Impedance (Lo Z) |
8 Ω |
| Rated maximum SPL (1 m, Lo Z) |
116 dB |
| Average |
113 dB |
| Peak |
119 dB |
| Crossover point |
NA |
Transducers
| Low frequency diameter/material/type |
2 x 219 mm (8") |
Physical
| Back can |
BACK CAN PCI SUB IW Wood |
| Baffle |
Reflex loaded UL94 V-0 rated ABS |
| Grille |
Steel, with weather resistant coating |
| Clamping design |
Security toggle clamp |
| Connectors |
Phoenix Contact terminal block |
| Dimensions (H x W x D) |
1465 x 345 x 113 mm (57.7 x 13.6 x 4.5") |
| Bezel dimensions |
495.6 x 264.5 mm (19.5 x 10.4") |
| Mounting depth |
93.1 mm (3.7") |
| Hole cutout dimensions |
482,5 x 252,5 mm (19 x 9.94") |
| Net weight |
16.9 kg (37.2 lbs) |
| Packed quantity | |
| Included accessories |
PCI SUB IW: Grille, paint mask, cutout template. BACK CAN PCI SUB IW: washers (x12), screws (x12), bracket (x4), cable clamp. |
| Optional accessories |
PCI SUB IW and Back Can PCI SUB IW are also available separately |
