Description

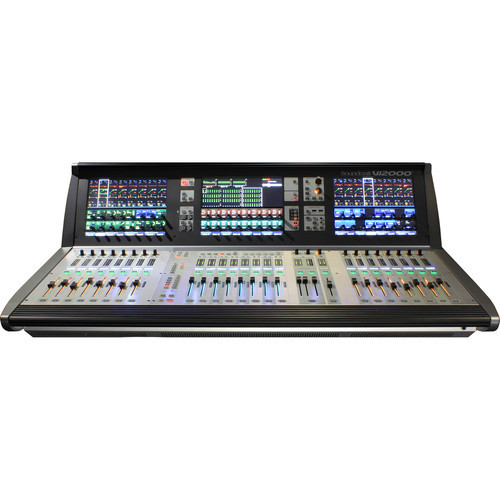

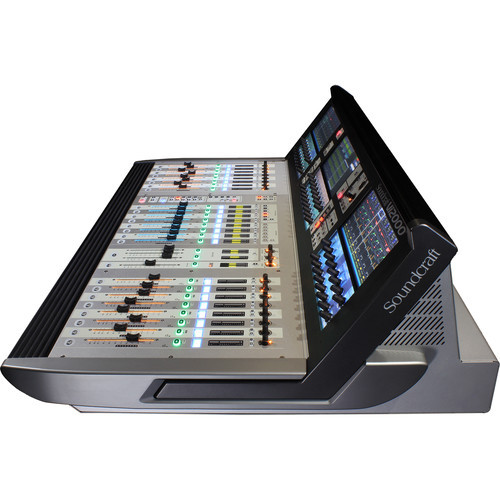

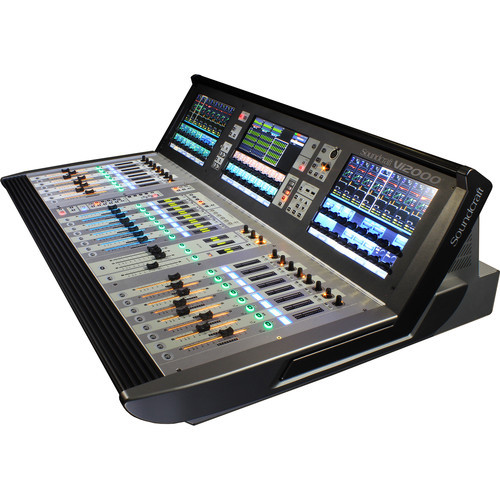

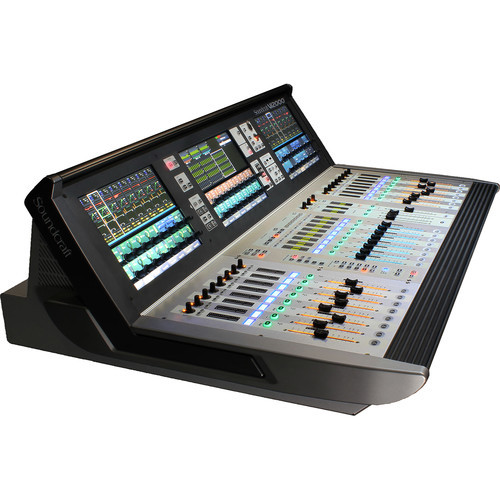

Buy Soundcraft Vi2000 Digital Mixing System featuring For Touring, Venues & A/V Installations, 28 Faders, 24 Mono/Stereo Busses, 3 Touchscreens, 2 Engineers Work at Once, FadeGlow Processing, MADI/Dante, Ethernet, USB, MIDI & DVI, SpiderCore 40-Bit Floating Point Engine, 4 Independent Stereo Multi-Effects, Optional Soundcraft Realtime Rack, Optional Stagebox Monitor.

Features

Supports efficient live-sound workflow management
Designed for professional production and installed-audio environments
Provides flexible control for complex mixes
Integrates into compatible Soundcraft digital-audio systems

Why We Like This

The Soundcraft 5056046 Vi2000 Digital Mixing System gives Soundcraft users a purpose-built option for compatible professional audio workflows while keeping system design and support straightforward.

FAQs

Q: What is the Soundcraft 5056046 Vi2000 Digital Mixing System?
A: It is a Soundcraft digital mixing system.

Q: What kind of mixer is the 5056046?
A: It is a Soundcraft digital mixing system for professional audio workflows.

Q: Where are the technical specifications for the 5056046?
A: The specs section contains the source-confirmed technical information and compatibility details available for this product.

Q: Should compatibility be checked before ordering?
A: Yes. Confirm the intended console, stagebox, rack, or networked-audio system before ordering.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Brand:	Soundcraft
Control Surface:	Input Faders: 16,Output Faders: 8 +3 (LRC Masters) +1 (Monitor A/B),Total Faders: 28,3D Vistonics Screens: 3 (2 Input, 1 Master),Fader Bay Operation: 4 x Fixed Input Layers A/B/C/D Giving 64 Inputs on 16 Faders,Input Channels Can Be Assigned to Maste
DSP Section:	Soundcraft SpiderCore,Processing: 40-Bit Floating Point, 48 kHz Sample Rate,Input Channels to Mix: 96 Mono Pairable to 48 Stereo,Busses - Aux/Grp: 24 Mono/Stereo,Busses - Matrix From 24 Bus Pool: Maximum 16 Mono/Stereo,Busses - Master: 3 (LRC),Assign
Digital:	AES/EBU Input Sample Rate: 32 to 108 kHz (with SRC Enabled),DSP Resolution: 40-Bit Floating Point,Internal Clock Accuracy: < +/- 50 ppm,Internal Clock Jitter: < +/- 2 ns,External Sync: BNC Wordclock

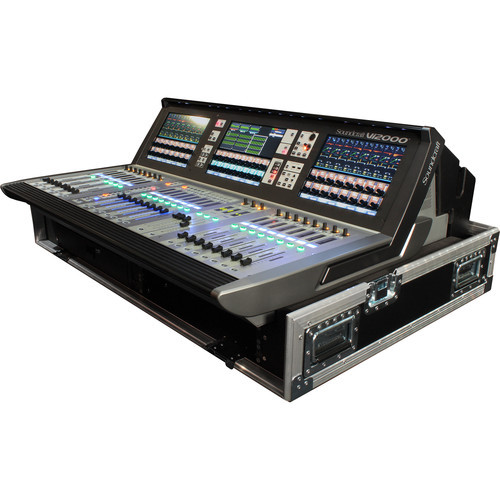

Dimensions:	Height (Console Only): 13.8-inch / 351 mm,Width (Console Only): 45.5-inch / 1155 mm,Depth (Console Only): 31.6-inch / 803 mm,Height (with Factory Flightcase): 44.1-inch / 1121 mm,Width (with Factory Flightcase): 48.9-inch / 1243 mm,Depth (with Factor
EQ Controls:	Stagebox HP Filter: 80 Hz Fixed, 12 dB per Octave,Channel HP Filter: 20 Hz to 600 Hz, 18 dB per Octave,Channel LP Filter: 1 kHz to 20 kHz, 18 dB per Octave,EQ (Inputs and Bus Outputs) - HF: 20 Hz to 20 kHz, ±18 dB, Q = 0.3 to 8.7 or Shelving,EQ (Inpu
External Ports:	Control,Ethernet: 1 (Dedicated HiQnet / Realtime Rack Control),MIDI: 1 In, 1 Out
Humidity:	0 to 90%, Non-condensing, Ta = 104°F / 40°C
Input and Output Impedance:	Mic Inputs: 2 Kilohms,All Other Analog Inputs: >10 Kilohms,Line Outputs: <75 Ohms,AES/EBU Outputs: 110 Ohms
Input/Output Connectors:	Mic/Line Inputs: 48, 32, or 16 Configurable (Maximum 3 x 16 Channel Out Cards of 4 Total),Last 5 Outs Default to Local Monitors but Can Be Repatched,AES/EBU Input: 2 (4 Channels ) Plus Optional 16 Channels via Vista1 Card (Remove 2 Mic or Line Out Ca
Levels:	Mic Inputs: +28 dBu Maximum,Line Inputs: +22 dBu Maximum,Line Outputs: +22 dBu Maximum,Nominal Operating Level: +4 dBu (-18 dBFS)
Manufacturer:	Soundcraft
Metering:	Internal 20-Segment LED Bar Graphs Plus 9-Segment Gain Reduction Meters for All Inputs and Outputs,Peak Hold Variable from 0 to 2 Seconds
Model:	5056046
Operating Temperature:	32 to 113°F / 0 to 45°C
Oscillator:	20 Hz to 20 kHz, Pink/White Noise, Variable Level

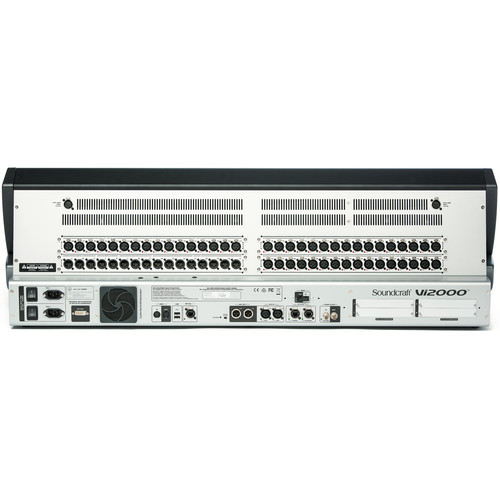

Other Ports:	Mains Input: 2, Switched (Redundant Power Supplies Built In),USB 2.0: 4 (2 Front, 2 Rear),Wordclock: In/Out 2 x BNC,DVI Out Reserved for Future Use,2 x Gooseneck Lamp 4-Pin XLR for Rear Panel Illumination
Power:	Mains Power Consumption: 250 W
Product Type:	Digital Mixing System
SKU:	5056046
Stagebox:	Optional, via MADI Optical or Cat 5 Option Cards Fitted to D21m Expansion Slots. Can Connect up to 2 x 64-Channel Vi Stageboxes. Also Compatible with Compact Stagebox and Mini Stagebox,Frequency Response, Stagebox Mic Input to Line Output: 20 Hz to 2
Storage Temperature:	-4 to 140°F / -20 to 60°C
