Description

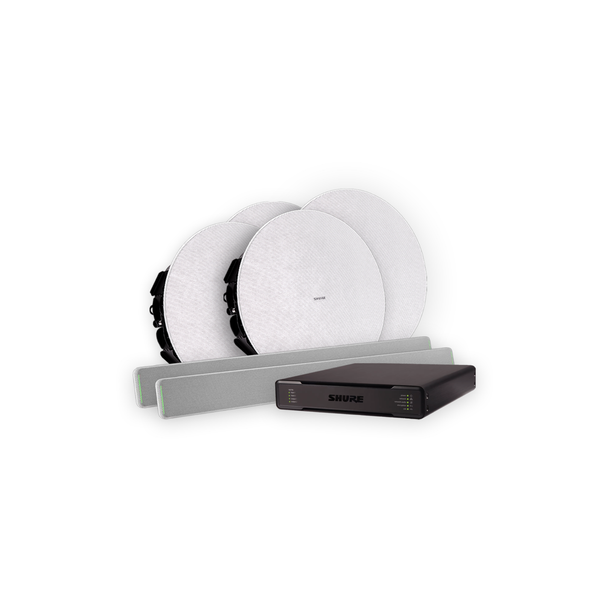

ECOSYSTEM BUNDLE 712X: (2) MXA710-2FT, (1) P300-IMX , (4) MXN5W-C + Tile Bridge
Elevate your audio experience with the Shure 712X W-V Ecosystem Speaker Package, designed for seamless integration into professional spaces. This powerful bundle includes two MXA710-2FT Linear Array Microphones, delivering clear, focused voice capture for conferences or events. Paired with the P300-IMX Audio Processor, it ensures advanced DSP processing, including echo cancellation and noise reduction, for crystal-clear communication. The package is completed with four MXN5W-C Ceiling Loudspeakers and matching tile bridges, offering exceptional sound quality and easy installation in any space.
This Speaker Package Includes,
- 2 Shure MXA710W-2FT, 2 Feet Microflex Advance Linear Array Microphone - White
- 1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
- 4 Shure MXN5W-C Networked Ceiling Loudspeaker
- 4 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex
2 Shure MXA710W-2FT, 2 Feet Microflex Advance Linear Array Microphone - White
The Shure MXA710W-2FT, 2 Feet Microflex Advance Linear Array Microphone with a white finish and a sleek design that's well suited to today's modern workspaces, the 2' Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.
- This 2' version of the MXA710 uses Steerable Coverage to optimize pickup from 50 built-in MEMS microphones over 4 lobes combined with onboard IntelliMix digital signal processing to capture every voice clearly and intelligibly.
- IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control.
- Autofocus technology fine-tunes each lobe position in real time, even if meeting participants lean back or stand up.
- A single cable supplies power (PoE) and transfers data; Dante and AES67 audio networking protocols are supported.
- The default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations.
- The microphone delivers intuitive, programming-free LED mute sync functionality with leading third-party software codecs solutions including Zoom Rooms, Microsoft Teams, Cisco, and Skype for Business when connected to the IntelliMix P300 or ANIUSB-MATRIX Audio Network Interface (both available separately).
- Offering unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides premium audio capture at scale that’s easier than ever to configure with Shure Designer software.
- Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces (both available separately), which utilize AES-256 encryption to protect confidential content.
- Shure Designer System Configuration software provides easy setup and configuration for larger rooms.
- SystemOn Audio Asset Management software allows for remote management and troubleshooting.
- Wide variety of available installation accessories for flexible mounting
- Wall mount: horizontal or vertical orientation, either on or flush to wall surface
- Ceiling mount: on ceiling, suspended, or flush
- Table: flush with table surface
- A710-DS desktop stand for placement on credenza or shelf (available separately)
- A710-MSA mic stand adapter for use with microphone stand (available separately)
- Dante Domain Manager / Device Lock compatible
- UL 2043 plenum rated and IP5X rated
- Dual LED status bars with configurable colors and brightness
- MXA310 Table Array Microphone
- MXA920 Ceiling Array Microphone
- MXA901 Conferencing Ceiling Array Microphone
- MXA902 Ceiling Array Microphone and Loudspeaker

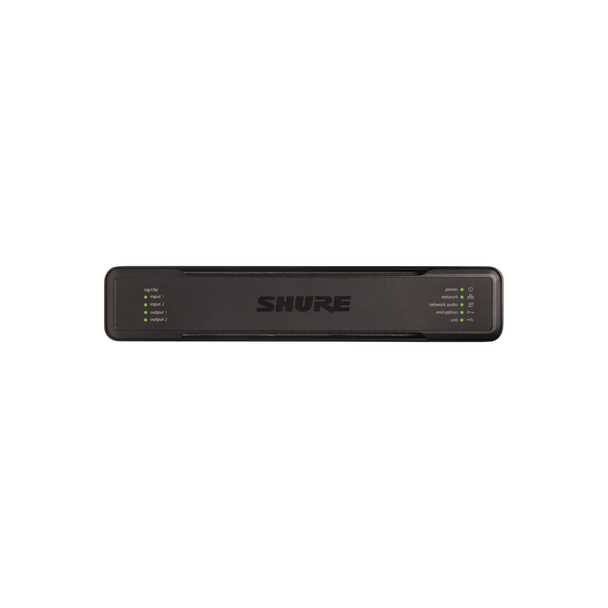

The Shure P300 IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.

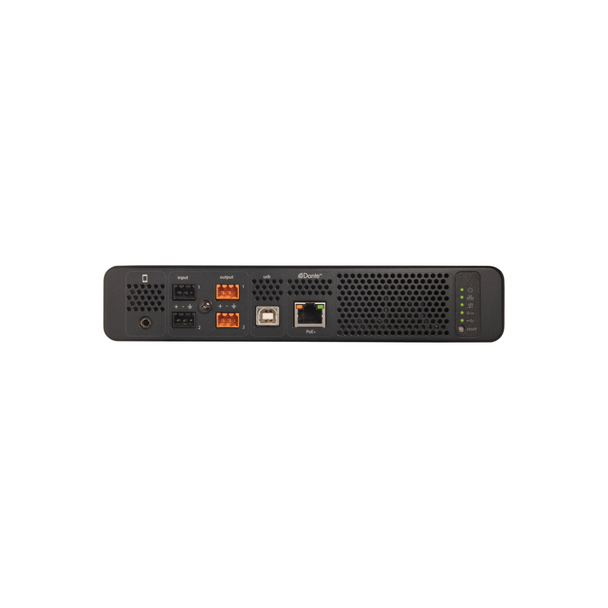

The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.
- Compatible with Dante Domain Manager / Device Lock
- Discretely mounts underneath a table or behind a display
- Versatile connectivity and powerful DSP for AV conferencing
- Easily setup and deploy settings with Designer System Configuration Software
- Monitor and manage with SystemOn Audio Asset Management software
- PoE+ powered eliminates the need for an outboard power supply

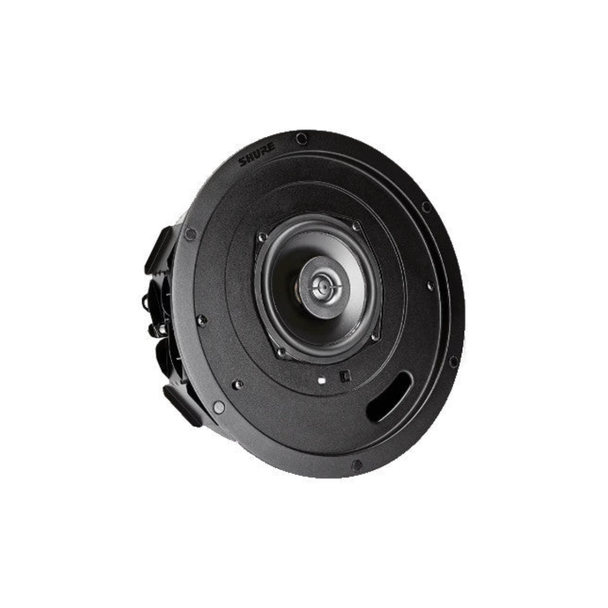

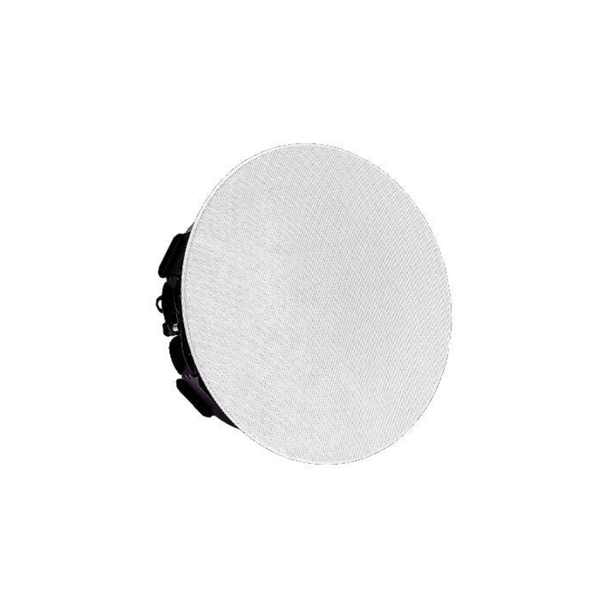

The Shure Microflex MXN5-C Networked Ceiling Loudspeaker is a discreet conference speaker designed to be permanently installed in a boardroom or conference space ceiling. A single cable provides power (PoE and PoE+) and carries encrypted audio and control data, providing high-quality speech reproduction for AV conferencing applications in a low-profile design optimized for easy installation in drop ceiling configurations. The MXN5-C integrates seamlessly with other Shure-networked, PoE-enabled audio devices using the Dante audio networking protocol.
The active loudspeaker includes a built-in amplifier and uses a 2-way driver with a 5.25" woofer tuned to deliver clear, intelligible speech over a 120 Hz to 20 kHz range, while a set of integrated computer-controlled DSP functions help to ensure ideas are properly communicated and meetings are productive.
- Software-based configuration and control
- Design and deploy every device in your audio chain with Shure Designer System Configuration software
- SystemOn Audio Asset Management software for remote management and troubleshooting
- Shure Audio Encryption
- Dante Domain Manager compatible
- AES67 compatible
- Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
- Low-profile, shallow-can design compatible with most drop ceiling installations
- 2-way driver system with 5.25" woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output
- Aesthetic design subtly blends into drop ceiling environment
- Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
- Removable magnetic Shure logo
- UL 2043 plenum rated
- A-MXN5-TB Tile Bridge or A-MXN5-NCB New Construction Bracket accessories (both available separately) provide quick and easy mounting
The Shure A-MXN5-TB is a tile bridge that allows for quick and easy installation of the MXN5-C Networked Loudspeaker in a drop ceiling.
