Description

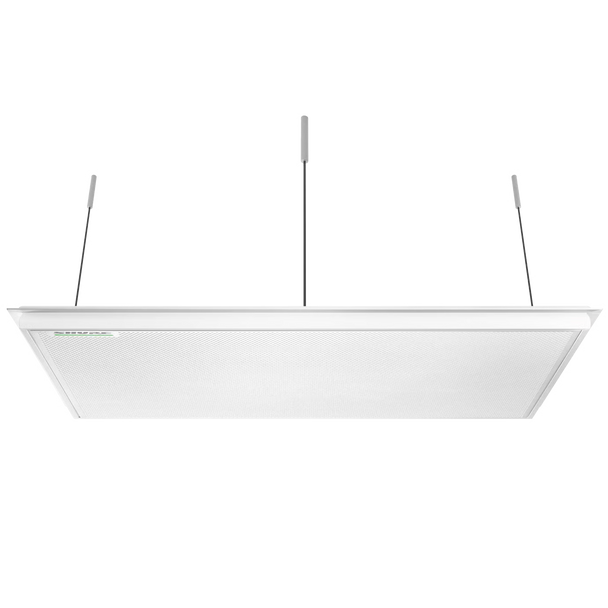

The Shure MXA920W-S Ceiling Array Microphone delivers advanced AV conferencing and sound reinforcement performance with Automatic Coverage™ technology and next-generation array architecture for enhanced directional pickup and natural speech clarity. Featuring a sleek 24-inch square white form factor, onboard IntelliMix® DSP, and flexible coverage configuration, the MXA920W-S is ideal for conference rooms, hybrid collaboration spaces, camera tracking systems, and professional installed audio environments.
Features
- 24" square ceiling array microphone
- White finish with paintable surface
- Automatic Coverage™ technology with up to 8 adjustable coverage areas
- Steerable Coverage™ technology with 8 configurable pickup lobes
- Virtual Acoustic Boundary for advanced noise isolation
- Built-in IntelliMix® DSP processing
- Acoustic Echo Cancellation and Noise Reduction
- Automatic mixing and automatic gain control
- Dante/AES67 digital audio networking
- LED status bar with configurable colors and brightness
Why We Like This
The MXA920W-S combines elegant architectural styling with sophisticated beamforming microphone technology for premium conferencing and sound reinforcement applications. Automatic Coverage™ technology simplifies deployment while still allowing advanced customization for complex room layouts and voice lift systems.
FAQs
Q: What is Automatic Coverage™ technology?
A: Automatic Coverage™ technology automatically captures talkers in up to eight adjustable room coverage areas without requiring manual lobe aiming.
Q: How large of an area can the MXA920W-S cover?
A: The MXA920W-S can cover up to a 30 x 30 ft (9 x 9 m) seating area out of the box depending on room acoustics.
Q: Can the MXA920W-S be used for voice lift applications?
A: Yes, Steerable Coverage™ technology allows precise configuration of eight pickup lobes with individual outputs for voice lift and sound reinforcement systems.
Q: Does the MXA920W-S include onboard DSP processing?
A: Yes, onboard IntelliMix® DSP includes Acoustic Echo Cancellation, Noise Reduction, Automatic Mixing, and Automatic Gain Control.
Q: What networking protocols does the microphone support?
A: The MXA920W-S supports Dante and AES67 digital audio networking over a single cable carrying audio, PoE power, and control signals.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Product Type: |
Ceiling Array Microphone |
Series: |
Microflex Advance |
Model: |
MXA920W-S |
Form Factor: |
Square |
Size: |
24 inch |
Color: |
White |
Coverage Technology: |
Automatic Coverage,Steerable Coverage |
Coverage Areas: |
Up to 8 Adjustable Coverage Areas |
Coverage Range: |
Up to 30 x 30 ft / 9 x 9 m |
Pickup Lobes: |
8 Configurable Pickup Lobes |
Boundary Technology: |
Virtual Acoustic Boundary |
DSP Features: |
IntelliMix DSP,Acoustic Echo Cancellation,Noise Reduction,Automatic Mixing,Automatic Gain Control |
Audio Networking: |
Dante,AES67 |
Connectivity: |
Single Cable for Audio, PoE Power, and Control |
LED Indicators: |
Configurable LED Status Bar |
Platform Compatibility: |
Microsoft Teams Certified,Popular Collaboration Platforms |
Security Features: |
802.1x Authentication,AES Encryption,Secure Boot,Secure Storage |
Software Compatibility: |
Shure Designer |
Integration Compatibility: |
Third-Party Camera Systems,Room Control Systems,Microflex Ecosystem Devices |
Applications: |
AV Conferencing,Hybrid Collaboration Spaces,Voice Lift Systems,Sound Reinforcement,Conference Rooms |
