Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier)

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) box includes

• Clip
• Metal Windscreen
• Limited 2-Year Warranty
• Limited 2-Year Warranty
• BA 20 Energy Pack
• XLR to 1/8" (3.5 mm) DSLR Adapter Cable
• Light Shoe Mount
• Belt Clip
• USB Cable
• USB Charger
• Limited 2-Year Warranty

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) overview

Designed for plug and record operation with fully self-configuring digital operation, the AVX Camera-Mountable Lavalier Digital Wireless Set from Sennheiser is well suited for film and video production, as well as electronic news gathering (ENG) and A/V rental houses. The system consists of the EKP receiver, SK bodypack transmitter, and an ME2 lavalier microphone. The AVX system provides a variety of automatic functionality aimed at flexibility and speed including auto-dynamic range settings, which automatically adjusts the audio level to a recording device's input sensitivity, reducing distortion and eliminating the need to adjust your mic's level. The system also offers link protection, a feature that quickly scans available frequencies and will automatically switch before any interference becomes audible.

The Sennheiser ME 2 is an omnidirectional, sub-miniature clip-on lavalier microphone designed for speech and vocal applications. It can be used with the Evolution and AVX Series wireless transmitters.

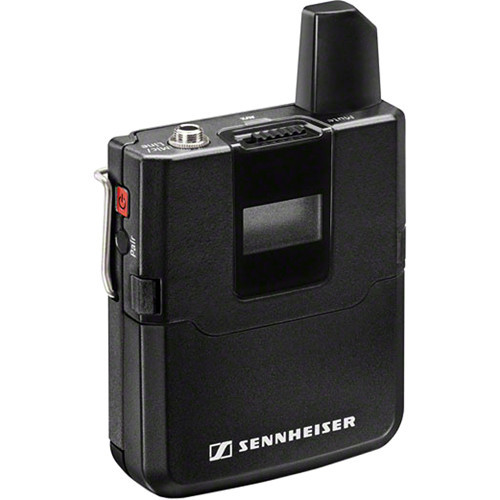

Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) features an innovative design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.

The bodypack transmitter features a 3.5mm jack and accepts either a microphone with a maximum input of 2.2V RMS (50 to 20,000 Hz response) or a line level source with a maximum input of 3.3V RMS (20 to 20,000 Hz response) for a wide variety of sources. The unit is powered by an optional Li-ion 3.7V battery and has an operating time of 15 hours.

Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX EKP Camera Plug-On Digital Wireless Receiver features an innovative pivoting design for attaching to a video camera's XLR microphone input without getting in the way of other camera accessories. The receiver rotates both clockwise and counter clockwise. It will click into place as opposed to a tension based design.

The digital receiver is fully self-configuring which makes setup fast and easy, while the system's link protection helps ensure reliable audio transmission. The unit will switch on and off automatically with the +48V phantom power from the camera to save battery power. It will automatically match the camera's input sensitivity without having to adjust the audio level on the wireless microphone.

The receiver comes equipped with a set of accessories for operation with DSLR cameras including a BA 20 Energy Pack, a light shoe mount, an XLR to 3.5mm adapter for use with DSLRs, a belt clip, a USB cable, and a USB charger.

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) key freatures

• 1/8" (3.5mm) mini-jack
• Works with the 100, 300 and 500 Evolution Series, as well as AVX Series wireless bodypack transmitters
• Warm, clear and robust broadcast-quality sound reproduction

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) specifications

• Transducer: Electret Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 30 Hz - 20 kHz
• Sensitivity: 20 mV/Pa (in free field, no load @ 1 kHz)
• Equivalent Noise Level: 36 dB
• Maximum Sound Pressure Level (SPL): 130 dB (passive)
• Power Requirements: Phantom Power Provided by Wireless Transmitter
• Operating Voltage: 7.5 V (stand alone)
• Output Connector: 1/8" (3.5 mm) Mini-Jack (Unbalanced)
• Applications: Speakers, Hands-free vocals, broadcast, live performance, wireless videography, etc.
• Cable Length: 5.25' (1.6 m)
• Dimensions: Not Specified by Manufacturer
• Weight: Not Specified by Manufacturer

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) Packaging Info

• Box Dimensions (LxWxH): 3.2 x 2.6 x 0.4"

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) System

• Frequency Response: 20 to 20,000 Hz
• Dynamic Range: > 120 dB (A)
• THD: Typical 0.1%
• Audio Sampling: 24-bit at 48 kHz
• Signal to Noise Ratio: > 90 dB (A)
• RF Frequency Range: 1880 to 1930 MHz (country specific)
• Modulation: GFSK with return channel
• Diversity: TDMA fast switching antenna diversity
• Latency: 19 ms
• Temperature Range: Operation: 14 to 131° F (-10 to +55° C)Storage: -4 to 158°F (-20 to +70°C)

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) Transmitter

• Transmission Power: 100 mW average (250 mW peak), country specific
• Frequency Response: Mic: 50 to 20,000 Hz Line: 20 to 20,000 Hz
• Microphone Max Input Level: Mic: 2.2 V RMS
• Line Max Input Level: 3.3 V RMS
• Input Impedance: 1 MOhm
• Input Sensitivity: Automatic sensitivity adjustment
• Power Supply: Optional Battery: Li-ion 3.7 V
• Operating Time: Typical: 15 hour with Energy pack
• Input Connector: 1/8" (3.5 mm) jack
• Weight: 3.1 ounces (87.0 g) excluding energy pack

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) Packaging Info

• Box Dimensions (LxWxH): 13.8 x 3.3 x 2.7"

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) System

• Frequency Response: 20 to 20,000 Hz
• Dynamic Range: > 120 dB (A)
• THD: Typical 0.1%
• Audio Sampling: 24-bit at 48 kHz
• Signal to Noise Ratio: > 90 dB (A)
• RF Frequency Range: 1880 to 1930 MHz (country specific)
• Modulation: GFSK with return channel
• Diversity: TDMA fast switching antenna diversity
• Latency: 19 ms
• Temperature Range: Operation: 14 to 131° F (-10 to +55° C)Storage: -4 to 158°F (-20 to +70°C)

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) Receiver

• RF Sensitivity:
• Transmission Power: Typical 15 dBm e.i.r.p.
• Audio Output: XLR male, balanced
• Audio Output Level: -30 dBu to 0 dBu in 4 steps
• Power Supply: BA 20 (Li-ION 3.7 VDC), alternative USB
• Operation Time: > 4 hours
• Weight: 3 oz (85 g)

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2 Lavalier) Packaging Info

• Box Dimensions (LxWxH): 12.7 x 6.7 x 2.9"
