Description

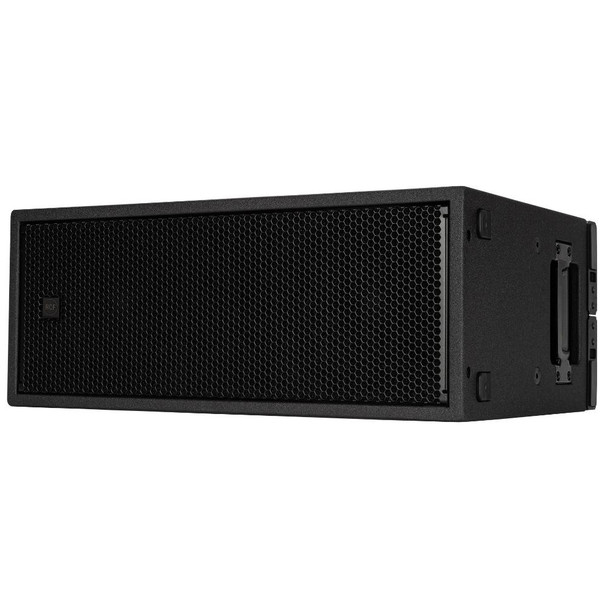

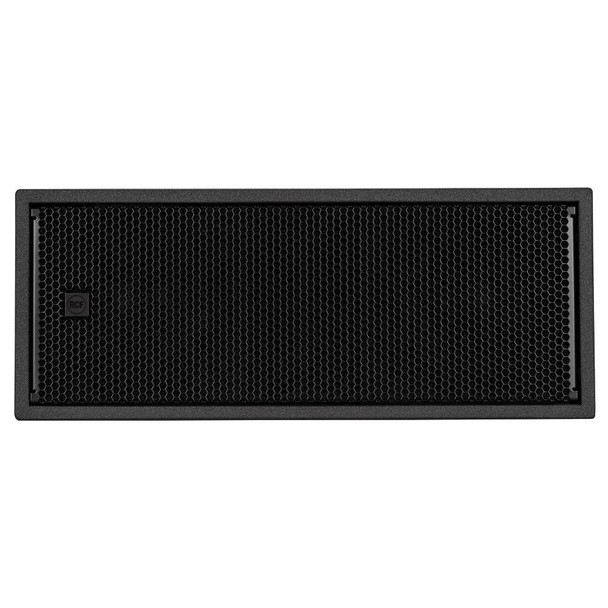

SUB 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8” cone woofers powered by a 2000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black or white polyurea and weatherproof treatment. Management and tuning are available via RDNet software. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. SUB 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for KX 515-A speaker.
Features
- 129 dB max SPL
- 40 Hz to 400 Hz frequency range
- 2 x 8’’ neodymium woofers, 2.5’’ v.c.
- 2000 W Class-D Amplifier
- RDNet Networked Management
- Bass Motion Control excursion management
- powerCON TRUE1 TOP mains connectors

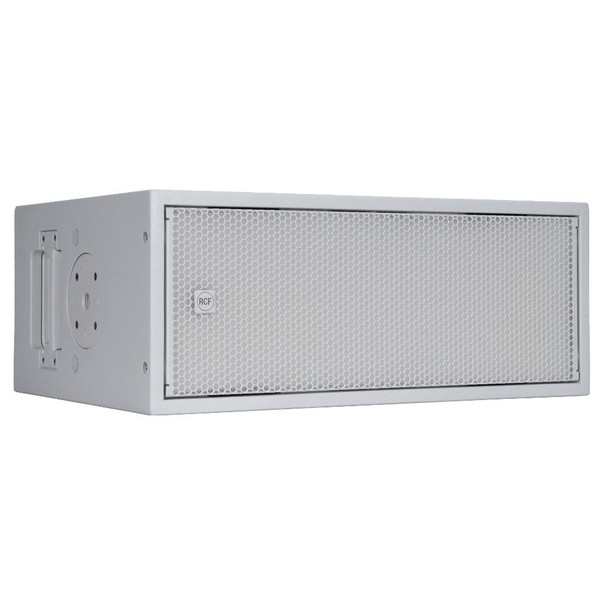

- Available in full black or white coating
Why We Like This
It delivers impressive low-end performance in a compact footprint, making it perfect for tight setups, installations, and modern portable systems.
FAQs
Q: What makes this subwoofer unique?
Its dual 8" design provides tight, punchy bass while keeping the cabinet compact and easy to place.
Q: Can it be used in different orientations?

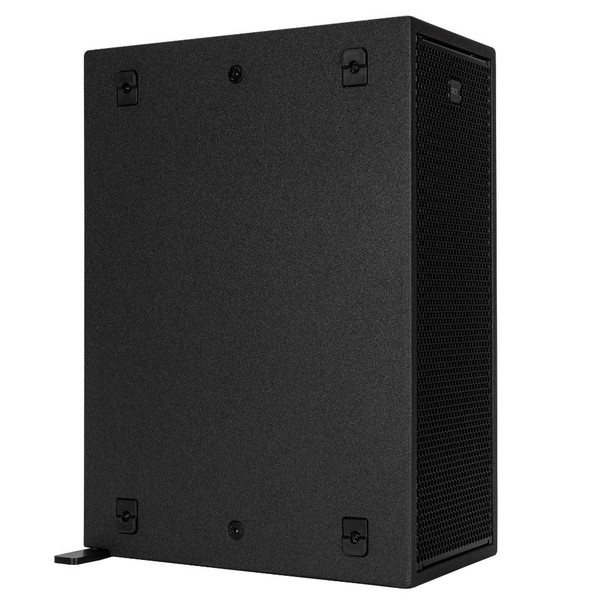

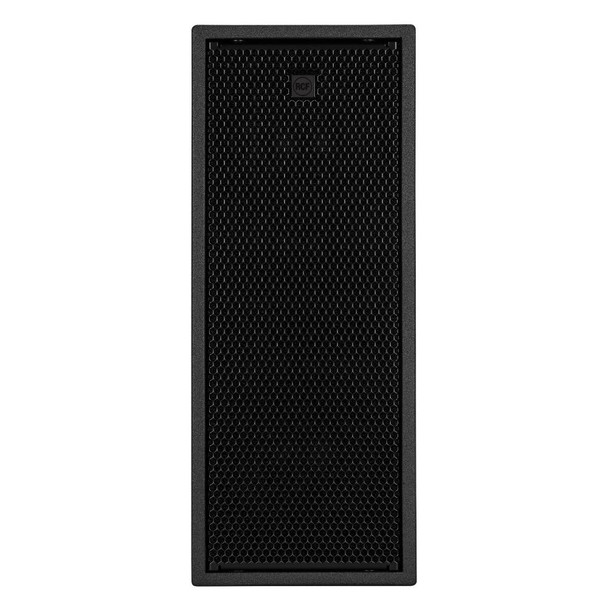

Yes. It supports both horizontal and vertical placement.
Q: Does it support system control?
Yes. RDNet allows real-time monitoring and tuning.
Based in Chicago, IL, Gear Club Direct supports DJs, installers, and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Speaker Type: |
Active Subwoofer |
Enclosure Type: |
Bass-Reflex |
Total Output Power: |
2000 W Peak |
Amplifier Class: |
Class-D |
LF Driver: |
8x 8" / 20.3 cm Woofer Voice Coil: 2.5" / 63.5 mm |
Frequency Range/Response: |
40 Hz to 400 Hz |
Maximum SPL: |
129 dB |
Protections: |
RMS, Thermal |
EQ & Filters: |
Preset EQ Curves |
Dynamic Processing: |
Soft Limiter |
Alignment Delay: |
Yes: Delay Time/Distance is Unspecified |
Digital Signal Processing: |
Venue Settings, Delay |

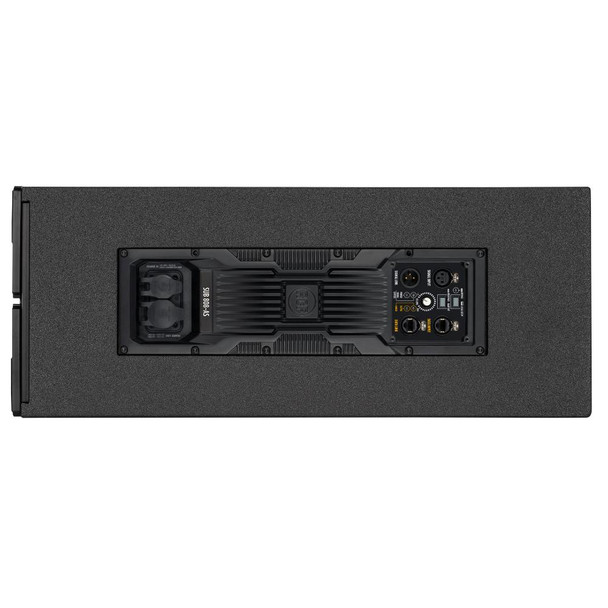

Audio I/O: |
1x XLR 3-Pin Line Input 1x XLR 3-Pin Link Output |
Network I/O: |
2x etherCON/RJ45 (RDNet) |
USB I/O: |
No |
Wireless: |
No |
Mobile App Compatible: |
Yes: Android & iOS App Name: RDTap Functionality: Firmware Update, Setup, Adjust Settings |
AC Input Power: |
100 to 240 VAC, 50 / 60 Hz |
AC Power I/O: |
1x powerCON Input 1x powerCON Output |
Power Consumption: |
300 W |
Mounting: |
2 x M20-Threaded Pole Socket (Side, Top) |
Dimensions: |
9.59" x 23.7" x 16.93" |
