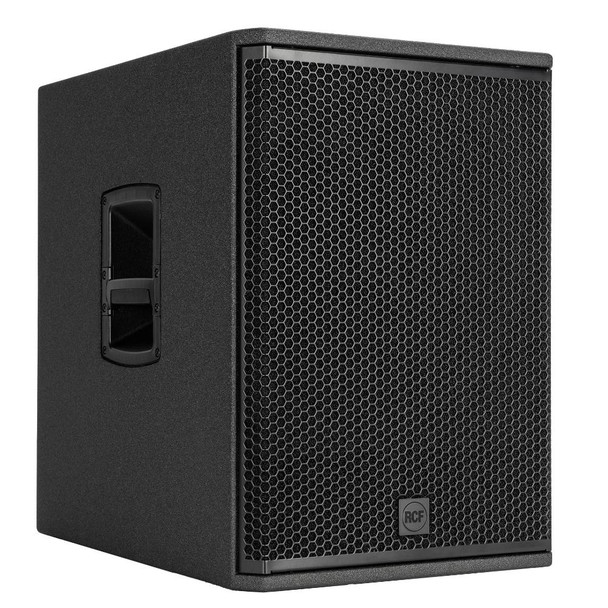

RCF SUB 705-AS MK3 15" Subwoofer

Description
Tech Specs
Delivery & Returns

Description

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

Power That Moves

RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:

- X-OVER PRESET 80Hz/120Hz
- POLARITY REVERSE
- OUT SIGNAL, LINE / HIGH PASS

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Tour-Ready Workhorse

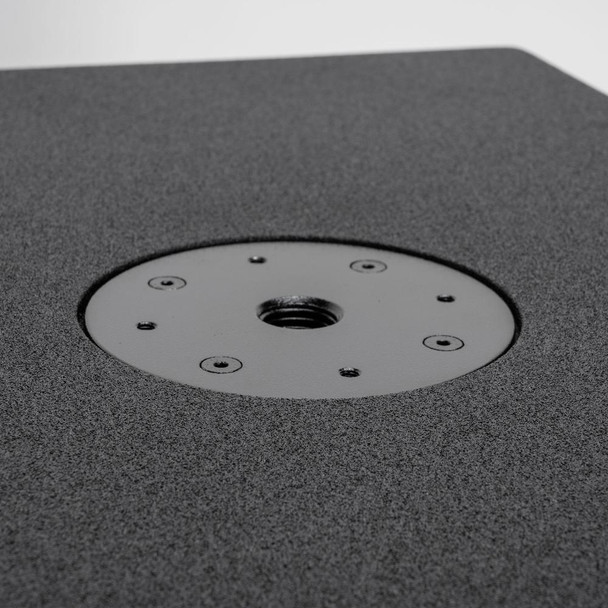

The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.

Features

1400 Watt Class-D Amplifier
15” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

Why We Like This

The 15" woofer combined with Bass Motion Control delivers strong low-frequency output with controlled performance. The built-in crossover and flexible controls make it easy to integrate into different PA systems.

FAQs

Q: What speakers pair well with this subwoofer?
It is designed to complement 10" or 12" full-range speakers.

Q: Does it include a built-in crossover?
Yes. It features selectable crossover presets (80Hz / 120Hz).

Q: Can I mount a speaker on top of the subwoofer?
Yes. It includes an M20 threaded pole mount for speaker mounting.

Based in Chicago, IL, Gear Club Direct supports DJs, musicians, and audio professionals every day with reliable gear and knowledgeable service you can trust.

Tech Specs

Speaker Type:	Active Subwoofer
Enclosure Type:	Bass-Reflex
Total Output Power:	700 W RMS / 1400 W Peak
Amplifier Class:	Class-D
LF Driver:	1x 15" / 38 cm Inverted Woofer Voice Coil: 3" / 76.2 mm
Frequency Range/Response:	40 Hz to 120 Hz
Maximum SPL:	131 dB
AC Input Power:	100 to 120 VAC, 50 / 60 Hz 220 to 240 VAC, 50 / 60 Hz
AC Power I/O:	1x IEC Input
Mounting:	1 x 1.38" / 35 mm Pole Socket (Top)
Handles:	2x Side
Dimensions:	23.5 x 23.2 x 16.4" / 59.7 x 58.9 x 41.7 cm
Weight:	60.6 lb / 27.5 kg
