Description

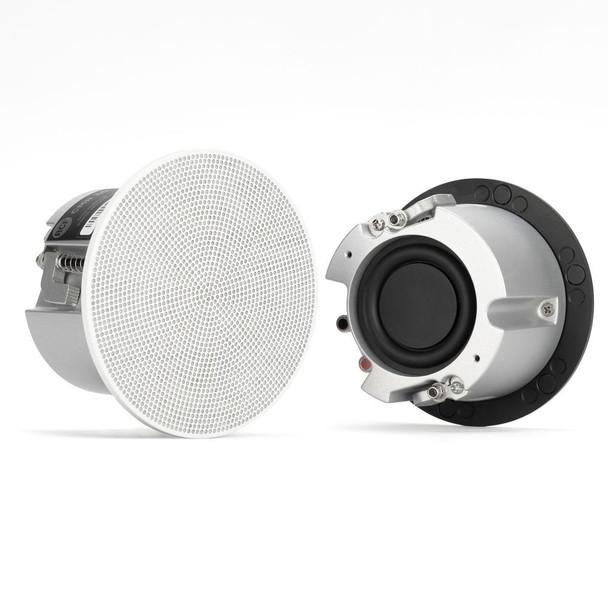

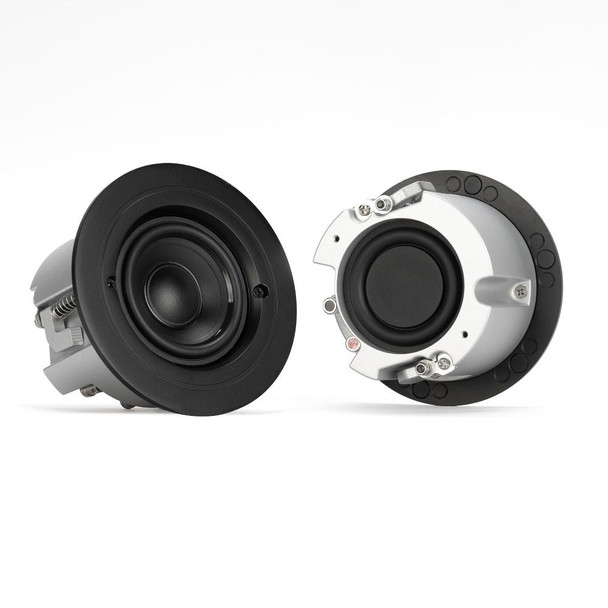

CMR 30 is a full-range, in-ceiling speaker designed to meet a wide variety of needs, from delivering clear background music in retail spaces to ensuring intelligible speech in meeting rooms. Thanks to its elegant, discreet design and accurate details, this multipurpose speaker effortlessly pairs with any building’s aesthetic. The high-quality transducer guarantees precise reproduction across the entire frequency band and provides impressive sound pressure levels for such a compact loudspeaker. Additionally, the bottom passive radiator enhances low frequencies, making it ideal for music playback. Installation is straightforward using two clamps, and the magnetic grille—supplied in both white and black— offers a seamless finish.
Features
- 15W RMS power handling
- 104 dB max SPL
- 70 ÷ 20000 Hz frequency range
- Omnidirectional directivity

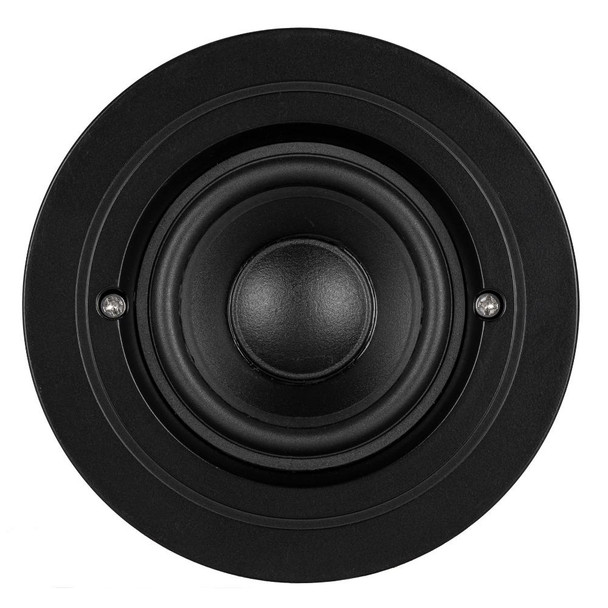

- 2.5" full range transducer
- Passive radiator for low frequencies emphasis
- Aluminum body

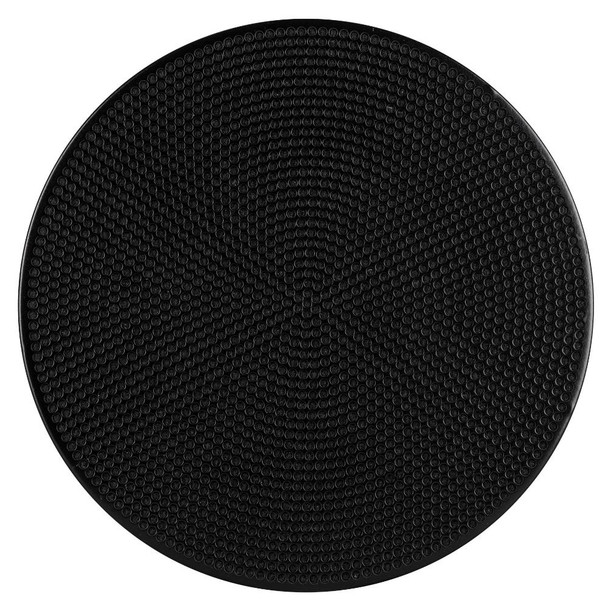

- 2 stainless steel magnetic grilles included
- White - RAL 9003 and Black - RAL 9005

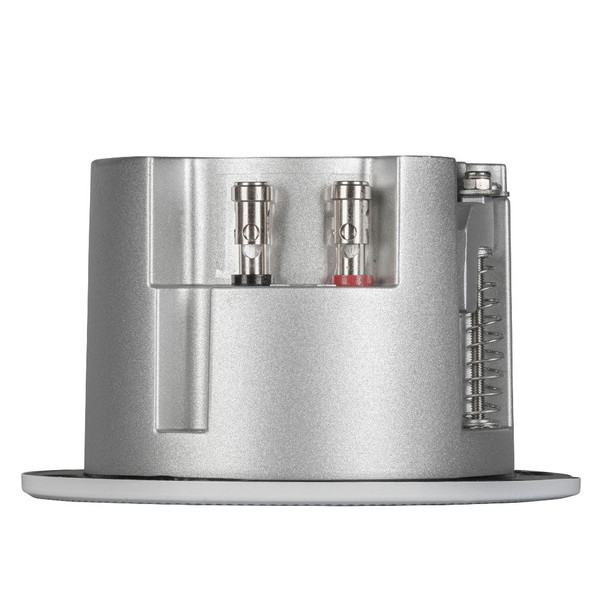

- Connection on push type terminals
Why We Like This
The passive radiator and dual grille options make it a standout choice for installations where both sound quality and aesthetics matter.
FAQs
Q: Is this speaker suitable for music playback?
Yes. The passive radiator enhances low frequencies, making it great for background music.
Q: Does it include multiple grille options?
Yes. Both white and black magnetic grilles are included.

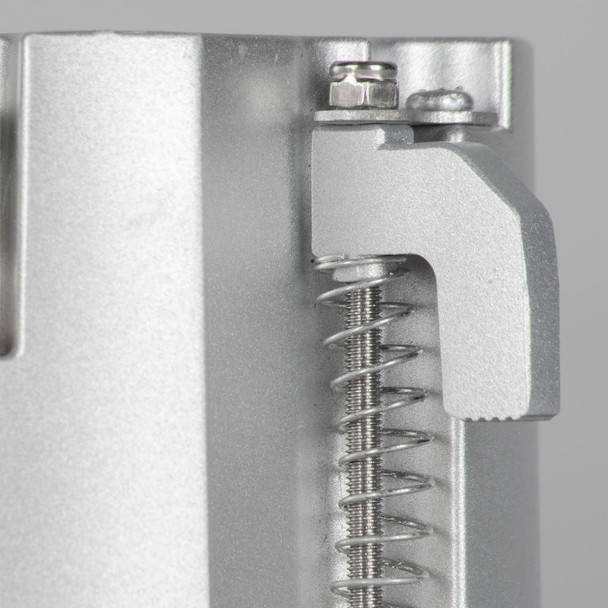

Q: Is installation complicated?
No. It uses a simple clamp system and push terminals for quick installation.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
70 Hz - 20000 Hz |
Max SPL @ 1m: |
104 dB |
Coverage angle: |
130° |
System Sensitivity: |
86 dB |
Amplification: |
Full Range |
Nominal Impedance: |
16 ohm |
Power Handling: |
15 W RMS |
Peak Power Handling: |
60 W PEAK |
Recommended Amplifiers: |
DMA 504, DMA 162, DMA 82, DMA 162P |
Woofer: |
1 x 2.5'' neo, 1.0'' v.c |
Cabinet/Case Material: |
Aluminum |
Grille: |
Stainless Steel |
Dimensions: |
2.68" x 2.4" x 4.29" |
Weight: |
0.82 lbs |
