Description

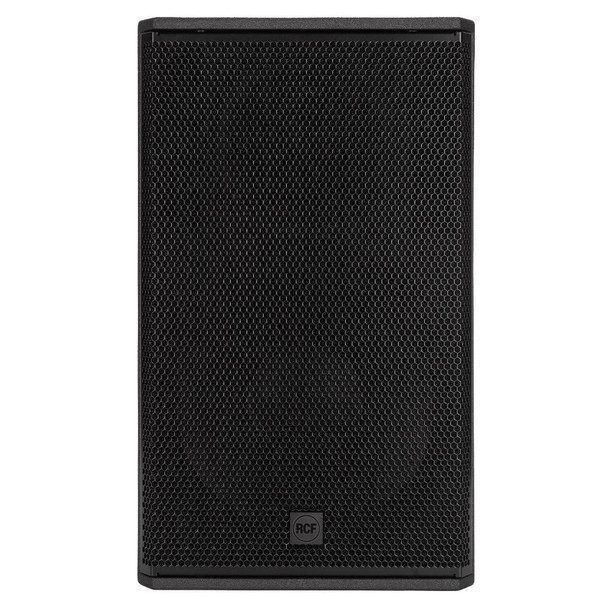

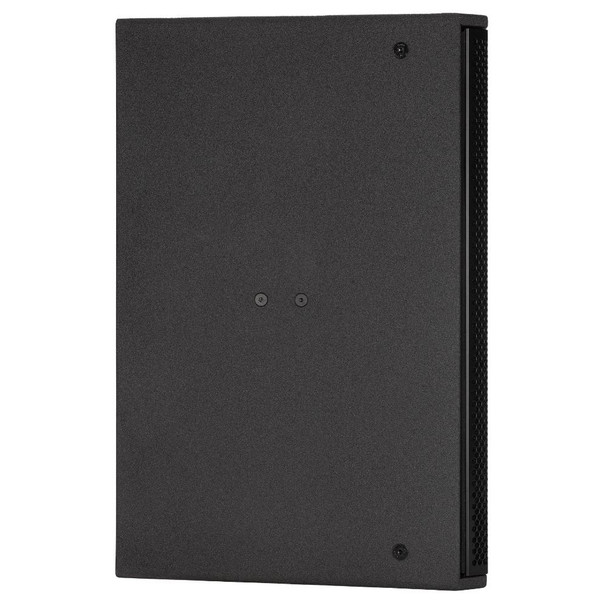

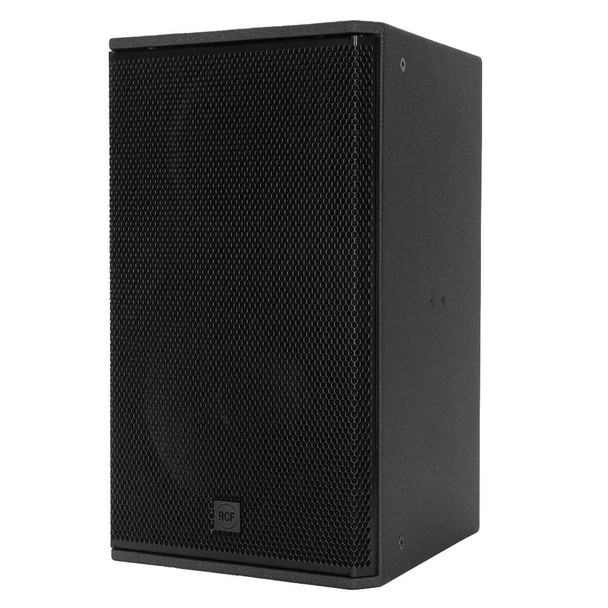

COMPACT C 45 is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 4" neodymium compression driver, a 15" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation. EN 54-24:2008 technical data available in the user manual.
Features
- 700 W power handling (RMS)
- 138 dB max SPL
- 48 ÷ 20000 Hz frequency range
- 100° x 50° constant directivity coverage angle
- 1 x 15" high power neodymium woofer
- 1 x 4.0" v.c. neodymium compression driver
- High quality birch plywood cabinet
- Steel front grille with clothing

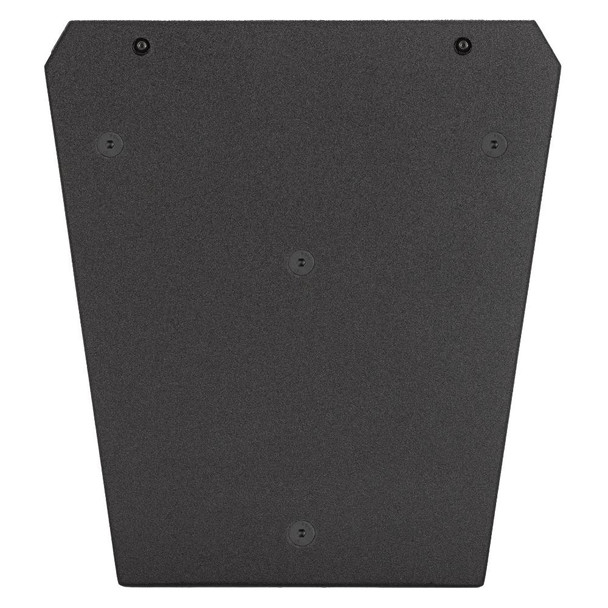

- Installation points available on top, bottom, rear and side panels

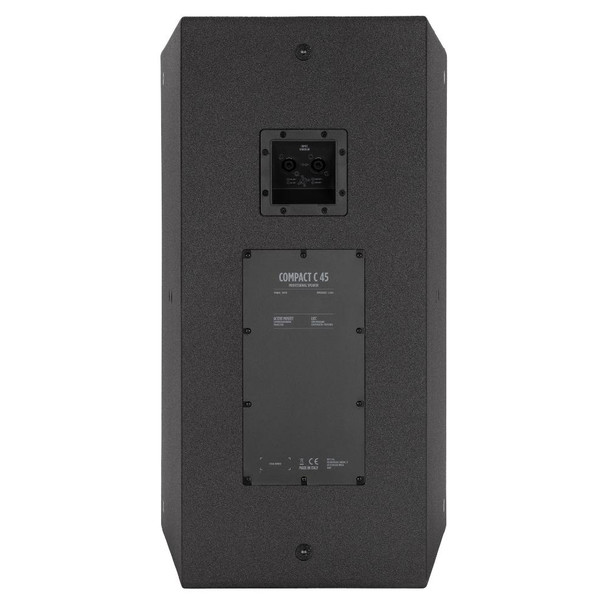

- SPEAKON in/out connectors
Why We Like This
It delivers extremely high output and clarity, making it a strong choice for larger installations where performance and coverage are critical.
FAQs
Q: Is this an active speaker?
No. It is a passive speaker and requires an external amplifier.
Q: Can it be installed permanently?
Yes. It includes multiple rigging points for flexible installation.
Q: What type of connectivity does it use?
It uses professional SPEAKON input/output connectors.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Speaker Type: |
Passive |
Configuration: |
2-Way |
Total Passive Power Handling: |
700 W RMS / 2800 W Peak |
LF Driver: |
1x 15" / 38 cm Woofer Voice Coil: 4" / 10.2 cm Magnet: Neodymium |
HF Driver: |
1x 1.4" / 3.6 cm Rotatable-Horn Titanium Dome Compression Driver Voice Coil: 4" / 10.2 cm Magnet: Neodymium |
Frequency Range/Response: |
148 Hz to 20 kHz (-10 dB) |
Dimensions: |
27.7 x 16.4 x 18.1" |
Weight: |
71.6 lb |
