Description

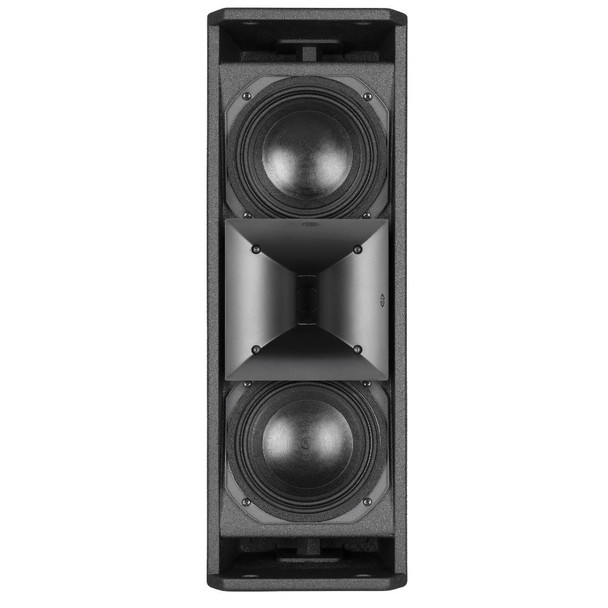

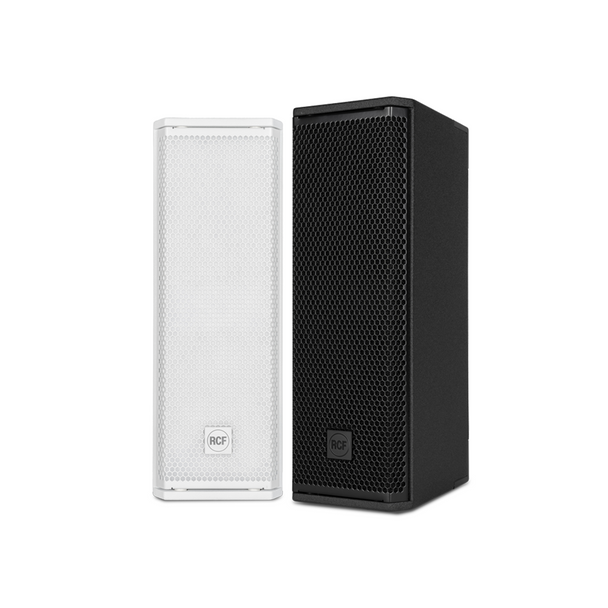

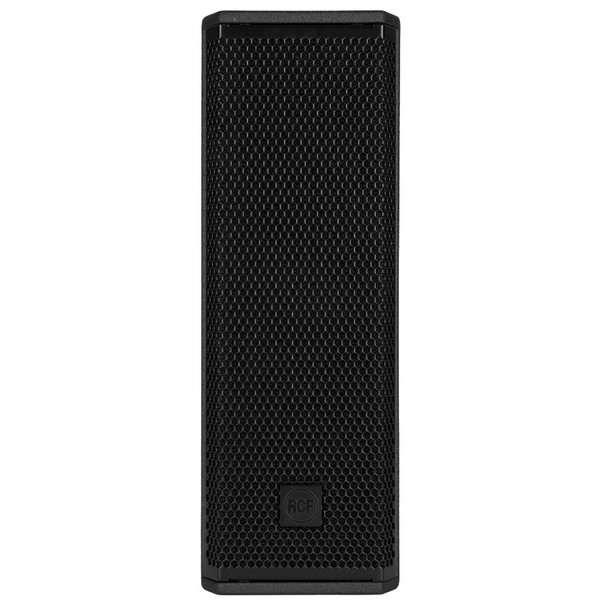

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

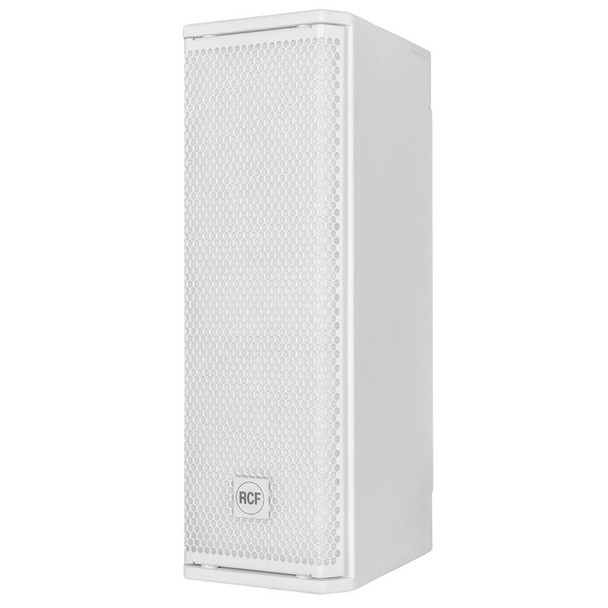

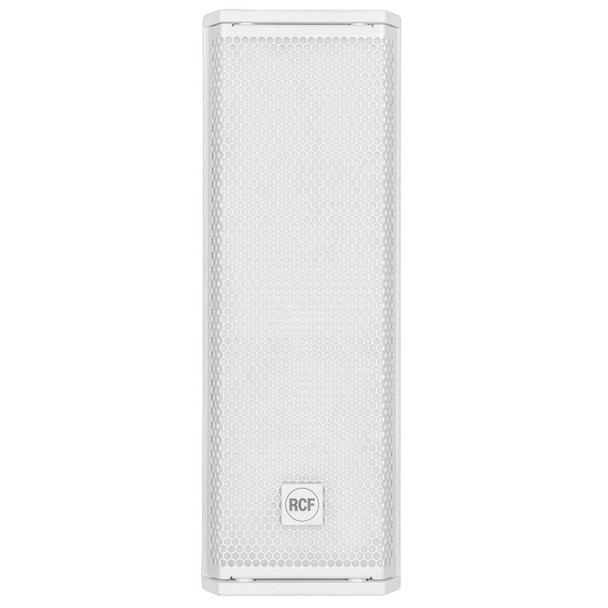

NXL 14-A is the most compact active speaker in the professional NXL series. Offered in a sleek black or white finish, this point source speaker is engineered for clarity, power, and versatility in any live setting or installation. Ideal for vocal reproduction, it excels in compact live systems paired with SUB Series subwoofers, immersive setups, or as a reliable fill speaker. The NXL 14-A delivers professional audio performance where it matters most.
The 1.75" compression driver features a newly developed dome made of PKX (Modified Polyether Ether Ketone). PKX is a rigid yet lightweight colorless organic polymer. It is possibly the best of the thermoplastic resin films for their specification in audio applications. Developed by the RCF Precision Transducers laboratory and enhanced with reinforcing ribs for high-performance slim dome designs, this new compression driver offers greater precision and reliability.
The dual woofer configuration features two 6” neodymium woofers designed for robust bass performance. The cone is crafted from water-resistant fiber-doped material, ensuring durability and consistent sound quality in various environments. It also includes a polycotton M-roll surround which enhances its efficiency and overall audio output. Additionally, the hypervented magnetic structure allows for better cooling and improved power handling, resulting in a clearer and more reliable sound reproduction.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Features
- 128 dB max SPL
- 2100W Class-D Bi-Amplification
- 70-20000 Hz linear frequency range
- 1.75" PKX / Neodymium Compression Driver
- 2 x 6" High Power Neodymium Woofers
- Rotatable 100° x 70° TRW Waveguide
- FiRPHASE and Bass Motion Control
Why We Like This
The compact column design combined with high output and advanced DSP makes it perfect for vocal clarity and tight installations where space is limited but performance is critical.
FAQs
Q: Is this a line array speaker?
It’s a compact column-style point-source speaker, not a full line array, but offers controlled dispersion similar to column systems.
Q: Can it be used without a subwoofer?
Yes, but pairing with a subwoofer significantly enhances low-frequency performance.
Q: Is it suitable for installations?
Yes. Its compact size and optional white finish make it ideal for installed applications.
Based in Chicago, IL, Gear Club Direct supports DJs, musicians, and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Speaker Type: |
Active Loudspeaker |
Configuration: |
2-Way |
Total Output Power: |
2100 W Peak |
LF Driver: |
2x 6" / 15.2 cm Woofer Voice Coil: 2" / 50.8 mm Magnet: Neodymium |
HF Driver: |
1x 1" / 25.4 mm Horn-Loaded Titanium Dome Compression Driver Voice Coil: 1.75" / 44.45 mm Magnet: Neodymium |
Frequency Range/Response: |
70 Hz to 20 kHz |
Dimensions: |
22.3 x 10.6 x 7.8" / 56.6 x 26.9 x 19.8 cm |
Weight: |
28.2 lb / 12.8 kg |
