RCF NX-945A 15" Active Speaker

Description
Tech Specs
Delivery & Returns

Description

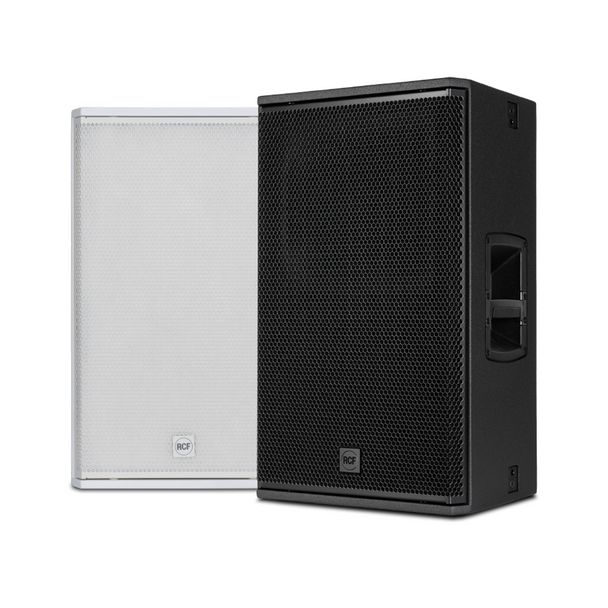

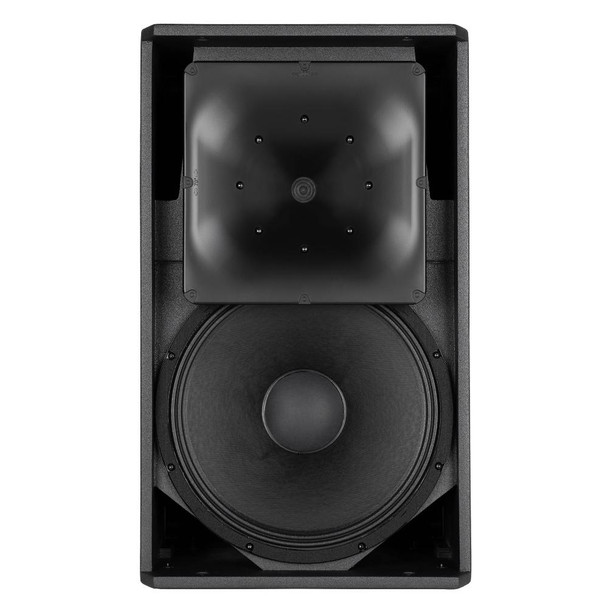

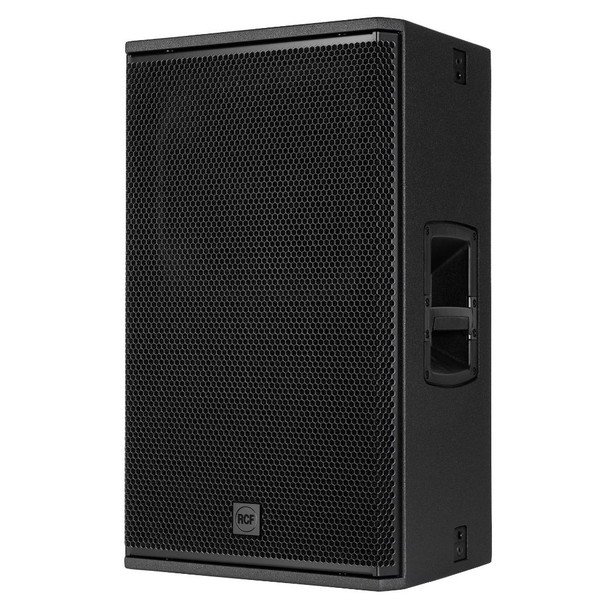

NX 945-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 4" titanium/neodymium compression driver, 15" neodymium woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 945-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

Power that moves

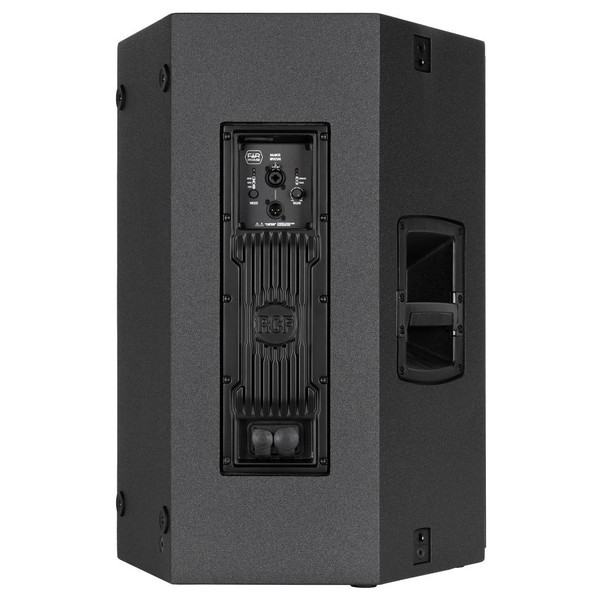

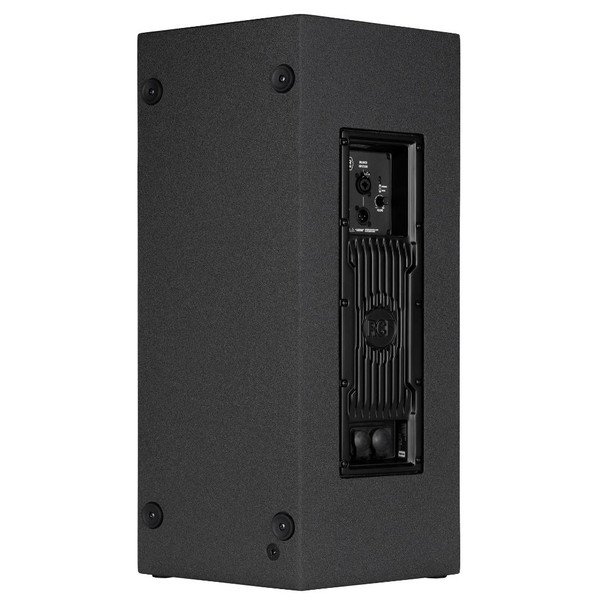

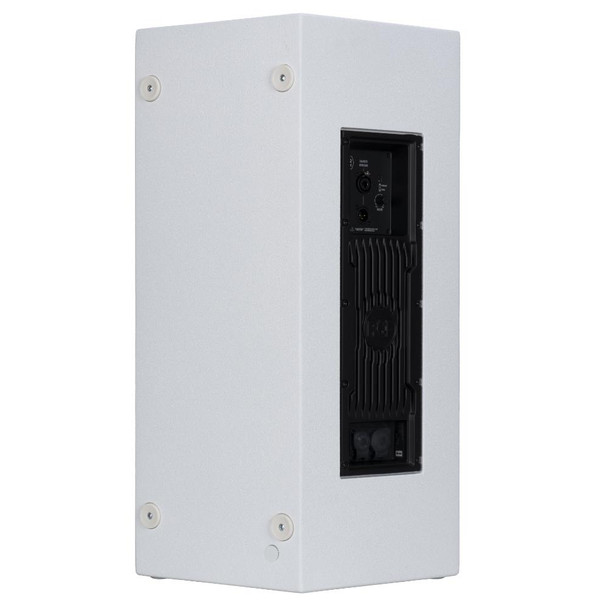

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet without moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section merging high-efficiency with minimum weight.

Bass Motion Control

When searching for extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. NX 9 Series with BMC can handle the lowest audible frequencies without affecting the woofer stability, providing extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the BMC algorithm breaks this rule. In combination with FiRPHASE technology, NX 9 has a new level of audio performance in this series of speakers.

Tour-proven workhorse

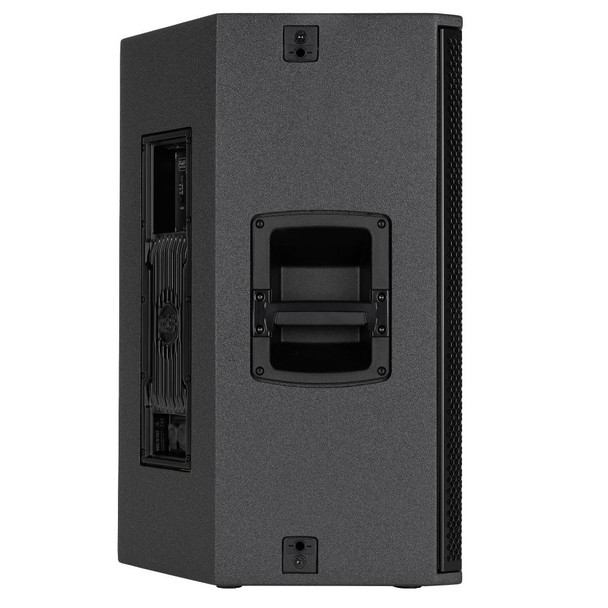

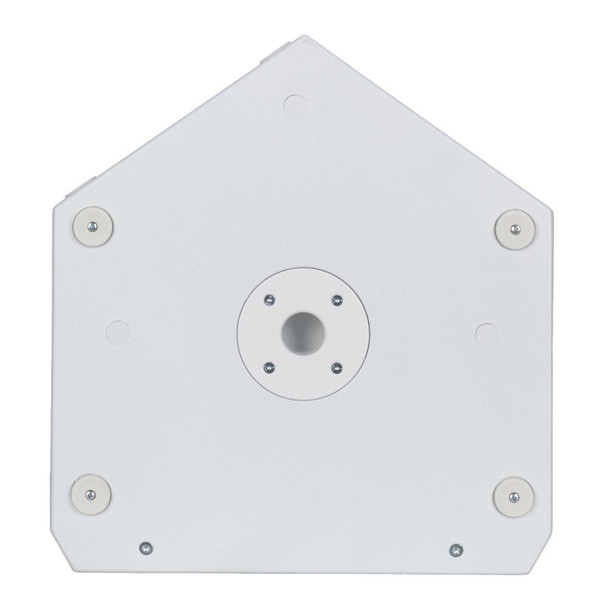

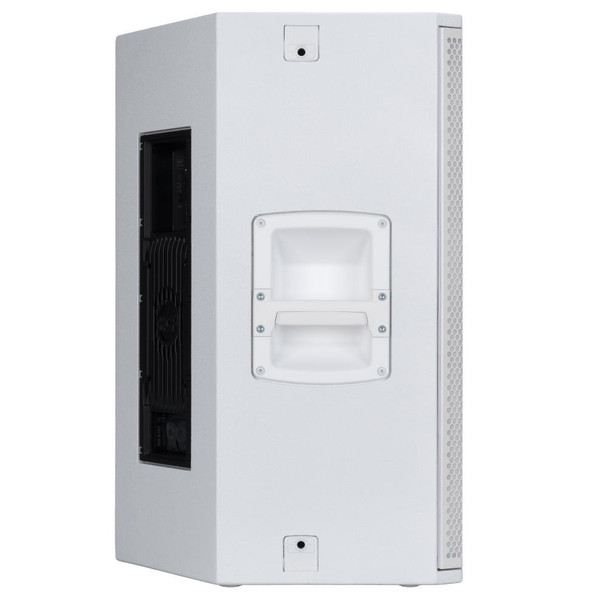

NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry with handles on both sides. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points, Quick Lock pins, and special accessories. From the wood cabinet to the final texture and protective grille, NX 9 Series offers maximum strength for intensive use on the road and can be used for fixed installation.

Ready for heavy-duty applications

The highly innovative entertainment industry is always evolving by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment. The speaker features True Outdoor Protection (TOP) PowerCON TRUE1 power input connectors. These ruggedized sealed connectors feature IP protection and UV resistance approved according to UL50E.

Features

Up to 135 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
4" Titanium/Neodymium Compression Driver
15" neodymium Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
Six M10 and four Quick Lock rigging points

Why We Like This

The 4" compression driver combined with a 15" woofer delivers exceptional clarity and output. Its high SPL capability and flexible mounting options make it a strong choice for professional live sound systems.

FAQs

Q: Can this speaker be used without a subwoofer?
Yes. It functions as a full-range speaker, though adding a subwoofer enhances low-frequency performance.

Q: Is it suitable for touring and installation?
Yes. It is built for both mobile use and fixed installations with multiple mounting options.

Q: Does it require an external amplifier?
No. It is an active speaker with built-in amplification.

Based in Chicago, IL, Gear Club Direct supports DJs, musicians, and audio professionals every day with reliable gear and knowledgeable service you can trust.

Tech Specs

Speaker Type:	Active Loudspeaker/Stage Monitor
Configuration:	2-Way
Total Output Power:	2100 W Peak
LF Driver:	1x 15" / 38 cm Woofer Voice Coil: 3.5" / 88.9 mm Magnet: Neodymium
HF Driver:	1x 1.4" / 35.6 mm Polyimide Compression Driver Voice Coil: 3" / 76.2 mm Magnet: Neodymium
Frequency Range/Response:	45 Hz to 20 kHz
Dimensions:	27.8 x 17.7 x 16.5" / 70.6 x 45 x 41.9 cm
Weight:	60.2 lb / 27.3 kg
