Description

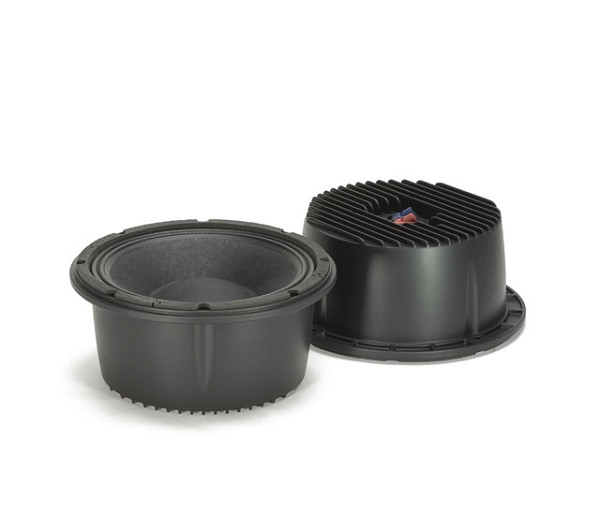

The MR10N301 is a high efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size. The total weight is reduced to less than half of a comparable ceramic midrange thanks to an incredibly powerful neodymium magnet assembly. The unique sealed basket design doesn't require a back sealing chember, simplifying the cabinet design and improving heat dissipation. Every detail of this speaker has been optimazed to offer the best response and perfect control to the midrange frequencies. Features3-inch, finside/outside copper voice coil600W continuous program power handling109 dB Sensitivity in horn loaded application150 Hz " 2 kHz Frequency rangeHigh BL neodymium designUnique aluminum sealed basket featuring vented fin heat dissipation designCalibrated back volume for a perfect time domain transient reproductionSpecificationsNominal Diameter: 260 / 10 mm/inchRated Impedance: 8 ΩProgram Power: 600 W AESPower handling capacity: 300 W AESSensitivity: 102 dBFrequency Range: 150 Hz Ã?· 2000 HzEffective Piston Diameter: 210 / 8.3 mm/inchMax Excursion Before Damage (peak to peak): 20 / 0.8 mm/inchMinimum Impedance: 8.5 ΩVoice Coil Diameter: 76 / 3 mm/inchVoice Coil Material: AlluminumVoice Coil Winding Depth: 11 / 0.4 mm/inchNumber of layers: 2Kind of layer: inside / outsideTop Plate Thickness: 10 / 0.4 mm/inchCone Material: No pressed pulpCone Design: CurvedSurround Material: PolycottonSurround Design: M - rollDC resistance: 6.2ΩMechanical factor: 6.48Electrical factor: 0.72Total factor: 0.65BL Factor: 20.7 T Ã?· mEffective Moving Mass: 31.8 gEquivalent Cas air load: 2.2 litersEffettive piston area: 0.035 mÃ?²Max. linear excursion (mathematical): 1.4 mmVoice - coil inductance @ 1kHz: 1.17 mHHalf-space efficiency: 9.26%Overall Diameter: 272 / 10.7 mm/inchBolt Circle Diameter: 244 / 9.6 mm/inchBolt Hole Diameter: 7 / 0.3 mm/inchFront Mount Baffle Cut-out: 235 / 9.3 mm/inchRear Mount Baffle Cut-out: 232 / 9.1 mm/inchDepth: 124 / 4.9 mm/inchVolume occupied by the driver: 5.0 / 0.18 liters/ftÃ?³Net Weight: 3.9 / 8.6 kg/lbs
