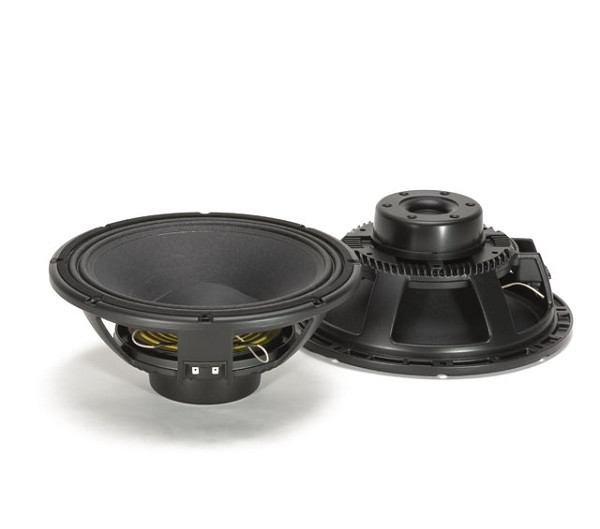

RCF MB12N351 Mid-Bass

The MB12N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3.5" voice coil design provides a very high power handling, especially recommended in comparison to a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation to minimize the power compression and provide higher power handling. Features3.5-inch, fiberglass inside/outside copper voice coil1300W continuous program power handling99 dB Sensitivity45 Hz " 3 kHz Frequency rangeDual-forced air ventilation for minimum power compressionSingle spider design with silicon based damping controlSpecificationsNominal Diameter: 300 / 12 mm/inchRated Impedance: 8 ΩProgram Power: 1300 W AESPower handling capacity: 650 W AESSensitivity: 99 dBFrequency Range: 45 Hz · 3000 HzEffective Piston Diameter: 260 / 10.2 mm/inchMax Excursion Before Damage (peak to peak): 39 / 1.5 mm/inchMinimum Impedance: 7.0 ΩVoice Coil Diameter: 87 / 3.4 mm/inchVoice Coil Material: CopperVoice Coil Winding Depth: 16.5 / 0.65 mm/inchNumber of layers: 2Kind of layer: inside / outsideTop Plate Thickness: 11 / 0.43 mm/inchCone Material: No pressed pulpCone Design: CurvedSurround Material: PolycottonSurround Design: M - rollResonance frequency: 55 HzDC resistance: 5.6ΩMechanical factor: 4.5Electrical factor: 0.21Total factor: 0.20BL Factor: 22.5 T · mEffective Moving Mass: 54 gEquivalent Cas air load: 61 litersEffettive piston area: 0.053 m²Max. linear excursion (mathematical): 5.5 mmVoice - coil inductance @ 1kHz: 1.65 mHHalf-space efficiency: 4.66%Overall Diameter: 320 / 12.6 mm/inchBolt Circle Diameter: 293-304 / 11.5-12 mm/inchBolt Hole Diameter: 6.5 / 0.3 mm/inchFront Mount Baffle Cut-out: 282 / 11.1 mm/inchRear Mount Baffle Cut-out: 284 / 11.2 mm/inchDepth: 138 / 5.4 mm/inchVolume occupied by the driver: 2.2 / 0.077 liters/ft³Net Weight: 4.4 / 9.7 kg/lbs
