Description

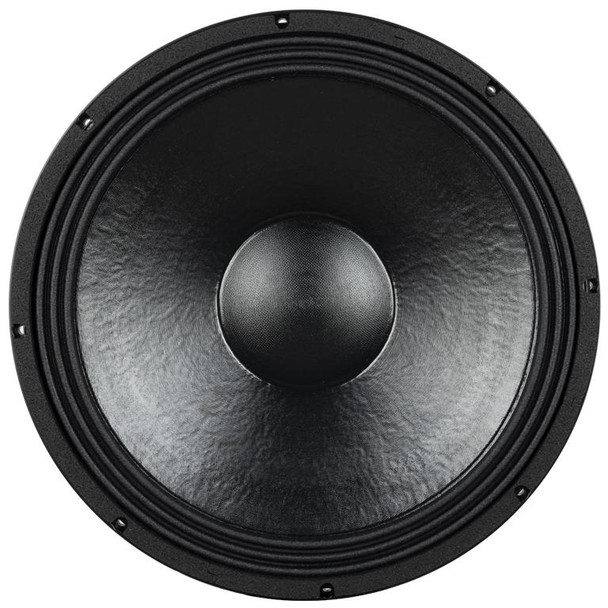

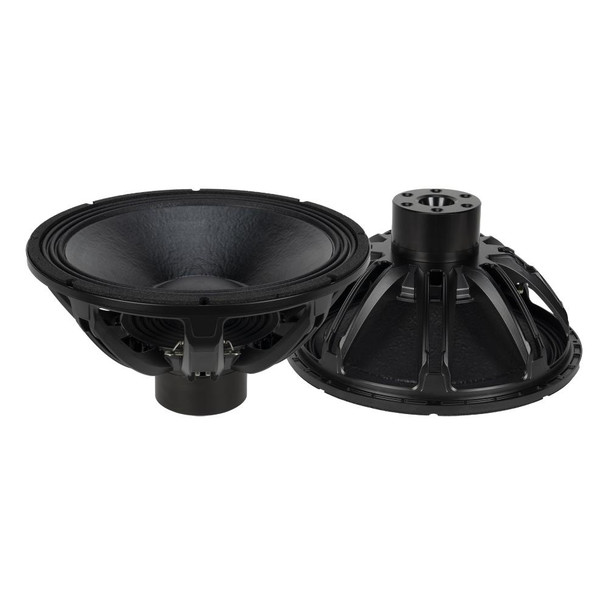

The LN19S400 is a 19-inch extended low-frequency transducer designed with high excursion piston capabilities, perfect for vented enclosures where power and low-frequency extension are priorities. One of the key highlights of the transducer is its ultralight CCAW (copper-clad aluminum wire) voice coil, which is configured in a 4.0-inch, 4-layer inside-outside voice coil with fiberglass former material. The ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) with high power and fast acceleration capabilities. Employing a cone assembly loaded with fibers and featuring a generous triple-roll surround, the LN19S400 is engineered to decrease flux modulations and enhance transient response. The Hyper-Vented dual-forced air system enhances voice coil ventilation, effectively minimizing power compression.
Features
- 4.0-inch Inside/Outside CCAW (copper-clad aluminum wire) voice coil
- 3000 Watt continuous program power handling
- 98.5 dB Sensitivity
- 25 Hz - 1 kHz Frequency range
- Hypervented magnetic structure for minimum power compression
- Triple roll surround and exponential cone geometry
- Single aluminum demodulation ring
Why We Like This
It combines high excursion and efficient cooling with a lightweight voice coil for responsive and controlled low-frequency performance.
FAQs
Q: What type of enclosure is this designed for?
It is designed for vented enclosures where low-frequency extension is important.
Q: How does it manage heat and power compression?
The hyper-vented cooling system improves airflow and reduces power compression.
Q: What is the frequency range?
25 Hz to 1 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
19 inch / 483 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
3000 W |
Power handling capacity: |
1500 W |
Sensitivity: |
98.5 dB |
Frequency range: |
25 - 1000 Hz |
Effective piston diameter: |
410 mm / 16.14 inch |
Max. Excursion Before Damage: |
59 mm / 2.32 inch |
Minimum Impedance (ohm): |
6.2 ohm |
Voice Coil Diameter: |
4.0 inch / 102 mm |
Voice Coil Winding Material: |
Aluminum |
Voice Coil Length: |
42 mm / 1.65 inch |
Number of layers: |
4 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
16 mm / 0.63 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Ceramic |
Dual-force air ventilation: |
Yes |
Spider: |
03 |
