Description

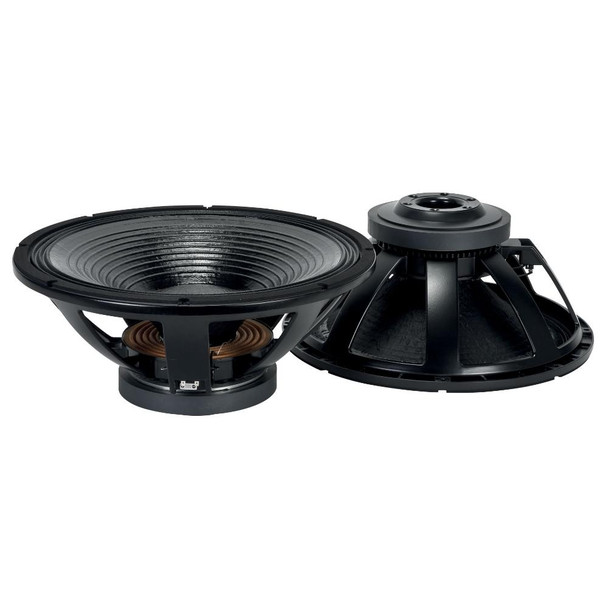

The LF21X451 low frequency transducer is the result of many years of R&D developments with the goal of creating new levels of professional audio performance standards. This products features advancements and improvements in all the key areas of transducer technology. Incredibly linear frequency response characteristics, the highest power handling of any comparable transducer, the lowest power compression. The LF21X451 features a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround: this combination provides remarkable strength and a peak to peak maximum excursion of 54 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 4,5 - inch fiberglass Inside/Outside copper voice coil
- 4000 Watt continuous program power handling
- 97 dB Sensitivity
- 28 Hz - 1 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Dual spider designed with silicon based damping control
- BL of 30.5 Txm to provide a faster and accurate low frequency
Why We Like This
It combines high power handling with controlled excursion and efficient cooling for consistent low-frequency performance.
FAQs
Q: What type of applications is this woofer suitable for?
It is designed for professional audio systems requiring strong and accurate low-frequency output.
Q: How does it handle heat and power compression?
The dual forced-air ventilation system improves cooling and reduces power compression.
Q: What is the frequency range?
28 Hz to 1 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
21 inch / 533 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
4000 W |
Power handling capacity: |
2000 W |
Sensitivity: |
97.0 dB |
Frequency range: |
28 - 1000 Hz |
Effective piston diameter: |
470 mm / 18.5 inch |
Max. Excursion Before Damage: |
54 mm / 2.13 inch |
Minimum Impedance (ohm): |
6.7 ohm |
Voice Coil Diameter: |
4.5 inch / 114 mm |
Voice Coil Winding Material: |
Copper |
Voice Coil Length: |
34 mm / 1.34 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
15 mm / 0.59 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Ceramic |
Dual-force air ventilation: |
Yes |
Spider: |
03 |
