Description

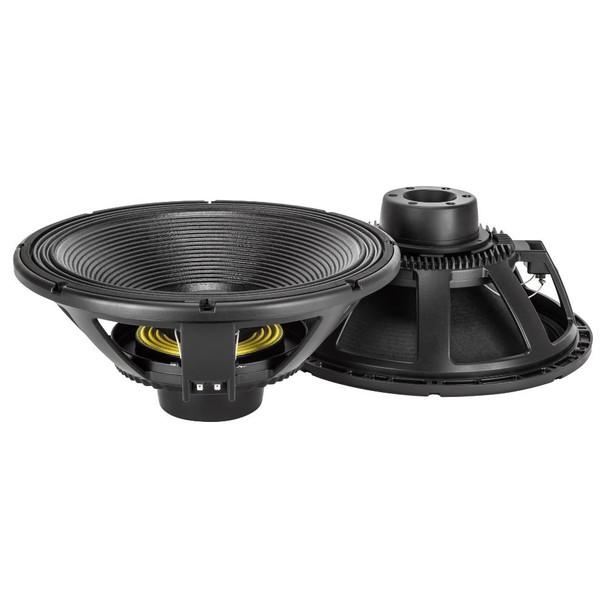

The LF18N405 is an extended low frequency with high power handling , designed to provide powerful and accurate bass frequencies with low distortion, low power compression and very high SPL. The LF18N405 uses a fibre loaded cone assembly along a large triple roll surround, this combination provides remarkable strength and control. The single spider system is specifically designed with a heavy cloth which ensures excellent control during large excursions. A fully optimised T-pole design generates the minimum amount of flux modulation. The Dual-forced air venting magnetic structure system provides a very efficient voice coil ventilation to minimize the power compression.
Features
- 4,0 - inch Inside/Outside copper voice coil
- 3000 Watt continuous program power handling
- 97.5 dB Sensitivity
- 25Hz - 1kHz Frequency range
- Hypervented magnetic structure for minimum power compression
- Triple roll surround and exponential cone geometry
Why We Like This
It delivers strong low-frequency output with efficient cooling and controlled performance for demanding applications.
FAQs
Q: What type of applications is this woofer suitable for?
It is designed for professional systems requiring powerful and accurate low-frequency reproduction.
Q: How does it reduce power compression?
The hypervented magnetic structure improves airflow and cooling.
Q: What is the frequency range?
25 Hz to 1 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
18 inch / 457 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
3000 W |
Power handling capacity: |
1500 W |
Sensitivity: |
97.0 dB |
Frequency range: |
30 - 1000 Hz |
Effective piston diameter: |
395 mm / 15.55 inch |
Max. Excursion Before Damage: |
58 mm / 2.28 inch |
Minimum Impedance (ohm): |
6.0 ohm |
Voice Coil Diameter: |
4.0 inch / 102 mm |
Voice Coil Winding Material: |
Copper |
Voice Coil Length: |
36 mm / 1.42 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
15 mm / 0.59 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Neodymium |
