Description

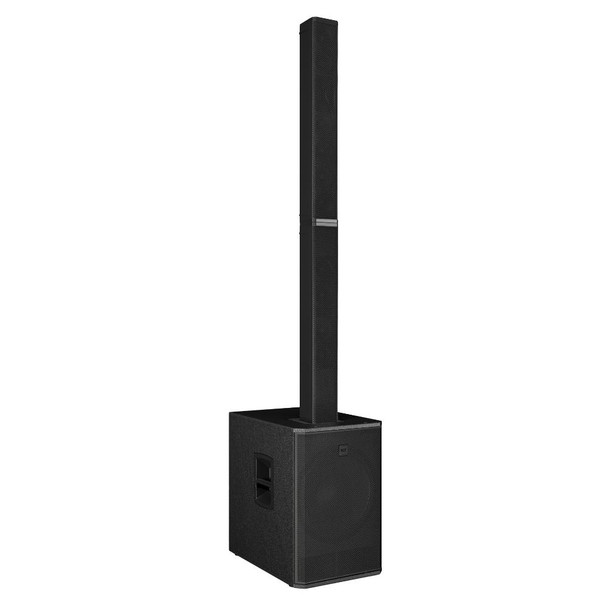

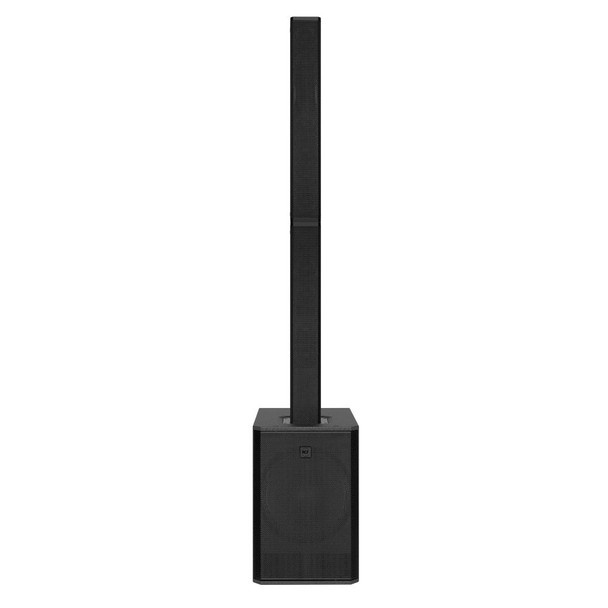

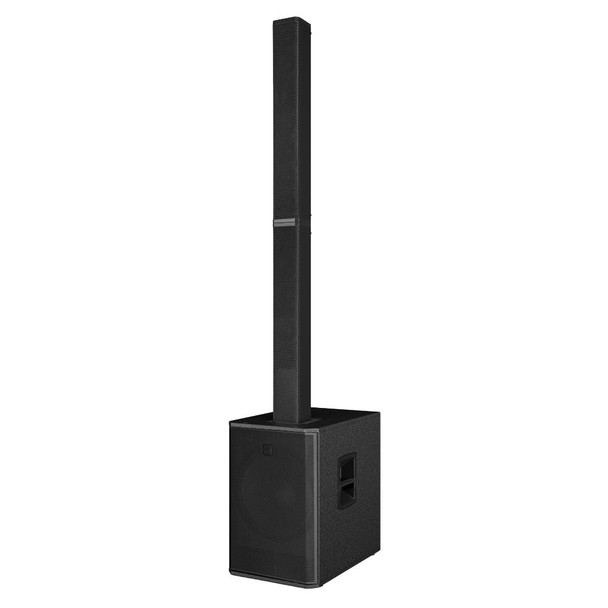

The EVOX V15 is a professional three-way active column loudspeaker designed to deliver clarity, output, and reliability in demanding live sound applications. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide ensures wide, coherent coverage, while ten 4” midrange transducers deliver precise vocal definition. A high-power 15” woofer in a bass-reflex enclosure provides deep, controlled lows. Powered by a 3500 W dual-channel Class-D amplifier, the system achieves 133 dB SPL with touring-grade dynamics. Part of the EVOX Series, the V15 combines RCF transducer and DSP technology in a sleek format, offering natural sound and straightforward deployment for bands, DJs, and live events.

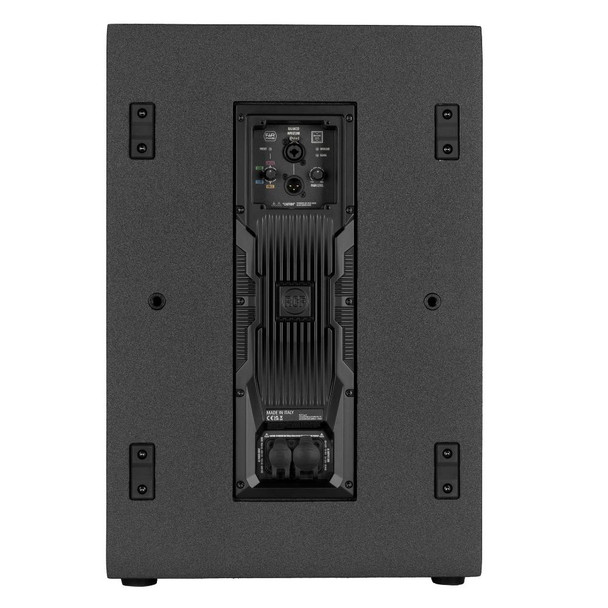

Highly energy-efficient, the EVOX V15 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. Four DSP equalization presets (Linear, Live, Club, and Voice) optimize the system for neutral response, live reinforcement, or maximum speech clarity.
Features
- 133 dB Max SPL
- 3500 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

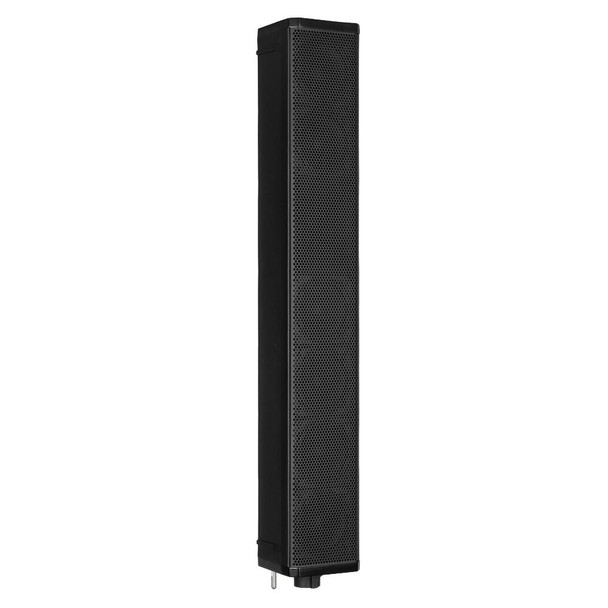

- 10 X 4” Mid-Range Neo Transducers

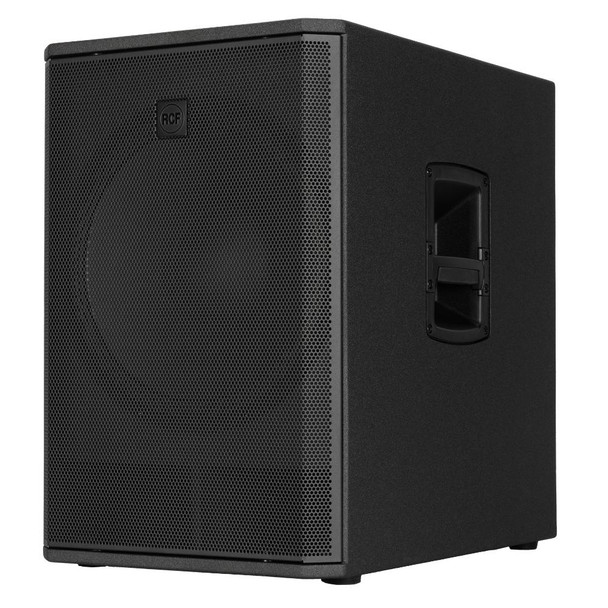

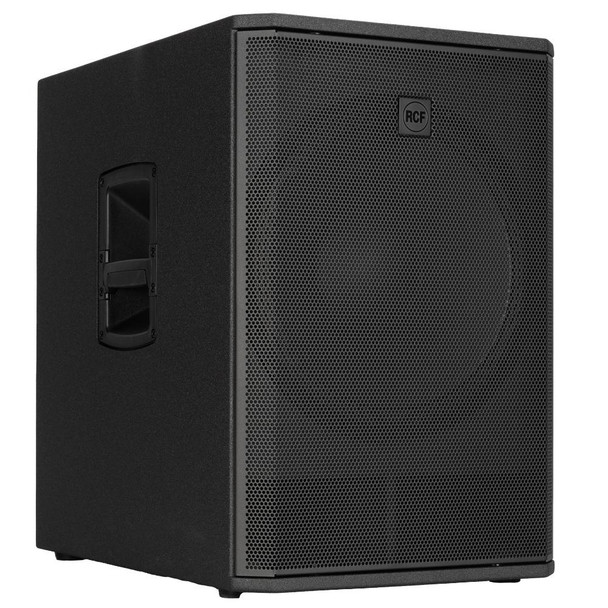

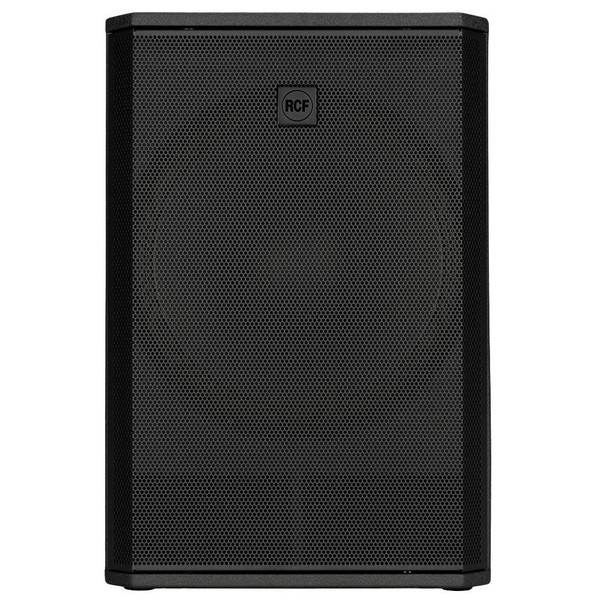

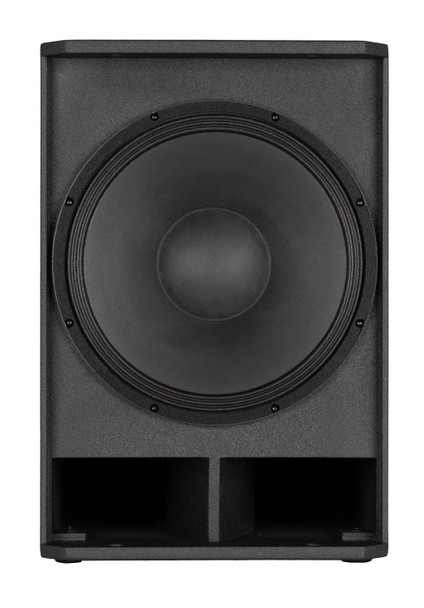

- 15” RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity
- Composite Column, Plywood Woofer Enclosure
- PowerCon True1-TOP Mains Connector
- Top Speaker Padded Carrying Bag Included
Why We Like This
The EVOX V15 combines high output, wide coverage, and professional DSP processing in a portable column-array format that is easy to deploy for live performances and events.
FAQs
Q: What is the maximum SPL of the EVOX V15?
The EVOX V15 delivers up to 133 dB maximum SPL.
Q: Does the system include DSP presets?
Yes. It includes Linear, Live, Club, and Voice DSP presets.
Q: Is a transport bag included?
Yes. A padded carrying bag for the column array section is included.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, production companies, and event professionals with professional audio solutions for live sound and portable PA applications.
Tech Specs
Frequency Response: |
35 Hz - 20000 Hz |
Max SPL @ 1m: |
133 dB |
Horizontal coverage angle: |
120° |
Vertical coverage angle: |
40° |
Compression Driver: |
1 x 1.0'' neo, 1.75'' v.c |
Fullrange: |
10 x 4.0'' neo, 1.0'' v.c |
Woofer: |
15'', 3.0'' v.c |
Input signal: |
bal/unbal |
Input connectors: |
Combo XLR/Jack |
Combo XLR/Jack: |
XLR |
Input sensitivity: |
+4 dBu |
Crossover Frequencies: |
160/1600 Hz |
Protections: |
Thermal, RMS |
Limiter: |
Soft Limiter |
Controls: |
Volume, Presets: LINEAR, LIVE, CLUB, VOICE |
Total Power: |
3500 W Peak |
High frequencies: |
1500 W Peak |
Low frequencies: |
2000 W Peak |
Cooling: |
Convection |
Connections: |
Powercon TRUE1 TOP IN/OUT |
Safety agency: |
CE compliant |
Cabinet/Case Material: |
Baltic birch plywood/PP Composite |
Handles: |
One handle each side of the subwoofer |
Grille: |
Steel |
