Description

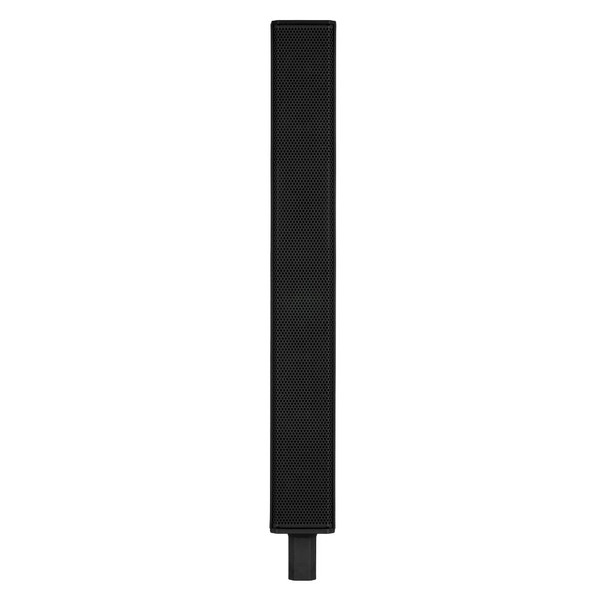

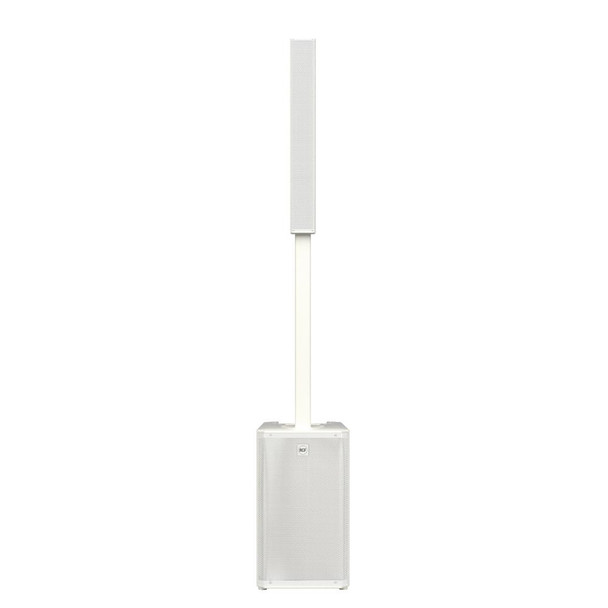

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.
Features
- 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers
- 12” High-Power Woofer
- Enhanced Coverage And Clarity
- Sleek Composite Cabinet With Aluminum Stand Mount
- Top Speaker Padded Carrying Bag Included
Why We Like This
- Combines a digital mixer and PA system in one compact setup
- Provides flexible input and control options without external mixers
- Designed for portable use with consistent coverage
FAQs
Q: Does the EVOX JMIX9 include a built-in mixer?
A: Yes, it features an integrated 8-channel true-stereo digital mixer with touch screen control and Bluetooth®.
Q: Can the system be controlled remotely?
A: Yes, all mixer functions are accessible through the JMixRemote app.
Q: Is a carrying accessory included?
A: Yes, a padded carrying bag for the top speaker is included.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.
Tech Specs
Frequency Response: |
40 Hz - 20000 Hz |
Max SPL @ 1m: |
130 d |
Horizontal coverage angle: |
120° |
Vertical coverage angle: |
40° |
Compression Driver: |
1 x 0.75'' neo, 1.75'' v.c |
Fullrange: |
6 x 3.0'' neo, 1.0'' v.c |
Woofer: |
1 x 12'', 2.5'' v.c |
Input signal: |
bal/unbal |
Input connectors: |
Combo XLR/Jack |
Output connectors: |
XLR |
Input sensitivity: |
-2 dBu/+4 dBu |
Crossover Frequencies: |
200 Hz/1800 Hz |
Protections: |
Thermal, RMS |
Limiter: |
Soft Limiter |
Controls: |
Digital mixer controlled by touch screen and encoders |
Total Power: |
2100 W Peak |
High frequencies: |
700 W Peak |
Low frequencies: |
1400 W Peak |
Cooling: |
Convection |
Connections: |
VDE |
Processing Channels: |
8 |
Signal Processing: |
32 Bit |
A/D-D/A conversion: |
24 Bit @ 48.0 kHz |
Dynamic range: |
114 |
Input Channels EQ: |
1 Semi Parametric / 2 Shelving |
Description: |
3 Band EQ: High and Low band shelving, MID band peak on INPUT 8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output. |
Main OUT processors: |
1 |
Main OUT type: |
MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT. |
Handles: |
1 Top |
Pole mount/Cap: |
Quick-fit socket |
Grille: |
Steel |
Color: |
Black, White - RAL 9003 |
Dimensions: |
81.89" x 13.78" x 18.11" |
Weight: |
63.49 lbs |
Shipping Dimensions: |
26.61" x 17.76" x 22.78" |
