Description

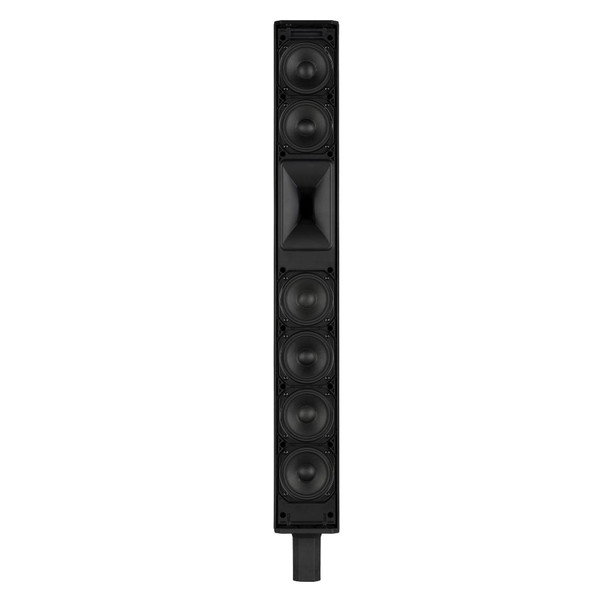

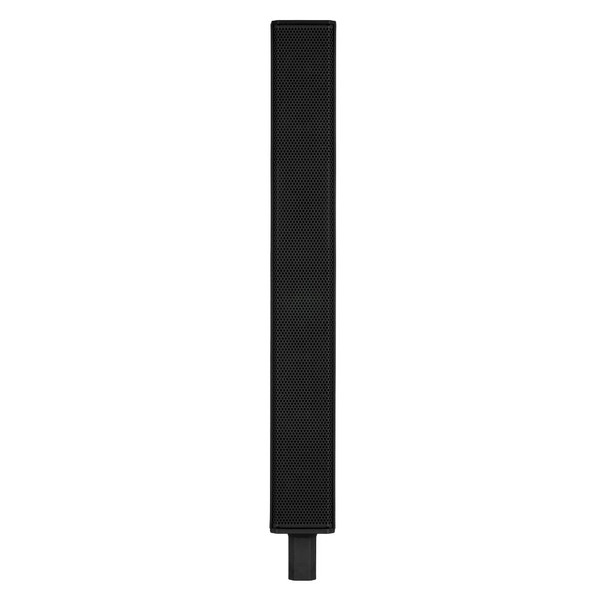

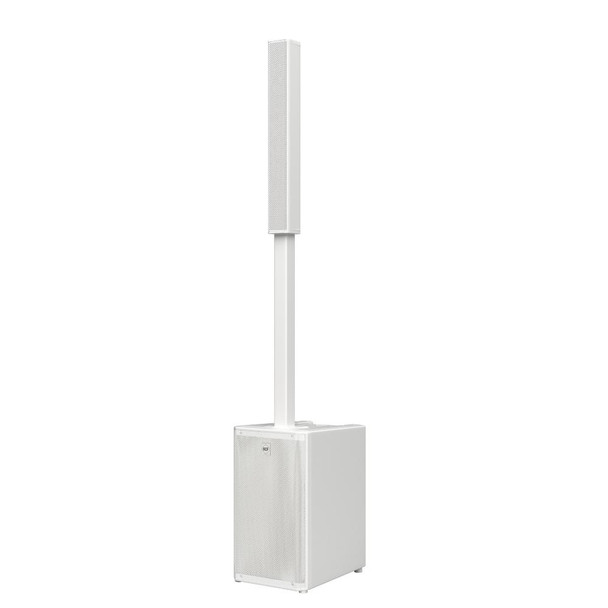

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
Features
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers
- 12” High-Power Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design
- Top Speaker Padded Carrying Bag Included
Why We Like This
- Combines column array coverage and subwoofer output in one portable system
- Offers selectable presets for different use cases without external processing
- Designed for quick setup with minimal components
FAQs
Q: Is the EVOX-J9 an active system?
A: Yes, it includes built-in Class-D amplification and DSP.
Q: What inputs does the system provide?
A: It includes a combo XLR/¼" input and an XLR output.
Q: Is a transport accessory included?
A: Yes, a padded carrying bag for the top speaker is included.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.
Tech Specs
Frequency Response: |
40 Hz - 20000 Hz |
Max SPL @ 1m: |
130 dB |
Horizontal coverage angle: |
120° |
Vertical coverage angle: |
40° |
Compression Driver: |
1 x 0.75'' neo, 1.75'' v.c |
Fullrange: |
6 x 3.0'' neo, 1.0'' v.c |
Woofer: |
1 x 12'', 2.5'' v.c |
Input signal: |
bal/unbal |
Input connectors: |
Combo XLR/Jack |
Output connectors: |
XLR |
Input sensitivity: |
-2 dBu/+4 dBu |
Crossover Frequencies: |
200 Hz/1800 Hz |
Protections: |
Thermal, RMS |
Limiter: |
Soft Limiter |
Controls: |
Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
Total Power: |
2100 W Peak |
High frequencies: |
700 W Peak |
Low frequencies: |
1400 W Peak |
Cooling: |
Convection |
Connections: |
VDE |
Safety agency: |
CE compliant |
Color: |
Black, White - RAL 9003 |
Grille: |
Steel |
Handles: |
1 Top |
Dimensions: |
81.89" x 13.78" x 18.21" |
Weight: |
62.39 lbs |
Shipping Dimensions: |
26.77" x 19.29" x 18.11" |
