Description

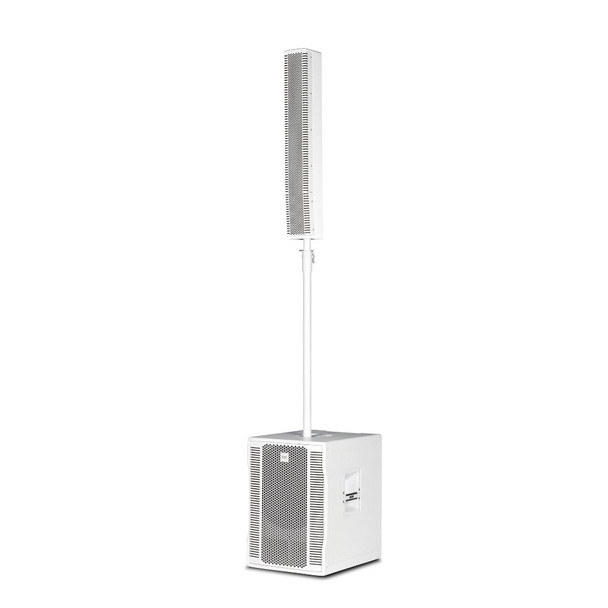

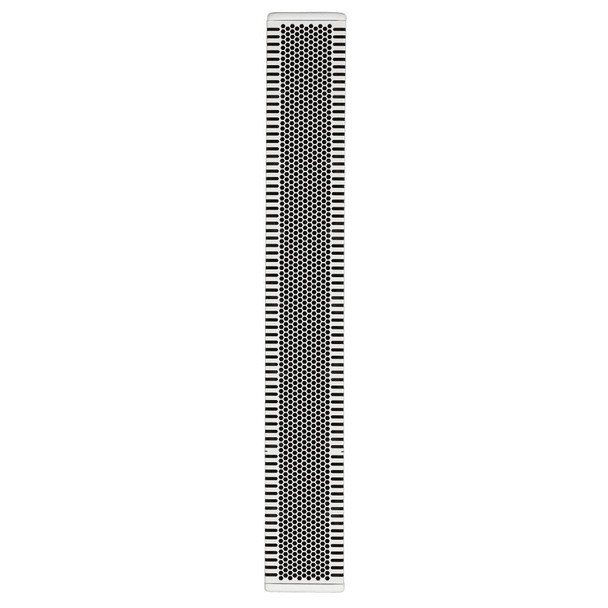

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Features
- 1400 Watt
- 130 dB max SPL
- 40 Hz 20 kHz frequency response
- 15" Woofer
- 8 x 4" neodymium full-range woofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
Why We Like This
The combination of a 15" subwoofer and column array provides full-range sound in a compact format. The integrated wheels and handle make it practical for mobile setups without sacrificing output capability.
FAQs
Q: Is this system suitable for live performances?
Yes. The EVOX 12 is designed for applications such as live bands, DJs, and event production.
Q: Does the system include amplification?
Yes. It features a built-in 1400W Class-D amplifier.
Q: Is the system portable?
Yes. It includes integrated wheels and an extendable handle for easier transport.
Based in Chicago, IL, Gear Club Direct supports DJs, musicians, and event professionals every day with reliable gear and knowledgeable service you can trust.
Tech Specs
Acoustical specifications: |
Frequency Response 40 Hz - 20000 Hz < /br> Max SPL @ 1m 130 dB Horizontal coverage angle 90° Vertical coverage angle 30° |
Transducers: |
Fullrange 8 x 4.0'', 1.0'' v.c Woofer 15'', 3.0'' v.c |
Input/Output section: |
Input signal bal/unbal Input connectors XLR, Jack Output connectors XLR Input sensitivity -2 dBu/+4 dBu |
Processor section: |
Crossover Frequencies 180 Hz Protections Thermal, RMS Limiter: Soft Limiter Controls Volume, EQ |
Total Power: |
1400 W Peak, 700 W RMS |
High frequencies: |
400 W Peak, 200 W RMS |
Low frequencies: |
1000 W Peak, 500 W RMS |
Cooling: |
Convection |
Connections: |
VDE |
Safety agency: |
CE compliant |
Cabinet/Case Material: |
Baltic birch plywood |
Color: |
Black, White - RAL 9003 |
Height: |
86.61 inches |
Width: |
16.14 inches |
Depth: |
22.05 inches |
Weight: |
80.25 lbs |
