Description

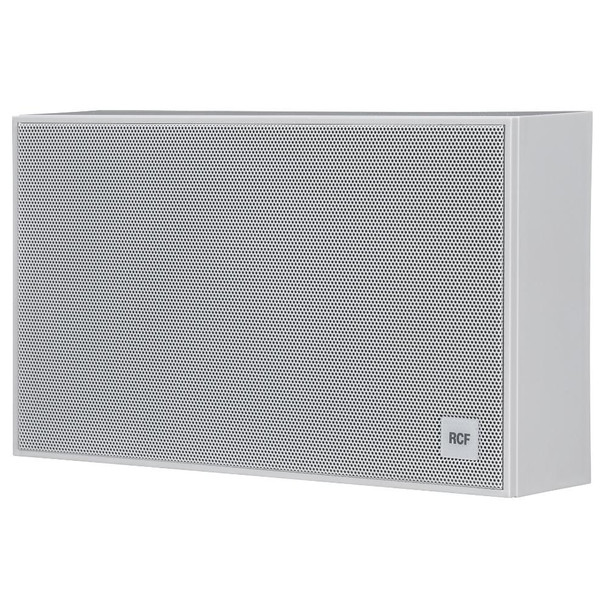

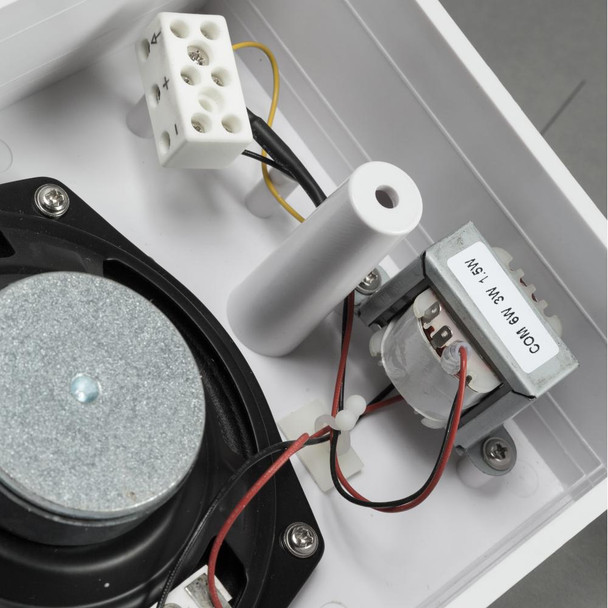

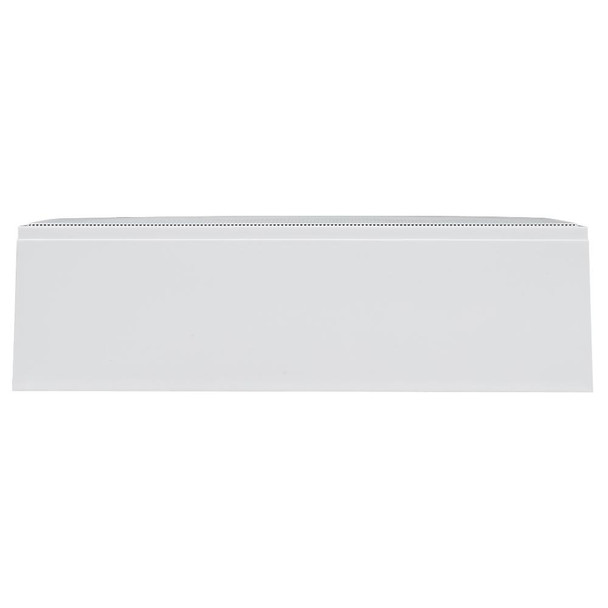

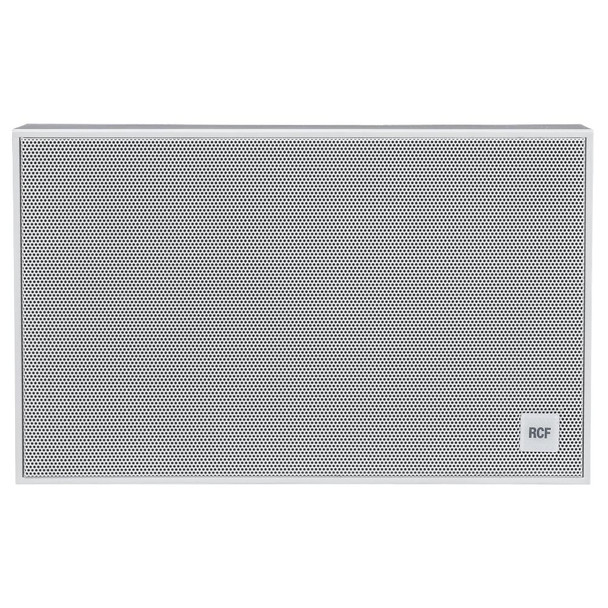

DUP 5EN is a universal speaker designed for wall installation. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Cables inside speaker made using flameproof leads.
Features
- 5.5" fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W.
- 92 dB sensitivity.
- Colour white RAL 9016.
- Plastic body and steel grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Why We Like This
It offers reliable voice clarity with safety-focused design, making it ideal for emergency and public address systems.
FAQs
Q: What type of system is this speaker designed for?
It is designed for 100V line distributed audio and voice alarm systems.
Q: Is it suitable for emergency use?
Yes. It is built to maintain performance under high-temperature conditions.
Q: How is it installed?
It is designed for simple wall surface mounting.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
130 Hz - 17000 Hz |
Max SPL @ 1m: |
100 dB |
Max SPL @ 4m: |
88 dB |
Coverage angle: |
180° |
System Sensitivity: |
92 dB |
System Sensitivity 1W @ 4m: |
80 dB |
Power Handling: |
6 W |
Peak Power Handling: |
24 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
1 x 5.5'' |
Dimensions: |
6.54" x 10.51" x 3.15" |
Weight: |
2.54 lbs |
