Description

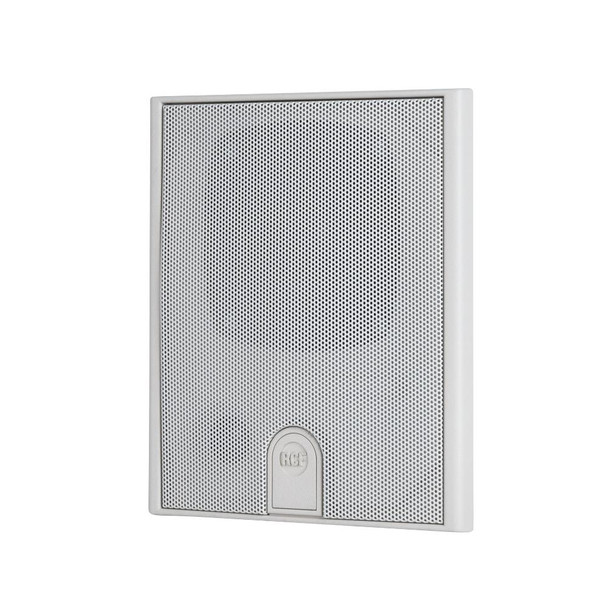

DU 31EN is a two-way flush mount speaker with flexible design suitable for paging and background music for several type of installations. It is equipped with a 4" woofer and a 1" tweeter. It features a line transformer for the connection to 100 / 70 V constant voltage lines, allowing to select among 3 different power levels. The rear cover A 1331 (not included) makes it suitable also for wall or surface installation.
Features
- 4" woofer and 1" dome tweeter.
- Power selectable (100 V): 8 W – 4 W – 2 W.
- 82 dB sensitivity.
- Colour white RAL 9002.
- Flameproof plastic body, steel grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Why We Like This
- Designed for regulated paging and background music systems
- EN54-24 certification supports safety-critical installations
- Flexible mounting options with optional rear cover
FAQs
Q: Is this speaker suitable for 100 V systems?
A: Yes, it includes a built-in transformer for 100 V constant-voltage lines.
Q: Can the output power be adjusted?
A: Yes, power can be selected at 8 W, 4 W, or 2 W.
Q: Is wall mounting supported?
A: Wall or surface mounting is possible when used with the optional rear cover A 1331 (not included).
Based in Chicago, IL, Gear Club Direct supports musicians, installers, and audio professionals every day.
Tech Specs
Frequency Response (-10dB): |
100 Hz - 17000 Hz |
Max SPL @ 1m: |
91 dB |
Max SPL @ 4m: |
79 dB |
Coverage angle: |
180° |
System Sensitivity: |
82 dB |
System Sensitivity 1W @ 4m: |
70 dB |
Power Handling: |
8 W |
Peak Power Handling: |
32 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Dome Tweeter: |
1 x 1.0'' |
Woofer: |
1 x 4.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
8 W - 1250 ohm |
Power selection 2: |
4 W - 2500 ohm |
Power selection 3: |
2 W - 5000 ohm |
IP protection grade: |
IP 21C |
Safety agency: |
CE compliant |
EN54-24 certified: |
Yes |
CPR number: |
0068-CPR-234/2025 |
Cabinet/Case Material: |
Plastic |
Grille: |
Steel |
Color: |
White - RAL 9002 |
Weight: |
1.32 lbs |
Dimensions: |
6.89" x 5.94" x 2.2" |
