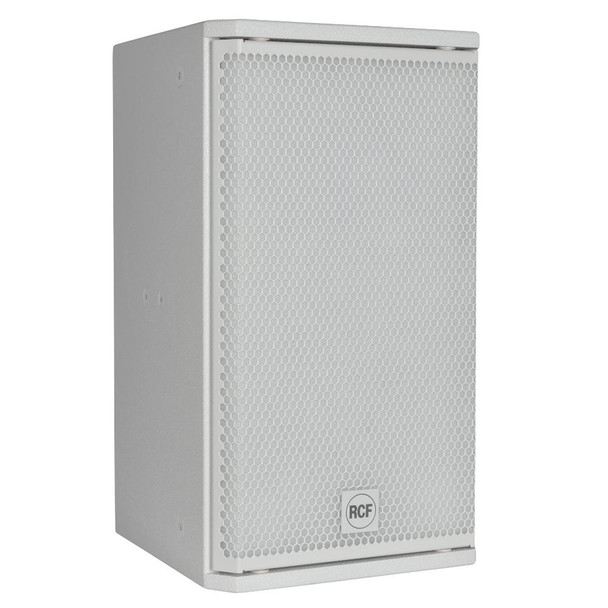

RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)

Write a Review
$699.00
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
RCF COMPACT M 10-W Passive 10" 2-way Compact Speaker (Wht)
SKU:
COMPACT M 10-W
Width:
11.60 (in)
Height:
20.10 (in)
Depth:
12.80 (in)
Shipping:
Free Shipping
Current Stock:

Description

Give your customers, patrons, and employees the sound they deserve with the RCF COMPACT M 10, a full-range passive speaker suitable for a wide range of installed applications. With its speaker construction, frequency range, and wide range of directivity, these monitors provide a professional, hi-fi sound in a customer-facing environment.

This speaker can produce a low-distortion response at high levels, or a nuanced performance at low levels, making it suitable for background music and foreground sound applications. The speaker's elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with mounting points found on the top, bottom, and rear of the speaker.

Note:
Please note: a 600W amp is recommended for use with this speaker.

Great Sound for Your Atmosphere

From restaurants to retail shops, this speaker will fit right in, thanks to its elegant design aesthetic and RCF signature sound quality.

Take up Space in the Brain, Not the Room

With its 10" woofer and 1.4" compression driver, the M 10 is relatively compact, yet produces a clear sound at up to 300W RMS, 128 dB SPL. This means your audience/customers won't be bothered by the look of the speaker, allowing them to become fully immersed in the sonic atmosphere you're trying to create in your space.

Improve Customer Experience

Music helps engagement, improving the hospitality of your environment—especially if the sound is of a high quality, which RCF delivers for both background music and high-powered foreground audio. Furthermore, this speaker can reproduce frequencies of 60 Hz to 20 kHz, which is near enough to full range to provide an immersive sonic experience.

Smooth Installation

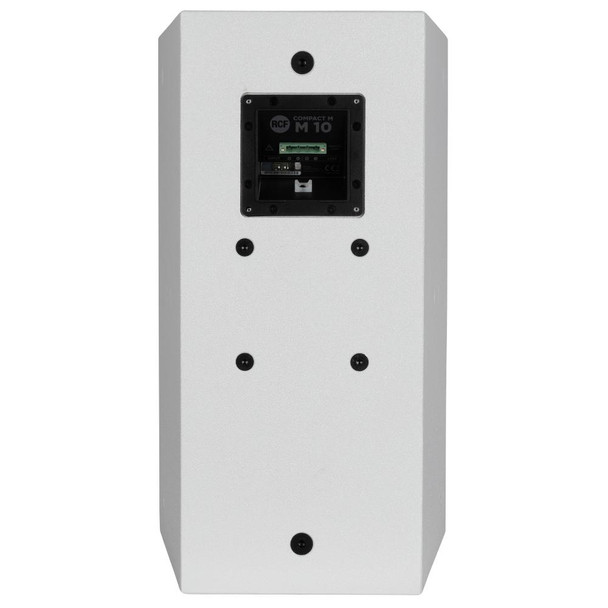

Compact M speakers stick to the functionality and style of the Italian design, always in harmony with any type of interiors. With multiple rigging points, installation time is minimal. Installation points are available on rear, top, and bottom panels. Optional mounting accessories allow using the M 10 on wall or ceiling installations. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds, so you ostensibly have your choice of connectivity options.


RCF COMPACT M 10 Specs

Configuration Passive 2-Way
Total Power Capacity Passive:
300 W RMS
Passive:
1200 W Peak
System Impedance 8 Ohms
Drivers
HF Driver 1 x 1" / 25.4 mm Compression Driver
HF Voice Coil 1.4" / 35.6 mm
MF Driver None
LF Driver 1 x 10" / 254 mm Woofer
LF Voice Coil 2.5" / 63.5 mm
Performance
Frequency Range 60 Hz to 20 kHz -10 dB
Maximum SPL 128 dB SPL (Peak)
Coverage Angle 90° H x 70° V
Directivity 9 (Directivity/Q Factor)
Speaker Sensitivity Passive:
98 dB
HF:
107 dB
LF:
98 dB
Connectivity
Audio I/O 1 x Euroblock 4-Pin Input
1 x Euroblock 4-Pin Link Output
Signal Processing
Crossover 1.8 kHz
Phase Adjustment None
Physical
Mounting 8 x M8
8 x M10
Handles None
Construction Material Plywood, Steel
Dimensions 20.1 to 11.6 x 12.8" / 510 to 295 x 325 mm
Weight 37.5 lb / 17 kg
