Description

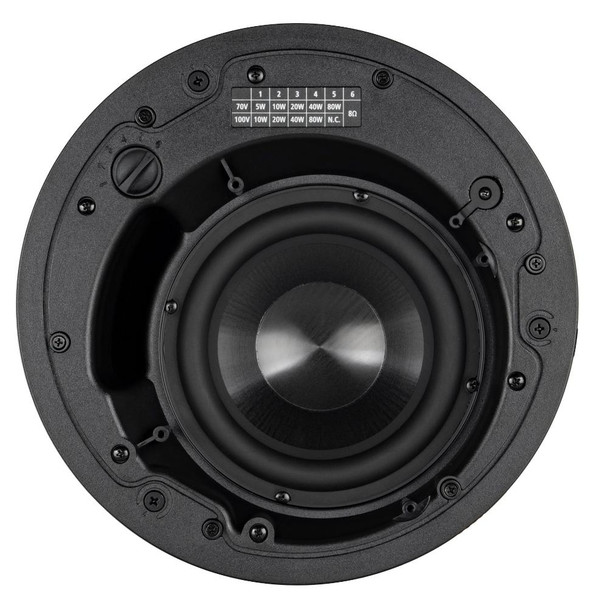

CMR-S 60T is a ceiling subwoofer, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducer guarantees faithful and precise low frequencies reproduction and allows to reach truly remarkable sound pressure levels for such compact product. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch (the line transformer allows selection among five power rates).
Features
- 80 W RMS power handling
- 109 dB max SPL
- 45 ÷ 250 Hz frequency range
- 180° omnidirectional coverage angle
- 6.5" high power woofer, 1.5'' v.c.
- Self extinguishing plastic body and metal backcan
- Steel magnetic front grille

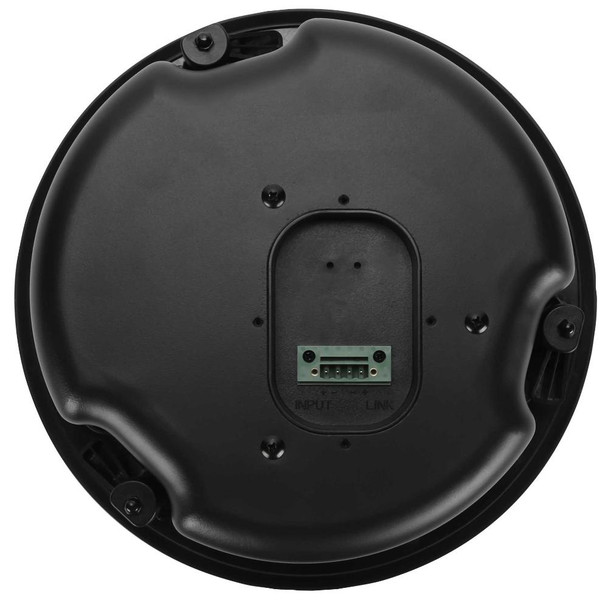

- 4 pole EUROBLOCK connector (audio input and parallel link output)
- 5 different power levels selectable
Why We Like This
It’s a clean, ceiling-integrated solution for adding real low-end to distributed audio systems without bulky subwoofer cabinets.
FAQs
Q: Is this a standalone subwoofer?
It is designed to complement ceiling speaker systems, not as a standalone full-range solution.
Q: Does it work with 70V/100V systems?
Yes. It includes a built-in transformer for constant voltage systems.
Q: Is installation visible?
No. It installs flush in the ceiling with a clean, low-profile magnetic grille.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Active/Passive: |
Passive |
Number of Included Speakers: |
1 |
Speaker Configuration: |
Subwoofer |
Power Handling: |
80 W RMS 160 W Program 320 W Peak |
Constant Voltage / Transformer Taps: |
70 V / 100 V 80 / 40 / 20 / 10 / 5 W or 8 Ohms Bypass |
Impedance: |
8 Ohms |
LF Driver: |
1x 6.5" / 16.5 cm Woofer |
Frequency Range: |
45 Hz to 250 Hz -10 dB |
Color: |
White |
