Description

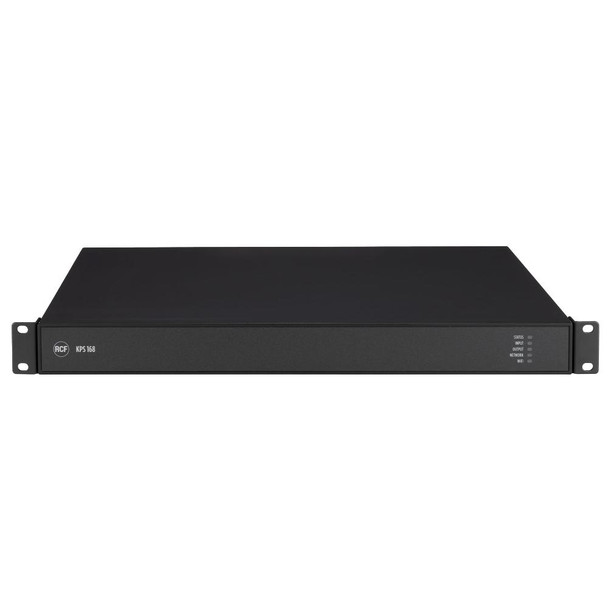

KPS 168 is a professional 8-channel amplifier with a total output power of 1280 W, designed for high-demanding audio installations where flexibility, reliability, and advanced control are essential. Equipped with Class-D amplification and integrated DSP, it provides complete and accurate signal processing, with intuitive configuration through RCF's RDSpace software. The library of RCF loudspeakers’ presets simplifies the setup and ensures optimal performance. Native Ethernet connectivity makes it ideal for distributed systems with independent zone control, while the integrated wireless access point allows direct connection with mobile devices.
Features
- 8 x 160 W Class-D power amplifier
- Integrated signal processing
- Presets for RCF loudspeakers
- Low and high impedance outputs configuration
- Flexible and scalable multi-zone architecture
- Network management with RDSpace software
- API drivers for third party control systems
- PoE wall accessories for remote control
- Powershare across each channels pair up to 320 W
Why We Like This
It delivers eight channels of DSP-controlled amplification in one unit—perfect for large, scalable multi-zone systems.
FAQs
Q: How many zones can this amplifier handle?
Up to eight independent zones or speaker lines.
Q: Does it support 70/100V systems?
Yes. It works with both low and high impedance systems.
Q: How is it controlled?
Via Ethernet using RDSpace software or wirelessly through its built-in access point.
Based in Chicago, IL, Gear Club Direct supports advanced audio installations with scalable, network-controlled solutions.
Tech Specs
Amplifier Class: |
D |
Output Power: |
8 x 160 W @ 4 ohm 8 x 160 W @ 8 ohm 4 x 320 W @ 4 ohm (bridge) 4 x 320 W @ 8 ohm (bridge) |
Output power @ 100 V: |
4 x 320 W @ 100 V |
Output power @ 70 V: |
4 x 320 W @ 70 V |
Frequency Response (-3dB): |
20 Hz - 20000 Hz |
SNR Analog inputs (“A” weighted): |
>106 dB |
SNR Digital inputs (“A” weighted): |
>106 dB |
Distortion (THD+N) (20 Hz - 20000 Hz,160 W @ 8 ohm): |
<0.05 % |
Total number of inputs: |
9 |
Mic+Line inputs: |
8 |
Mic+Line connectors: |
Euroblock, RCA |
Digital inputs: |
1 |
Digital connectors: |
RCA |
Digital type: |
S/PDIF |
General Purpose Inputs (GPI): |
5 |
Programmable GPI: |
Yes |
Signal output number: |
1 |
Signal output number: |
RCA |
Power output connectors: |
Euroblock |
Power consumption (MAX): |
300 W |
Rack mounting: |
19", 1U |
Dimensions: |
1.73" x 12.56" x 18.98" |
