Description
DMA 504 is a four-channel Class-D matrix amplifier providing 4 power outputs of 500 Watts each. Equipped with a powerful DSP platform, inputs and outputs can be managed in terms of routing and equalization. The complete set of processing functions includes PEQ, FIR filters, bass enhancement, limiters, compressors, and environmental equalization. Presets for RCF speakers are available on each channel for optimal acoustic performance and reliability. It can distribute 4 audio channels to other units through an analog audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Configuration is simple and user-friendly and can be carried out through either the front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, DMA 504 is ideal for a wide range of business music and installed sound applications.
Features
- 4 x 500 W Class-D power amplifier
- 20 ÷ 20000 Hz frequency range
- Full on-board processing
- RCF speakers’ presets
- Proprietary bass enhancer algorithm
- FiRPHASE linear phase filters
- Flexible and scalable multi-room architecture
- RDNet for networked management
- Remote controls and paging console accessories
Why We Like This
It combines matrix routing, DSP, and strong multi-channel power—perfect for complex, scalable installed audio systems.
FAQs
Q: What is a matrix amplifier?
It allows flexible routing of multiple inputs to multiple outputs across different zones.
Q: Can this be used for multi-room audio?
Yes. It supports scalable multi-room systems via its analog BUS.
Q: How is it controlled?

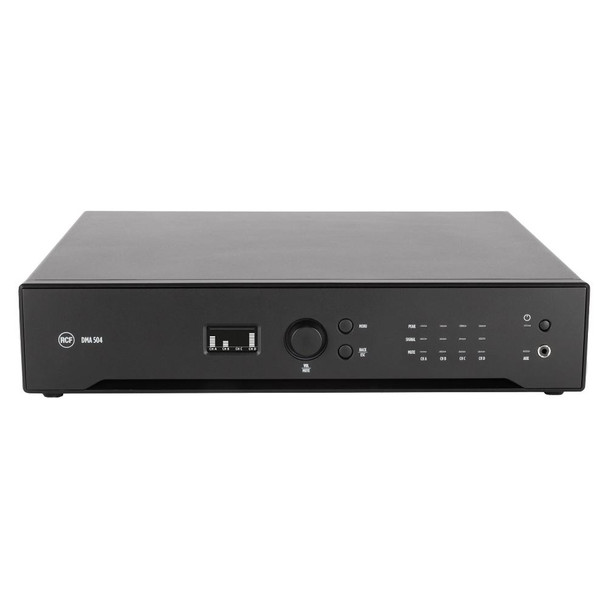

Through the front panel OLED display or remotely via RDNet software.
Based in Chicago, IL, Gear Club Direct supports professional audio installations with advanced, scalable system solutions.
Tech Specs
Amplifier Class: |
D |
Output Power (EIAJ 8:32 all channels driven): |
4 x 700 W @ 2.7 ohm 4 x 500 W @ 4 ohm 4 x 300 W @ 8 ohm 2 x 1100 W @ 4 ohm (bridge) 2 x 1000 W @ 8 ohm (bridge) |
Output power @ 70 V: |
2 x 1000 W @ 70 V |
Frequency Response (-3dB): |
20 Hz - 20000 Hz |
Distortion (THD+N) @ 1 kHz nominal power: |
<0.05 % |
Total number of inputs: |
5 |
Balanced: |
3 |
Unbalanced: |
3 |
Mono: |
2 |
Stereo: |
3 |
Line inputs: |
3 |
Line inputs: |
JACK, Picoflex, RCA |
Mic+Line inputs: |
1 |
Mic+Line connectors: |
Euroblock |
VOX: |
Yes |
Signal output number: |
1 |
Signal output connectors: |
RCA |
Power output connectors: |
Euroblock |
High-pass filter: |
80 Hz - 200 Hz |
Configuration: |
Front panel, PC Software |
RCF speakers presets: |
Yes |
Power consumption (MAX): |
800 W |
Safety agency: |
CE compliant |
Cabinet/Case Material: |
Metal |
Rack mounting: |
19", 2U |
Dimensions: |
3.78" x 16.93" x 14.17" |
Weight: |
13.67 lbs |
