Description

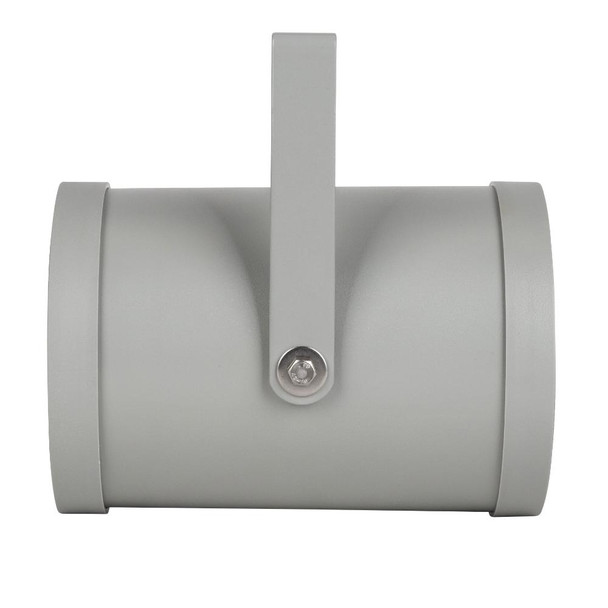

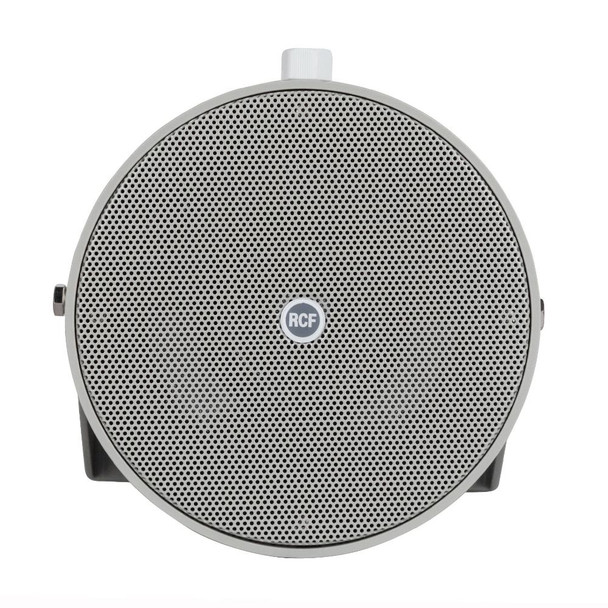

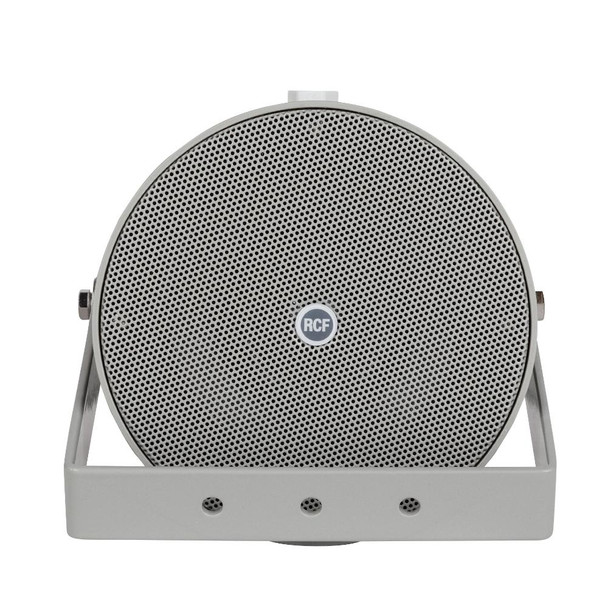

BD 42EN is a bidirectional sound projector featuring an elegant aesthetic and easy orientation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a cylindrical plastic body with aluminium grilles and U-bracket support. Thanks to its IP55 protection grade, it can be installed both indoor and outdoor.
Features
- 2x5" fullrange transducers.
- Power selectable (100 V): 12 W – 6 W – 3 W – 1,5 W.
- 91 dB sensitivity.
- Colour grey RAL 7035.
- Flameproof ABS body, aluminium grilles and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP55.
Why We Like This
- Bidirectional design simplifies coverage in long or open spaces
- IP55 rating supports indoor and outdoor installations
- EN54-24 certification for safety-focused systems
FAQs
Q: Is the BD 42EN suitable for outdoor installations?
A: Yes, it has an IP55 protection grade and can be used both indoors and outdoors.
Q: Can the output power be adjusted?
A: Yes, the built-in 100 V transformer offers selectable power taps at 12 W, 6 W, 3 W, and 1.5 W.
Q: Is this model certified for voice alarm systems?
A: Yes, it is EN54-24 certified and CE compliant.
Based in Chicago, IL, Gear Club Direct supports installers, audio professionals, and production teams every day.
Tech Specs
Frequency Response (-10dB): |
130 Hz - 15000 Hz |
Max SPL @ 1m: |
102 dB |
Max SPL @ 4m: |
90 dB |
System Sensitivity: |
90 dB |
System Sensitivity 1W @ 4m: |
78 dB |
Amplification: |
Full Range |
Power Handling: |
12 W |
Peak Power Handling: |
48 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
2 x 5.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
12 W - 833 ohm |
Power selection 2: |
6 W - 1667 ohm |
Power selection 3: |
3 W - 3333 ohm |
Power selection 4: |
1.5 W - 6667 ohm |
IP protection grade: |
IP 55 |
Safety agency: |
CE compliant |
EN54-24 certified: |
Yes |
CPR number: |
0068-CPR-234/2025 |
Cabinet/Case Material: |
ABS |
Hardware: |
Aluminum U bracket |
Grille: |
Aluminium |
Color: |
Grey - RAL 7035 |
Weight: |
3.66 lbs |
Width: |
7.87 inches |
Diameter: |
5.43 inches |
