Description

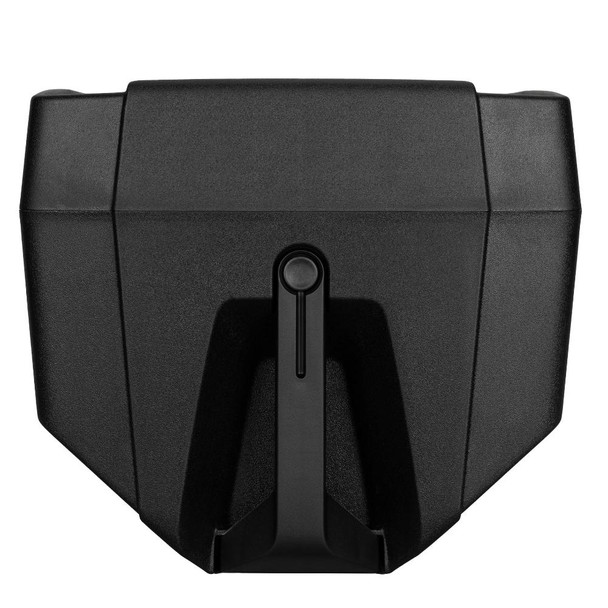

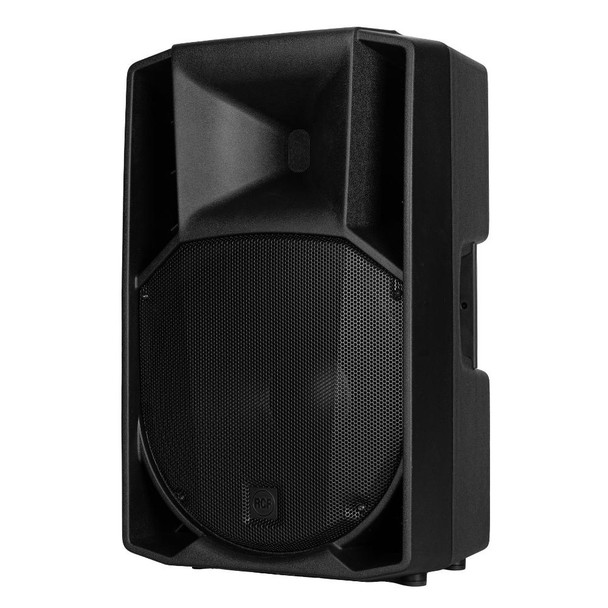

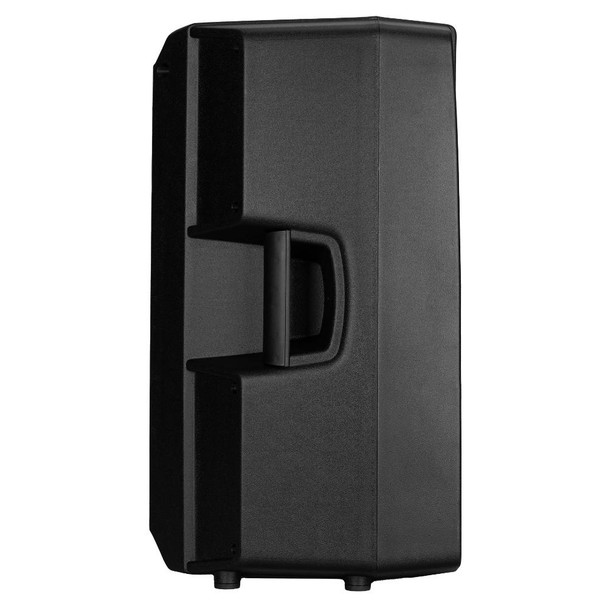

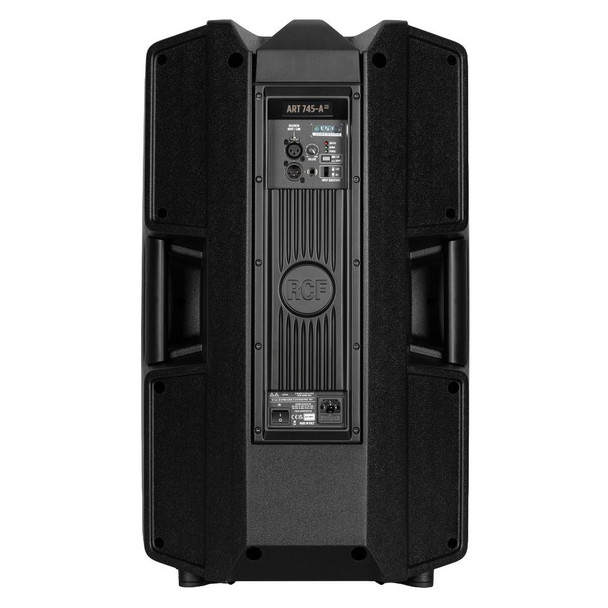

The ART 745-A MK5 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Features
- 133 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 4" Compression Neodymium Driver with Titanium diaphragm
- 15" Neodymium Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
Why We Like This
The larger 4" compression driver and neodymium components provide improved clarity and output compared to smaller models. The combination of DSP, high SPL capability, and durable construction makes it suitable for demanding live sound environments.
FAQs
Q: Is this speaker powered or passive?
It is an active speaker with a built-in 1400W amplifier.
Q: What makes this model different from other ART series speakers?
This model features a larger 4" compression driver and neodymium woofer for increased output and clarity.
Q: Can it be used as a stage monitor?
Yes. The cabinet design allows it to be positioned as a floor monitor.
Based in Chicago, IL, Gear Club Direct supports DJs, musicians, and audio professionals every day with reliable gear and knowledgeable service you can trust.
Tech Specs
Speaker Type: |
Active Loudspeaker |
Configuration: |
2-Way |
Total Output Power: |
700 W RMS / 1400 W Peak |
LF Driver: |
1x 15" / 38 cm Woofer Voice Coil: 3.5" / 88.9 mm |
HF Driver: |
1x 1" / 51 mm Mylar Dome Tweeter Voice Coil: 4" / 101.6 mm |
Frequency Range/Response: |
45 Hz to 20 kHz |
Maximum SPL: |
132 dB |
Coverage Angle: |
90° H x 60° V |
Protections: |
RMS, Thermal |
Dimensions: |
27.9 x 17.2 x 15.3" / 70.9 x 43.7 x 38.9 cm |
Weight: |
41.4 lb / 18.8 kg |
