Description

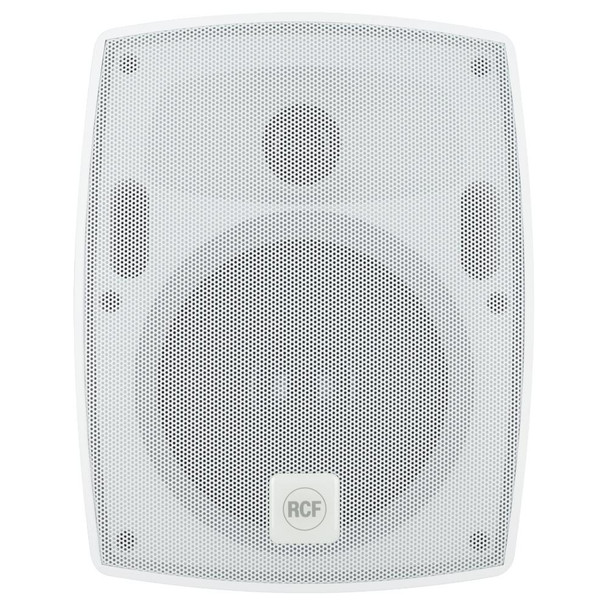

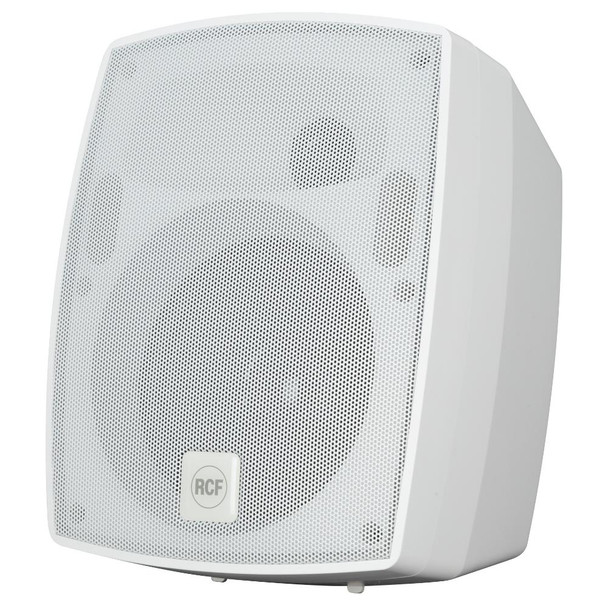

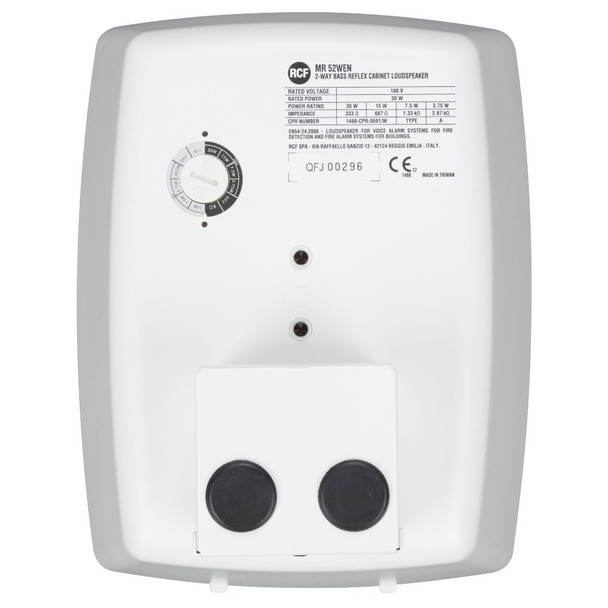

MR 52EN is a compact two-way speaker ideal for both alarm messages broadcasting and business music systems. The installation is fast and efficient using the adjustable mounting bracket (included). The enclosure is made of high-density ABS and includes a protective steel grille and connection cover. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Power selectable with dedicated switch.
Features
- 5" woofer with 1" dome tweeter
- Power selectable (100 V): 30 W – 15 W – 7.5 W – 3.75 W
- 89 dB sensitivity
- Colour white RAL 9016
- Flameproof ABS body, steel grille
- In/out ceramic terminal block
- Thermal fuse protection
Why We Like This
It’s a versatile solution that handles both voice alarms and background music, making it ideal for multi-purpose commercial installations.
FAQs
Q: What type of system is this speaker designed for?
It is designed for 100V line distributed audio systems.
Q: Can it be used for music as well as announcements?
Yes. Its 2-way design makes it suitable for both.
Q: Does it include a mounting solution?
Yes. An adjustable wall mounting bracket is included.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
80 Hz - 20000 Hz |
Max SPL @ 1m: |
103 dB |
Max SPL @ 4m: |
91 dB |
Coverage angle: |
180° |
System Sensitivity: |
89 dB |
System Sensitivity 1W @ 4m: |
77 dB |
Power Handling: |
30 W |
Peak Power Handling: |
120 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
30 W - 333 ohm |
Power selection 2: |
15 W - 667 ohm |
Power selection 3: |
7.5 W - 1333 ohm |
Power selection 4: |
3.75 W - 2667 ohm |
Dimensions: |
9.53" x 7.56" x 7.48" |
Weight: |
6.61 lbs |
