Description

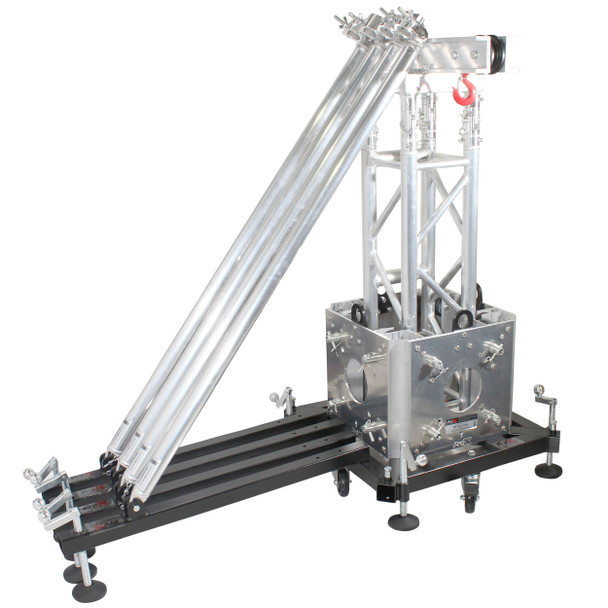

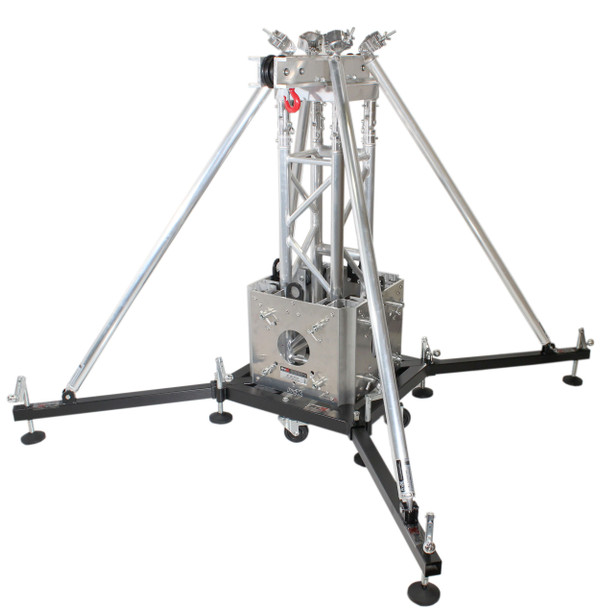

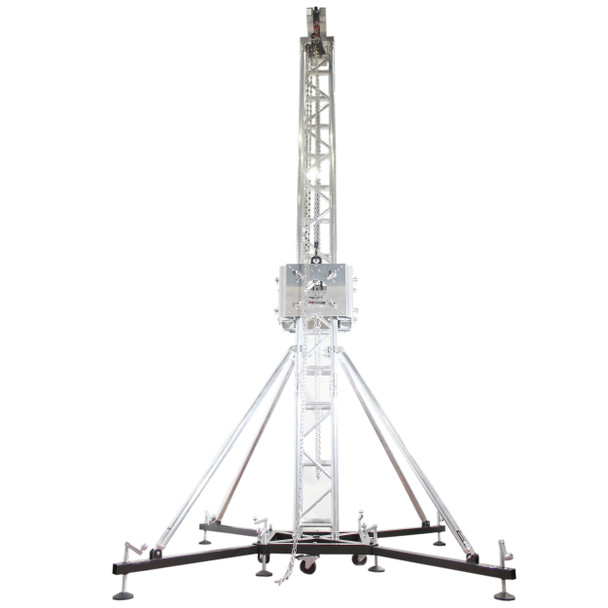

The ProX XTP-GSBPACK3 PRO is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' Ladder Truss Segment (3mm Wall). Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one climbable leg in the building and flying of a large scale truss, supporting mid to heavy-grade level stage installations. You get:

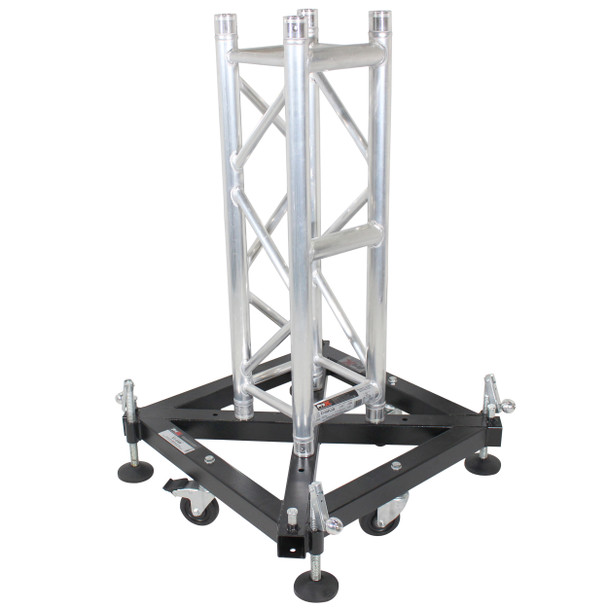

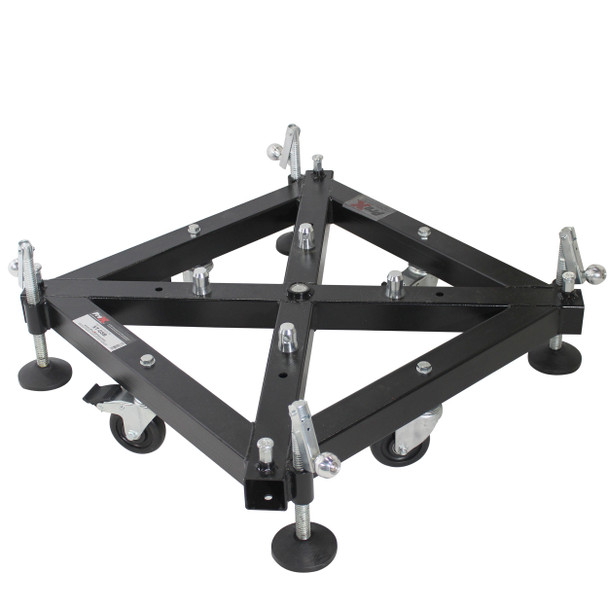

- XT-GSB MK2 Rigger Base, with Extendable Feet
- XT-SQPL328 3.28ft Long LADDER Truss segment (Longer segments available at extra cost)

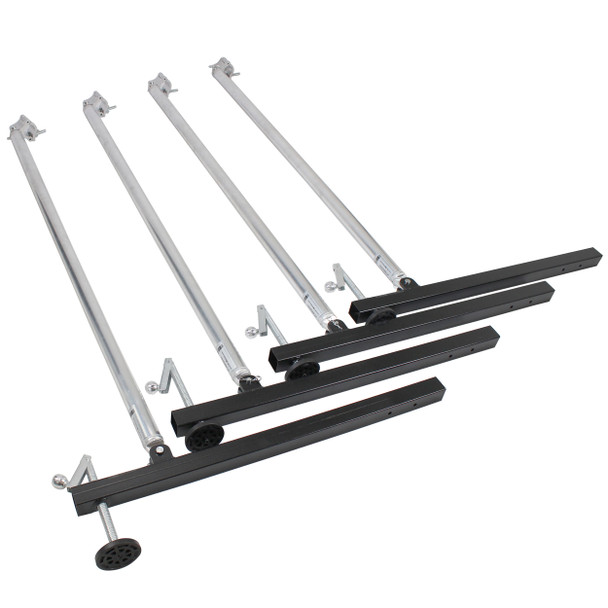

- XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps

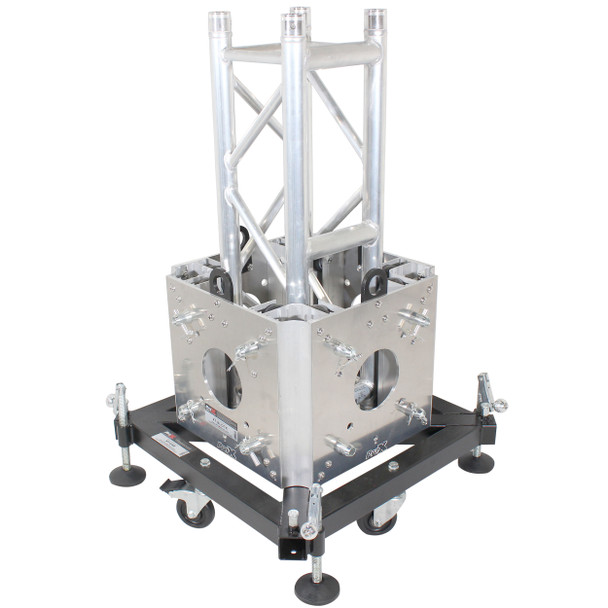

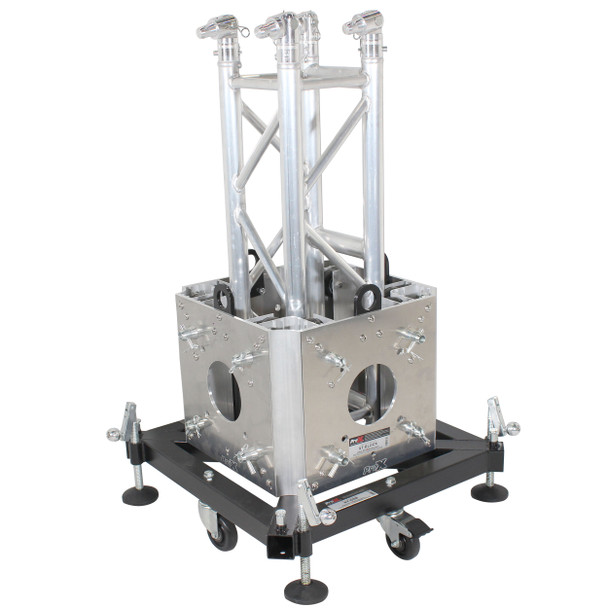

- XT-BLOCK Sleeve Block 4-Way Junction box

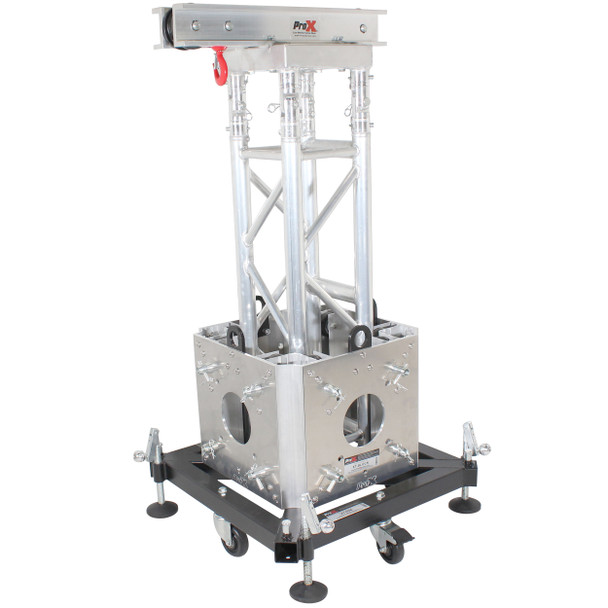

- XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels

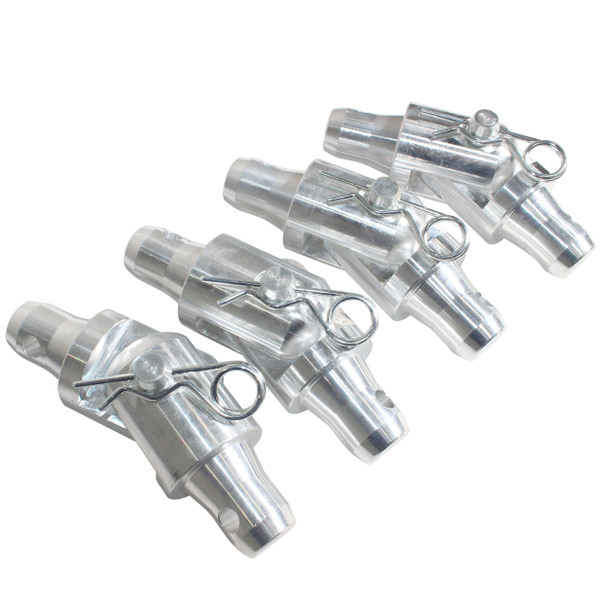

- XT-HINGE 4 Hinge block set
- (Lift Hoist NOT included)
ProX XT-SQPL series trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations where easy to climb corners are needed. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
Features
ProX Trussing provides high strength with exceptional quality control and excellent value.
- Manufactured to Exacting Specifications in our Own Factory!
- Built to exacting specifications
- TÜV Certified Welding
- Compatible with most Conical Coupled trussing
- Includes tapered shear pins with clips

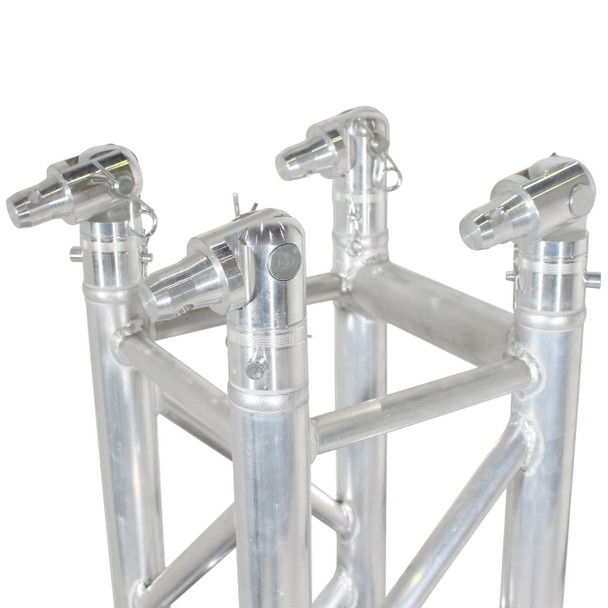

XT-SQPL SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb/9.5kg per 3.28 ft/1 meter
- Main Tube: 2in / 50mm
- Premium Tubing - Wall Thickness: 1/8in / 3mm
- Braces: .75in / 20mm
- Ladder Steps 2in / 50mm
- Ladder Step Spacing: 9.84in / 250mm
- Material: EN-AWT6 6082 Aluminum
- TÜV Certified Aluminium Welding
Why We Like This
This package combines reinforced ladder truss construction with the key components needed to build a professional climbable support tower for larger staging and rigging systems.
FAQs
Q: Is a hoist included with this package?
A: No, the lift hoist is not included.
Q: What type of truss is included?
A: The package includes a 3.28 ft XT-SQPL ladder truss segment with 3mm wall thickness.
Q: Is this compatible with other truss brands?
A: Yes, it is compatible with most conical coupled trussing systems using similar connector styles.
Based in Chicago, Gear Club Direct supports production crews, riggers, and staging professionals with dependable truss and structural support solutions every day.
Tech Specs
Exterior Dimensions: |
Base + 3.28 Ft. Truss |
