ProX Top Panel Top Pick Pro Point for Video Wall Truss Hanging Bracket Adjustable F34-44 / 12-16" Truss

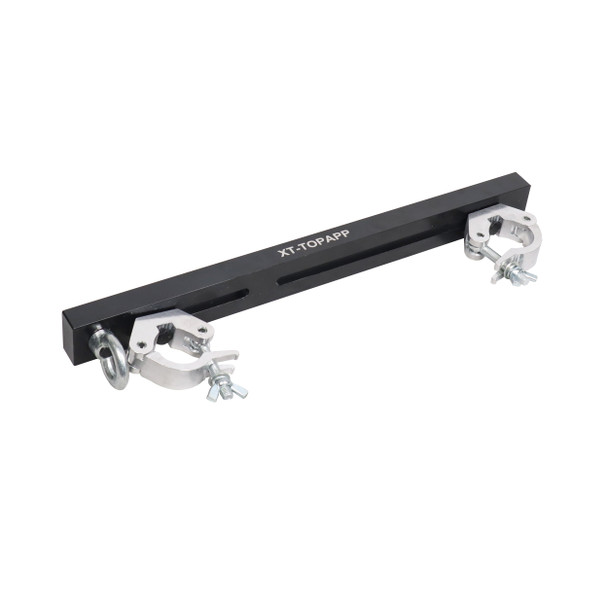

Introducing the ProX XT-TOPAPP Top Panel Top Pick Pro Point for Video Wall Truss Hanging Bracket, a purpose-built rigging solution designed to create secure, load-rated hanging points on the upper chords of box truss for professional video wall installations and overhead rigging needs.

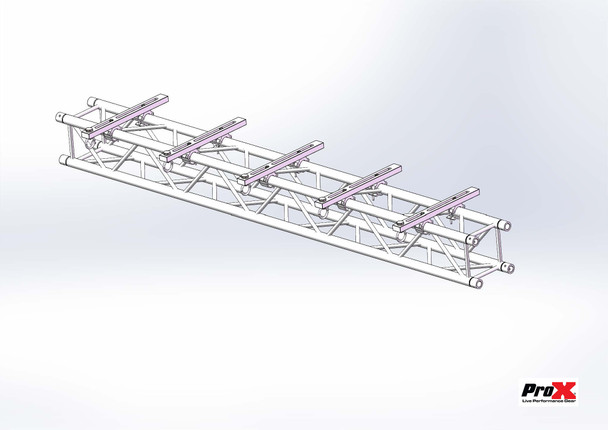

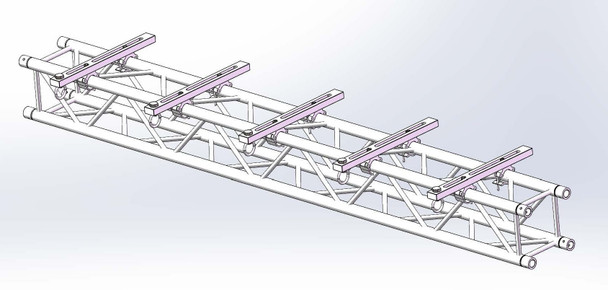

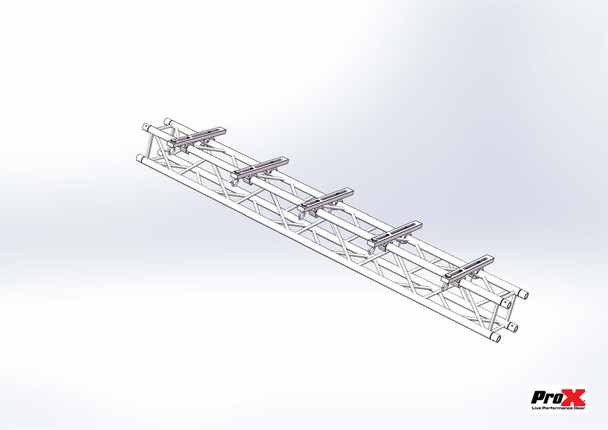

Built for Video Wall Rigging When you are hanging an LED video wall on truss, you need a connection point you can actually trust. The ProX XT-TOPAPP mounts directly on top of a horizontal run of truss and gives you a solid, reliable anchor point right where you need it. It works with F34 through F44 box truss as well as 12 to 16 inch bolt truss, so it covers a wide range of common truss configurations used in live events and installations.

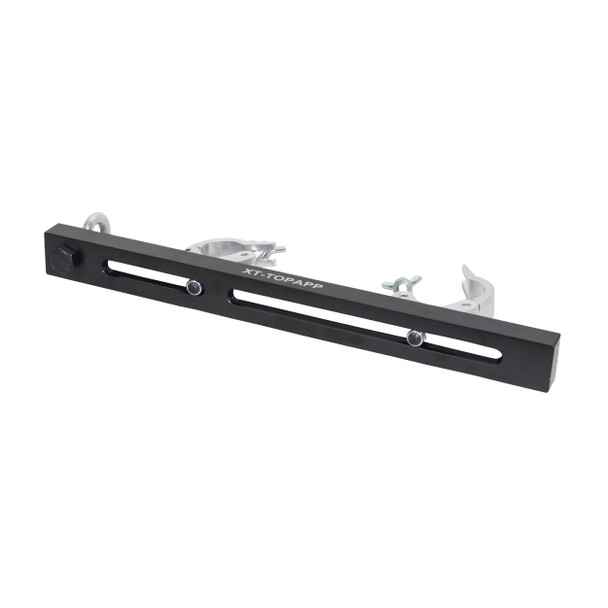

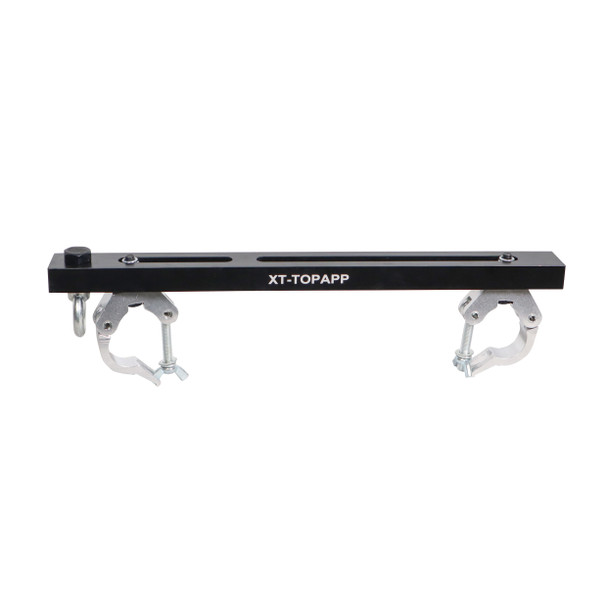

Adjustable Clamp Design The clamping system is built to adjust and fit around 2 inch (50mm) truss chords, which is a standard chord diameter across most box trussing in the industry. Two included ProX T-C4 load-rated, 360-degree wrap-around style coupler clamps secure the bracket to the truss. This lets you position the ProX XT-TOPAPP almost anywhere along the length of the truss to line up perfectly with your video panel rigging bars or other overhead loads.

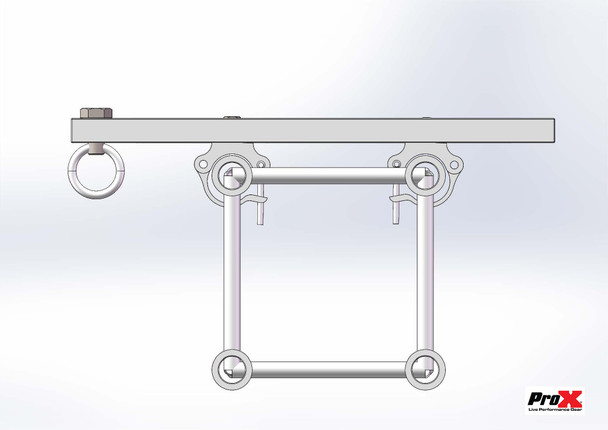

Load-Rated Eye Bolt At the center of the bracket sits a permanently mounted, load-rated steel eye bolt. It rotates freely so you can quickly connect rigging shackles, round slings, or wire rope without fighting the hardware. The eye bolt accepts shackles up to 5/8 inch and works with ProX XT-USHACKLE rigging shackles. The unit is rated to support weights up to 1,100 lbs (500 kg), making it a serious piece of rigging hardware for demanding production environments.

Material and Finish The main body of the bracket is machined from solid 6061 T-6 aluminum bar stock, paired with graded steel hardware for the fasteners and eye bolt. The aluminum parts carry a black anodized finish that keeps the hardware from standing out on dark installations and helps it blend into overhead rigging where visibility into the rig is a concern.

Compact and Practical The ProX XT-TOPAPP measures 6.00 inches high by 2.00 inches wide by 25.50 inches long and weighs 8.00 lbs. It ships in a single box at 9.00 lbs. That means it is easy to transport and store alongside your truss inventory without adding bulk to your load-in.

Broad Truss Compatibility The adjustable clamp range is one of the most practical aspects of this bracket. Whether you are running F34 conical truss, F44 ladder truss, or ProX BoltX 12 to 16 inch bolted truss segments, the ProX XT-TOPAPP is engineered to work across all of them. This kind of cross-compatibility is valuable when your rig changes from show to show or venue to venue.

Manufactured to ProX Standards Every ProX XT-TOPAPP is manufactured to the exacting specifications ProX has held to since 1984. The hardware is selected for strength and durability, and the design prioritizes both safety and ease of use in real production conditions.

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

ProX products are designed by a team of seasoned industry professionals who know firsthand what it means when power fails mid-show. Since 1984, ProX has built its reputation on one principle: every product must perform as hard as the professionals who depend on it. We listen to our customers, and their real-world feedback directly shapes the products we bring to market. The ProX XT-TOPAPP is a direct result of that collaboration. When you choose ProX, you are investing in four decades of hands-on expertise and a brand that has never stopped raising the standard for live performance gear.

Features

• Purpose-built top panel hanging bracket for video wall truss installations
• Rated to support up to 1,100 lbs (500 kg) for demanding production environments
• Adjustable clamp design fits F34 to F44 and 12 to 16 inch bolt truss configurations
• Fits 2 inch (50mm) truss chords for compatibility across most standard box trussing

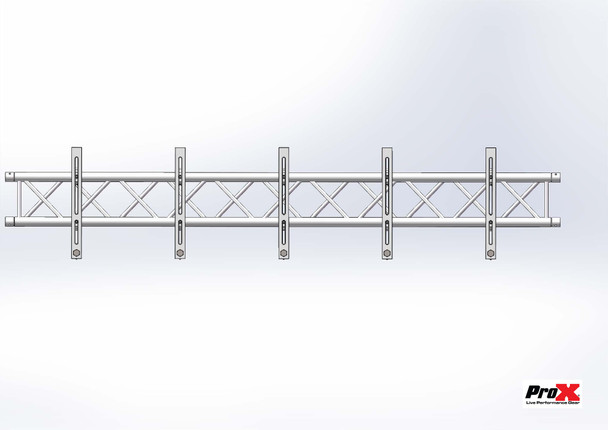

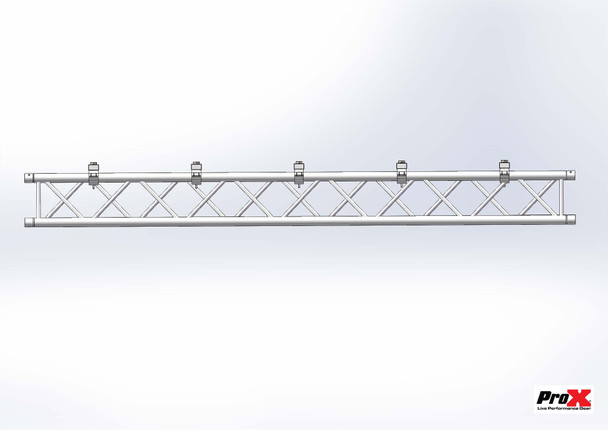

• Mounts almost anywhere along the truss length for precise positioning over video panel rigging bars
• Includes 2 ProX T-C4 load-rated coupler clamps with 360-degree wrap-around style
• Permanently mounted, load-rated rotating steel eye bolt for quick shackle, round sling, or wire rope connection
• Accepts shackles up to 5/8 inch , compatible with ProX XT-USHACKLE rigging shackles
• Machined from solid 6061 T-6 aluminum bar stock with graded steel hardware
• Black anodized aluminum finish blends into overhead rigging on dark installations
• Compact profile at 6.00"H x 2.00"W x 25.50"L, weighing 8.00 lbs
• Manufactured to ProX specifications for safety and durability

Exterior Dimensions & Weight

6.00"H x 2.00"W x 25.50"L - Weight: 8.00 lbs

Shipping Dimensions & Weight

Box 1 of 1: 2.50"H x 5.00"W x 25.00"L - Shipping Weight: 9.00 lbs
