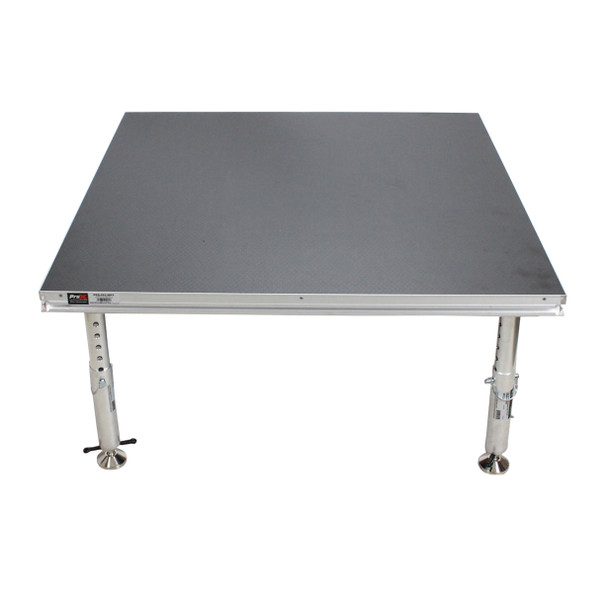

ProX StageQ 4 ft x 4 ft Stage Deck w/ 4 Adjustable 28–48 inch Legs

The ProX XSQ-4X4 StageQ™ 4 ft x 4 ft Single Stage Deck offers a durable, modular solution with a rugged Honeycomb Digital™ surface, adjustable 28–48" legs, and precision leveling feet that adapt to uneven ground. Ideal for fast, stable setups in mobile, rental, or permanent applications.

Portable and Versatile
Designed for adaptability, these stage platforms are a practical solution for small venues and both indoor and outdoor events. Telescoping legs adjust from 28" to 48" in height and feature an integrated security pin and cable system to lock each leg firmly in place. Each leg also includes a twist-adjustable foot, adding up to 2 extra inches of height—reaching a total elevation of 24". The extended foot design provides enhanced stability on uneven surfaces, making these stages ideal for mobile, modular, or temporary setups.

Signature Protection

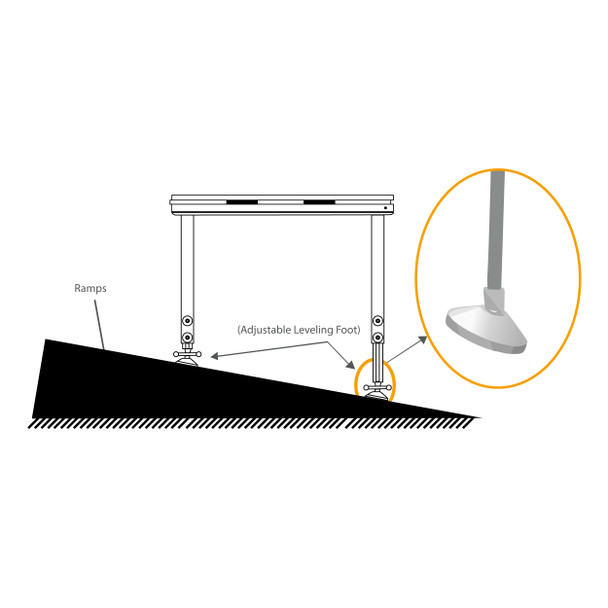

ProX stage platforms feature the Signature Honeycomb Digital™ Surface, constructed with a rugged, hexagonal-patterned High-Pressure Laminate (HPL) top that delivers superior grip and durability. Built for both indoor and outdoor environments, each unit is supported by adjustable telescoping legs secured with a locking pin system. Precision leveling rubber feet allow for micro-adjustments on irregular terrain, ensuring a secure and level stage every time.

The ProX StageQ™ platform surface is bonded to the 22mm (7/8") birch plywood deck using a high-temperature heat press lamination process. This method fuses the Honeycomb Digital™ high-pressure laminate directly to the wood under controlled heat and pressure, creating a permanent bond that will not peel, bubble, or separate under normal use. Unlike standard adhesives, this heat-activated bonding process ensures maximum surface integrity, delivering a durable, impact-resistant top layer that stands up to heavy foot traffic, equipment loads, and demanding indoor or outdoor event environments.

Includes:
(1) XSQ-4X4 Stage Platform Unit
(1) XSQ-2848X4 Set of  28"-48" Telescoping Legs
(2) XSQ-C11MK2 Lower deck Security Clamp
(1) XSQ-C05 Deck Leveler Joint

Also available in
XSQ-4X8MK3  4' x 8' StageQ Single Unit
XSQ-2X8MK2  2' x 8' StageQ Single Unit
XSQ-2X4MK2  2' x 4' StageQ Single Unit
XSQ-4X4MK2  4' x 4' StageQ Single Unit

Specifications
4' x 4' Modular Section (47.25" x 47.25")
7/8" (22 mm) Plywood

Features

• AAA Grade 7/8" 22 mm Exterior Rated Birch Plywood Deck Construction with Minimal Voids
• Signature Honeycomb Digital™ High Pressure Laminate Surface for Superior Grip and Durability
• High Strength Aluminum Frame with Precision TIG Welded Corners
• ProX Innovative 4 Leg Support Design for Improved Load Distribution and Stability
• Six Telescoping Legs Adjustable from 28" to 48" Height
• Integrated Locking Pin System to Secure Leg Height During Use
• Micro Adjustable Leveling Feet with M16 Thread Bolts for Uneven Terrain
• 1500 lb Maximum Load Capacity per 4 ft x 4 ft Section Evenly Distributed
• Suitable for Indoor and Outdoor Stage Installations
• Portable Modular Design for Quick Setup and Breakdown
• Ideal for Concert Stages Corporate Events DJ Platforms Schools and Houses of Worship
• Multiple Platforms Can Connect to Form Larger Stage Configurations
• TÜV Rheinland Tested and Certified for Safety and Quality
• Steps Guardrails and Stage Skirts Available Separately
• Engineered and Designed by ProX Live Performance Gear
• ProX 1 Year Limited Warranty

Exterior Dimensions & Weight

STAGE: 3.50"H x 47.00"W x 47.50"L - Weight: 68.00 lbs
LEGS: 7.50"H x 7.50"W x 28.00"L - Weight: 23.00 lbs
