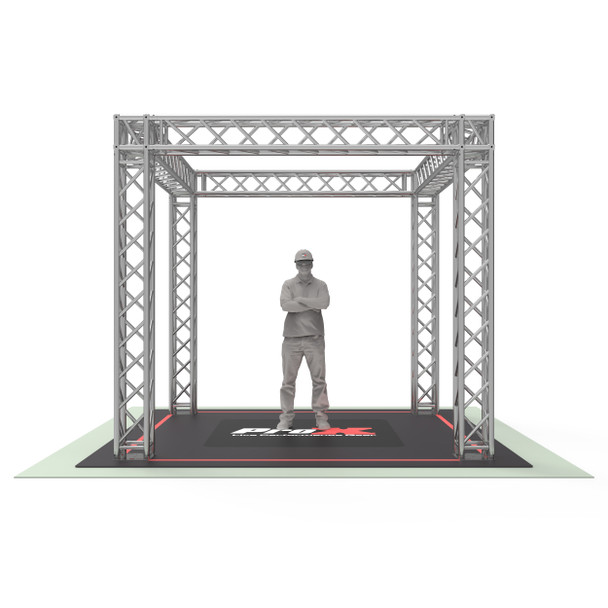

ProX Tradeshow Booth 10.10 W X 10.10 L X 9.20 FT H - K SERIES Light Duty

ProX KTP-E10109 10' x 9' Tradeshow Booth K-Truss Package F34 Truss System Ideal for Tradeshow Booths, Marathon, Biking Events, Outdoor Events, Lectures, Speeches, Churches, Weddings, Projector Screens, and more. ProX KT Series F34 Aluminum Truss | 1.5mm Wall is built to the highest standards of safety and performance.

It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ Totems, architectural non-loadbearing designs, and much more.  K-Truss is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE to view or download K-Truss™ Loading Chart.

• Tolerance Free Standard Conical connector
• Main Tube wall thickness of .06in (1.5mm)

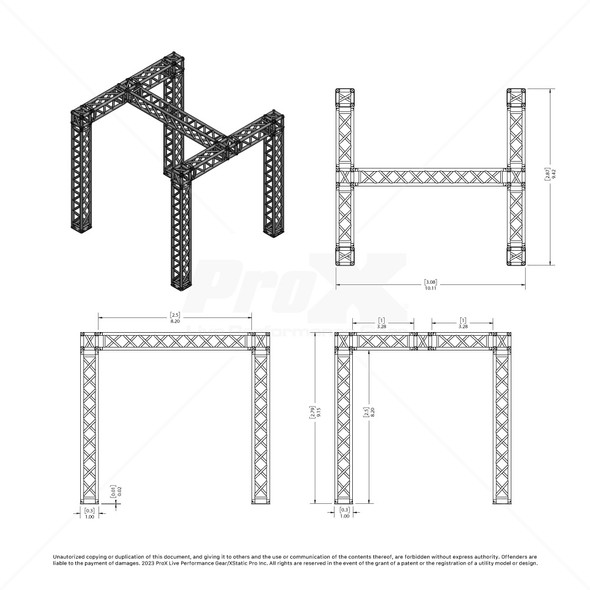

KT-F34 SERIES DIMENSIONS:

• Width: 11.42in / 290mm
• Height: 11.42in / 290mm
• Main Tube: 2in / 50mm
• Wall Thickness:  .06in / 1.5mm
• Braces:  .63in / 16mm

_{K Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.}
