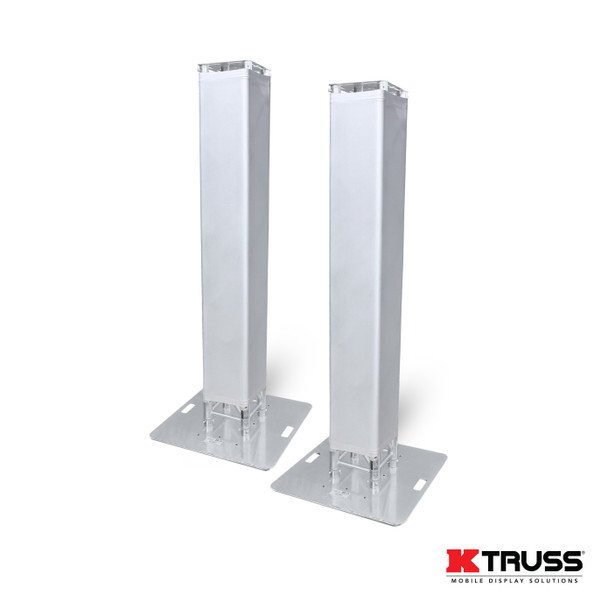

ProX K-Truss 8.20 Lightweight Square Truss Totem Full Package Includes White Scrim, Top Plate and Base Plate

ProX KT-SQ820TOTEMTCX2 K-Truss 8.20 Lightweight Square Truss Totem Full Package Includes Top Plate Base Plate and Bag. This lightweight truss totem package is ideal for creating rugged Stage and Lighting displays. It’s ideal for mounting Moving-Heads, LED Par cans, Lighting Bars, and more. K-Truss is compatible with most popular truss brands and can be used in conjunction with our standard F34 Truss as non-structural truss sections*. This is a great package for Mobile DJs and Stage Designers that want an all-in-one inclusive rugged totem stand.

Package Details
This package includes two K-Truss 8' ft Truss F34 Conical Connection Segments. Two 12"-inch Top Plates with CNC drilled offset mounting slots and holes. Two 30"-inch Aluminum 6mm Base Plates with offset holes that allow you to mount your included segments in the center, left, or right of the baseplate. All the connectors you need come with this Totem package. Two white lycra spandex covers are included to give your truss totems a finished look that hides cables and diffuses your own lighting.

About K-Truss
K-Truss is our economy light-duty truss segment line. You can get the best display solution for mounting lightweight LED lighting fixtures, banners, displays, and more by utilizing the F34 Trussing system. K-Truss gives you an advantage over investing in typical heavy-duty structural truss segments which can get pricey.

K-Truss is the ultimate solution when it comes to building trade show booths, finish line mile markers, Retail Kiosks, pop-up shops and temporary merchandise, outdoor festival booths, and more.
_{WARNING: These scrim products are for temporary use ONLY and NOT for permanent installation. Keep away from open flames, sparks, direct heat, or any type of electrical fixtures and outlets. ProX Live Performance Gear is not responsible for any bodily injury or property damage caused by misuse of this product. Scrims can be machine washed and air-dried only. Do not use harsh chemicals or chlorine bleach. Factory fire retardant loses effectiveness with washing and over time. Re-treat as needed.}

_{*DISCLAIMER: ProX Live Performance Gear® (XStatic Pro, Inc. ) is not responsible for improper use or overloading by end-users! Consult an engineer for specific applications. This product has a reduced load chart from ProX Live Performance Gear® and is not intended for replacement or substitute for any standard load-bearing truss segments. The third-party products shown are for display purposes and are not being advertised, nor is it included with this package.}

Features

• Tolerance Free Standard Conical Connector
• Material: EN-AW T6-5052 Aluminium Display Grade Quality
• Constructed to the highest quality by certified welders
• K Series Trussing is Economic Light-Structural
• Primarily designed for display structures.
• Engineering Drawings and Design Copyright
• © 2019 by ProX Live Performance Gear®

Exterior Dimensions & Weight

XTC-SQ820TS-W (2): 1.50"H x 8.00"W x 8.00"L - Weight: 1.00 lbs XT-BP30AMK2 (2): 2.50"H x 30.00"W x 30.00"L - Weight: 23.00 lbs KT-F34SQ820 (2): 11.42"H x 11.42"W x 98.40"L - Weight: 22.00 lbs

Shipping Dimensions & Weight

Box 1 of 4: XTC-SQ820TS-W (2 boxes) 2.00"H x 8.50"W x 8.50"L - Shipping Weight: 1.25 lbs Box 2 of 4: XT-BP30AMK2 (2 boxes) 3.00"H x 31.00"W x 31.00"L - Shipping Weight: 25.00 lbs Box 3 of 4: Pack of 2 5.00"H x 14.00"W x 14.00"L - Shipping Weight: 10.00 lbs Box 4 of 4: KT-F34SQ820 (2 boxes) 12.00"H x 12.00"W x 100.00"L - Shipping Weight: 24.00 lbs

Freight Handling Unit

Handling units: 1 pallet/skid
Pieces on pallet: 7 cartons
Recommended freight dimensions: 102.00"L x 40.00"W x 30.00"H
Tight custom skid estimate: 100.00"L x 42.00"W x 30.00"H
Total carton weight: 110.50 lbs
Pallet/skid weight: 40.00 lbs
Total freight weight: 150.50 lbs
Total cube: 20.74 cu ft
Density: 5.33 lbs/cu ft
Estimated freight class by density: Class 175

Carton breakdown:
2 cartons - XTC-SQ820TS-W - 8.50"L x 8.50"W x 2.00"H - 1.25 lbs each
2 cartons - XT-BP30AMK2 - 31.00"L x 31.00"W x 3.00"H - 25.00 lbs each
1 carton - Pack of 2 - 14.00"L x 14.00"W x 5.00"H - 10.00 lbs each
2 cartons - KT-F34SQ820 - 100.00"L x 12.00"W x 12.00"H - 24.00 lbs each

Final pallet dimensions must be measured after the freight is stacked and wrapped.
