ProX Ground Support Stabilizing 1M / 3.28 Ft. T-Base for LED Screen Wall Stacking for I-Beam F32 or12" Bolted I-Beam Truss Segments

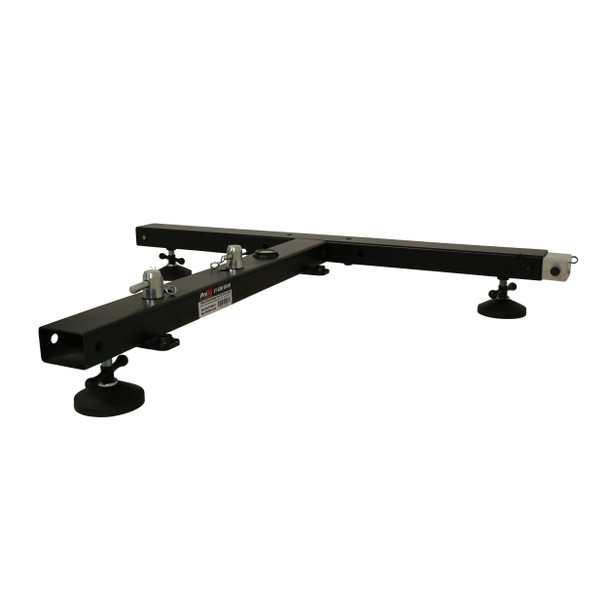

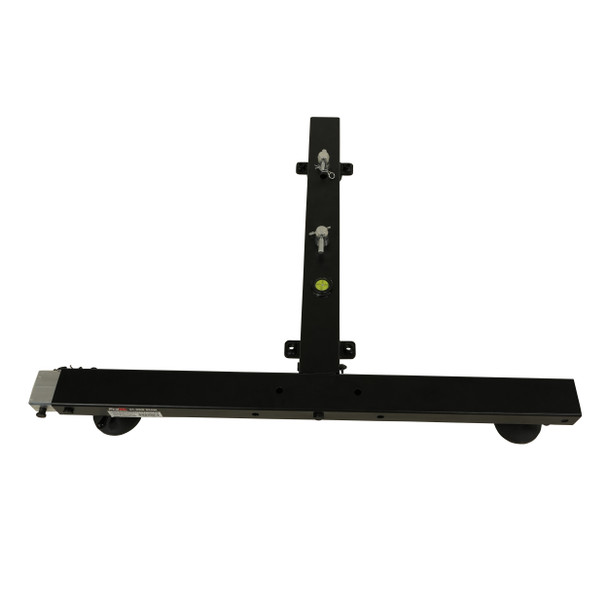

The ProX XT-GSWBEAM Ground Support Stabilizing T-Base is a professional-grade foundation solution designed for ground-stacked LED video wall systems that require stability with a minimal footprint. Engineered for modern production workflows, this compact T-Base significantly reduces storage space, cargo volume, and setup time compared to traditional bulky ground support stands.

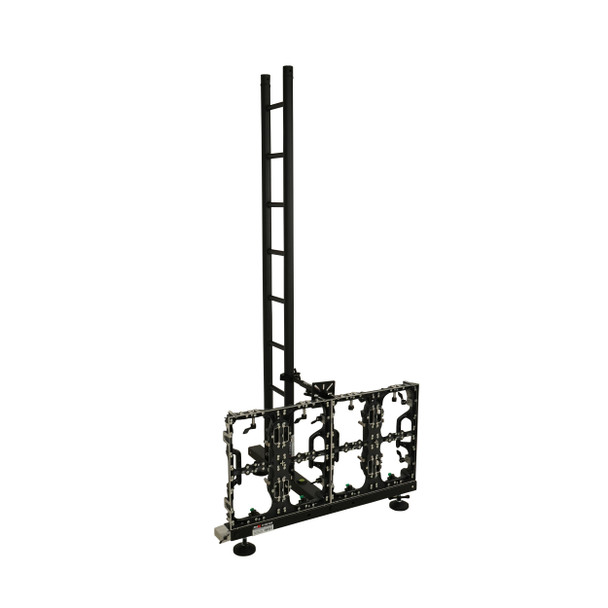

Designed for fast and efficient deployment, the XT-GSWBEAM allows production crews to assemble LED panel walls quickly and with less effort, making it ideal for touring productions, rental inventories, live events, broadcast environments, and permanent installations. The center-mounted design supports one vertical F32 I-Beam or Bolt I-Beam truss segment, creating a strong and balanced vertical support structure for LED wall stacking applications.

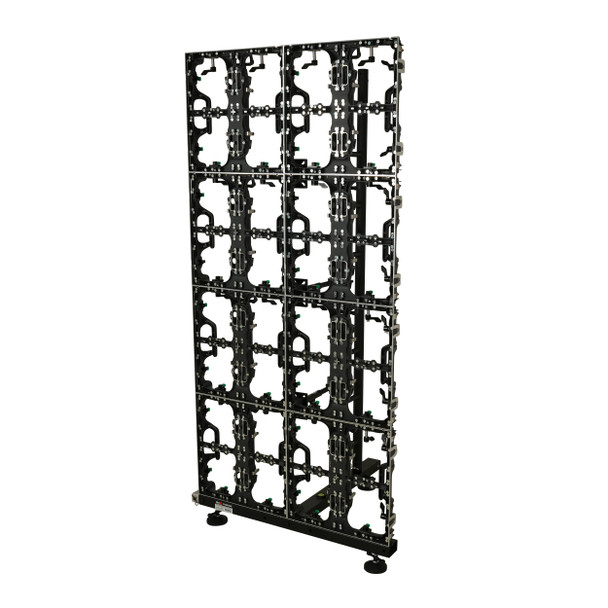

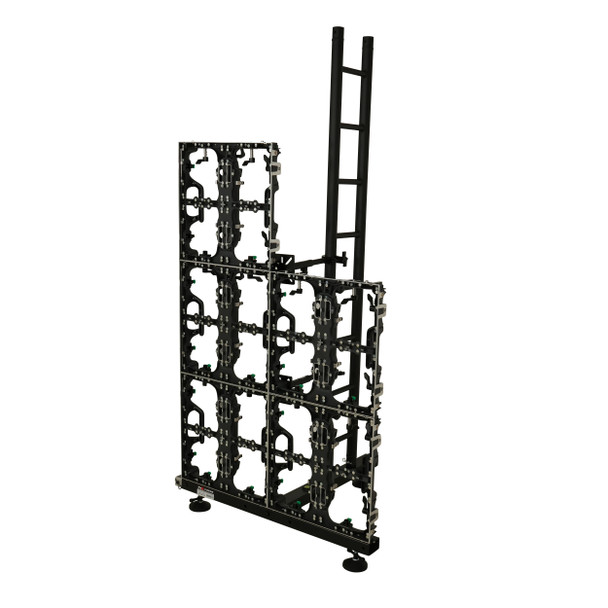

Each XT-GSWBEAM is suitable for supporting up to two vertical columns of 500 × 500 mm or 500 × 1000 mm LED panels, depending on total panel weight, wall height, ballast, and engineering approval. Multiple XT-GSWBeam bases can be linked together to accommodate longer and wider LED wall configurations, making the system highly scalable and adaptable to various production needs.

Constructed from rugged, heavy-duty steel, the XT-GSWBeam is built to withstand the demands of professional staging and long term use. Each base is equipped with three height-adjustable leveling feet, allowing precise leveling on uneven surfaces. The leveling feet can be removed when bolting the base directly to the floor, making the XT-GSWBeam suitable for permanent or semi-permanent installations.

For complete LED wall assembly, this base is designed to be used with ProX XT-TC5LEDPA or XT-TC5LEDPABLK Telescoping LED Wall Panel Pole Clamps (sold separately), enabling accurate LED panel positioning and secure attachment.

The XT-GSWBeam Ground Support Stabilizing T-Base is a critical structural component for delivering safe, clean, and professional LED wall installations, especially in environments where space efficiency, transport optimization, and fast setup times are essential.

DISCLAIMER: It’s recommended that they be weighted down at the rear of the base as a safety measure to prevent accidents.Truss, clamps, video panels, and any other third-party products shown are for display purposes only and are not included. To secure your system and prevent falling over of your led support system ballast is needed on every base unit (each meter). The amount of ballast is depending on the height and weight of your screen.

Recommended Ballast loading per base unit every Meter (XT-GSWBeam):

Height Screen Ballast LBS
2.00 Meter 50 lbs
2.50 Meter 75 lbs
3.00 Meter 100 lbs
3.50 Meter 150 lbs
4.00 Meter 175 lbs

Features

• Truss Compatibility: Designed to support one vertical F32 I-Beam truss segment (hardware included) or 12-inch bolted I-Beam truss (bolt truss hardware XT-BTLBX4-G8 sold separately) .
• Purpose-Built LED Wall Ground Support: Engineered specifically as a foundation base for ground-stacked LED video wall systems , delivering reliable structural support for professional productions.
• Center-Mount Truss Interface: Center-mounted truss connection provides a balanced and secure load path from the vertical truss to the floor.
• Compact, Space-Efficient Footprint: 39" (1.00M) base length and 30" (0.75M) Deep with a low-profile T-Base design that maximizes stability while minimizing floor space, storage, and transport volume—ideal for touring and rental inventories.
• Integrated Leveling System: Includes a 3.28 ft (1,000 mm) leveling bar combined with height-adjustable rubber leveling feet for precise setup on uneven or imperfect surfaces.
• Installation Flexibility: Leveling feet can be removed to allow direct bolting to the floor , making the base suitable for temporary, semi-permanent, or permanent installations.
• Scalable & Linkable Configuration: Multiple T-Bases can be mechanically linked to support extended LED wall widths and scalable ground-stack configurations.
• Heavy-Duty Steel Construction: Fabricated from professional-grade steel to withstand repeated load-ins, load-outs, and long-term use in demanding A/V, touring
• Quick-Disassembly Design: T-Base can be easily disassembled by removing two locking pins, allowing compact storage and efficient transport.
• System Compatibility: Fully compatible with the ProX XT-GSWSB2440 Adjustable Height LED Panel Ground Support Stand for modular LED wall configurations.

Shipping Dimensions & Weight

Box 1 of 1: 43.00"H x 4.00"W x 13.00"L - Shipping Weight: 33.50 lbs
