Description

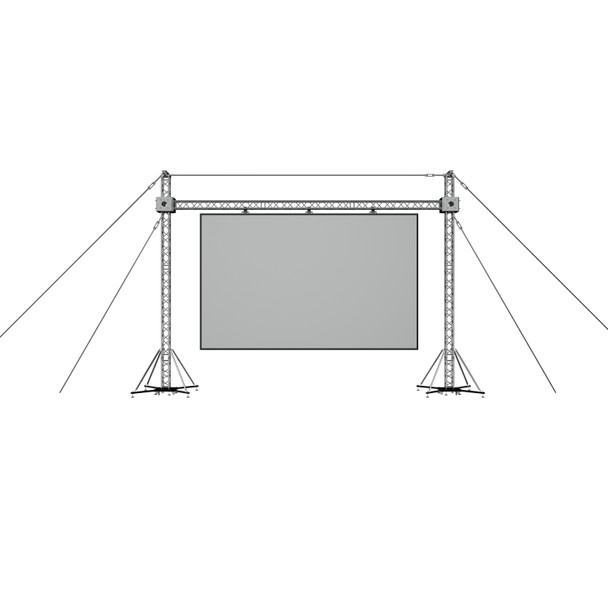

ProX XTP-GS3023 LED Screen Display Panel Video Fly Wall Truss Ground Support System 30W x 23H Ft with Hoist. The ProX XTP-GS3023 LED Panel Support System package measures 30'W x 23'H and is constructed using our heavy-duty Aluminum XT truss, combined with our modular ground support towers and the GSBPACK3 Lift System. (LED WALL NOT INCLUDED) The ProX XT-SQ Series Truss is one of the most trusted staging support systems in the industry, built to the highest standards of safety and performance. It's a rugged and durable trussing solution, perfect for live outdoor productions, nightclubs, and permanent installations. The ProX XT Series Truss compares favorably to other major trussing manufacturers. We manufacture it with EN-AWT6 6082 Aluminum for safety and strength.
Our XT series F34 square truss utilizes a standard conical connector system, which easily connects with other brands of trusses of the same size and connector type. It is available in various lengths to suit your designs. Our outstanding quality control and manufacturing techniques ensure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors, and accessories that enhance stability while providing limitless design configurations.
XT-SQ Series Specifications:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .08in
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
Package Contents
- XT-SQ984 (7) 9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
- XT-MCH1TX2-30FT (1) Pair of 1 Ton Manual Chain Hoist with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
- XT-BLOCK-MK2 (2) Ground Support Sleeve Block 4 way corner for F34 Truss Segment Systems for roof system Structure Hoists Applications
- XT-TOPCM (2) Top Truss Section for Electric Motor or Manual Chain Hoist
- XT-HINGEX4 (2) Pack of 4 Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
- XT-GSBMK3 (2) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
- XT-SQ328 (2) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
- XT-GSOUTS3X2 (4) Ground Support Outrigger Stabilizer Set for XT-GSB Tower Base – Set of 2
Why We Like This
The XTP-GS3023 combines modular ground support towers, F34 truss, and manual lifting systems into a complete professional LED wall support package suitable for demanding production environments.
FAQs
Q: Are LED panels included?
A: No. LED wall panels are not included with this system.
Q: What are the overall system dimensions?
A: The system measures approximately 30 ft wide by 23 ft high.
Q: Are chain hoists included?
A: Yes. The package includes a pair of 1-ton manual chain hoists with 30 ft chains.
Q: Is this compatible with other F34 truss systems?
A: Yes. The system uses standard conical connectors compatible with many F34 truss systems.
Based in Chicago, Gear Club Direct supports staging professionals, production crews, and rigging teams with dependable truss, lifting, and LED wall support solutions every day.
Tech Specs
Exterior Dimensions: |
30W x 23H Ft with Hoist |
