Description

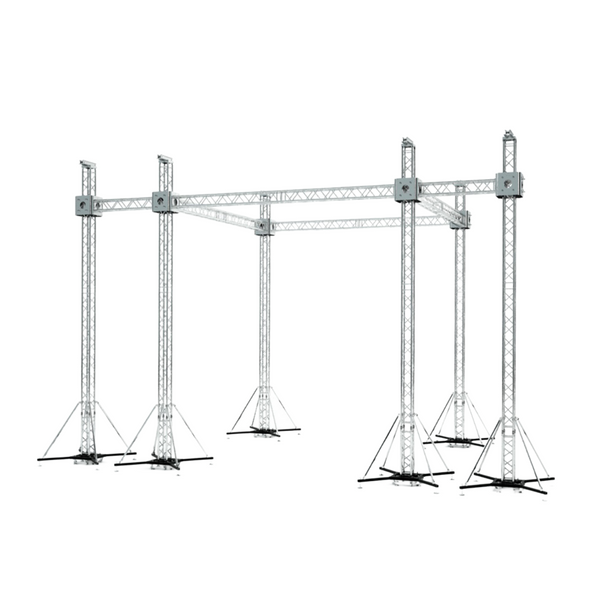

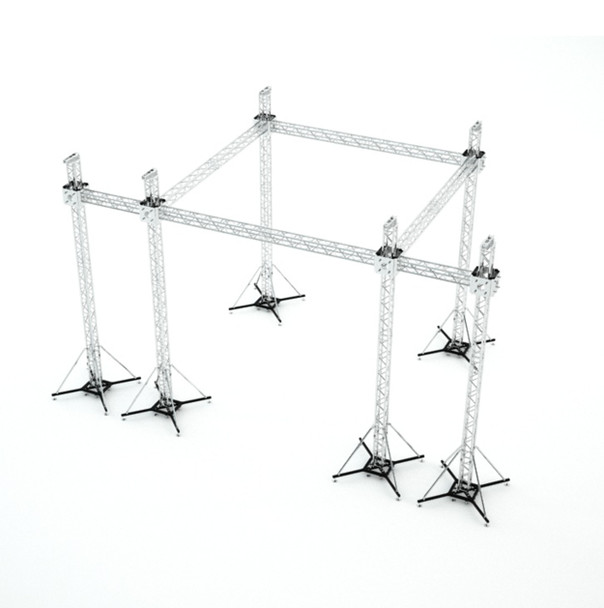

The ProX XTP-GS202023SPW Stage Roofing System with Speaker Wings is 20'W x 20'L x 23'H and Includes 6 Chain Hoists. The 30-foot by 20-foot trussing area is large enough to cover a small live band or a large DJ production set up and the 7-foot wings are more than enough to hang speakers and lighting fixtures. You can hang lighting, curtains, video screens and speakers from the truss system and adjust the height up to 23 feet high. Scalable to smaller staging needs. The entire structure is lifted and held in place with Six (6) chain hoist lifting stations that are the stands that support the entire system. The stage roof trussing is designed to hold lighting and audio gear evenly distributed around the stage roofing system. Guy wires required for most installations!
In this package, you have everything you need for a complete roofing solution:
- 6 - XTP-GSBPACK3 Truss Tower Lift Systems,
- ​20 - XT-SQ984 9.84ft (3.00m) Square Truss Segment,
- 2 - XT-SQ656 6.56ft(2.00m) Square Truss Segment,
- 3 - XT-MCH1TX2-30FT Sets of 2 1T Manual Chain Stage Hoist with 30ft Chain,
ProX XT-SQ series trussing is a rugged and durable trussing package solution. Perfect for live outdoor or indoor productions, exhibitions, as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of single tubes, mounting plates, clamps and accessories that allow limitless design configurations to suit your needs. Always consult an engineer for complex designs!
Features
- Manufactured to Exacting Specifications in our Own Factory!
- Tolerance Free Standard Conical Connectors
- Truss Main Tube Wall Thickness of .08in / 2mm
- Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
- Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
- TUV Certified Aluminium/Steel Welding
Package Contents
- XT-SQ984 (20) 9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
- XT-SQ656 (2) 6.56 Ft - 2.00 M F34 Square Truss Segment | 2 mm Wall
- XT-MCH1TX2-30FT (3) Pair of 1 Ton Manual Chain Hoist with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
- XT-BLOCK-MK2 (6) Ground Support Sleeve Block 4 way corner for F34 Truss Segment Systems for roof system Structure Hoists Applications
- XT-TOPCM (6) Top Truss Section for Electric Motor or Manual Chain Hoist
- XT-GSBMK3 (6) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
- XT-SQ328 (6) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
- XT-HINGEX4 (6) Pack of 4 Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
- XT-GSOUTS3X2 (12) Ground Support Outrigger Stabilizer Set for XT-GSB Tower Base – Set of 2
Why We Like This
The XTP-GS202023SPW combines a professional F34 roof structure with integrated speaker wings and six lifting stations to create a scalable stage roofing solution suitable for demanding live production environments.
FAQs
Q: What are the overall system dimensions?
A: The system measures approximately 20 ft wide × 20 ft deep × 23 ft high.
Q: How many chain hoists are included?
A: The system includes six manual chain hoists.
Q: What are the speaker wings used for?
A: The side wings provide additional hanging positions for speakers, lighting fixtures, and production accessories.
Q: Is this compatible with other F34 truss systems?
A: Yes. The system uses standard conical connectors compatible with many F34 truss systems.
Based in Chicago, Gear Club Direct supports staging professionals, production crews, and rigging teams with dependable truss, roofing, and lifting systems for live event production every day.
Tech Specs
Exterior Dimensions: |
20'W x 20'L x 23'H |
