Description

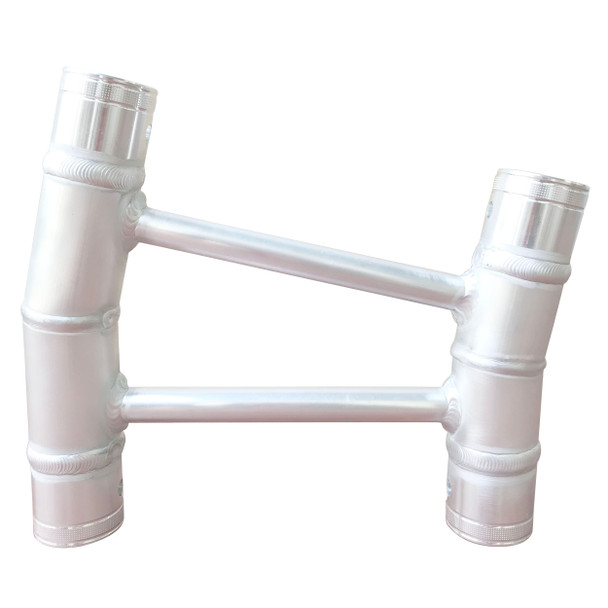

This ProX XT-F32-12D 12 Degree F32 Truss accessory is a two way, fixed angle, corner connector that can be used singularly or in multiples to create angles and decorative designs not available with normal corner units while still maintaining excellent weight loading capabilities. ProX Design Copyright © 2018
ProX Truss specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.
ProX Trussing provides high strength with exceptional quality control and excellent pricing.
- We own the factory, not generic trussing!
- Built to exacting specifications
- TUV Certified Welding & Processes
- Compatible with most Conical Coupled F32 trussing
- Includes tapered shear pins with clips and 2 conical couplings
Features
- Fabricated by Certified TUV welders
- Equipped with connecting hardware
- Overall width-11 7/16" (290mm)
- Outer diameter tubing-2" (50mm)
- Diagonal bracing-3/4" (20mm)
- Wall thickness-0.08" (2mm)
- Aluminum Alloy EN AW-6082 T6
- F32 Aluminum Truss
- Aluminum Brush Finish
Why We Like This
The 12-degree angle design makes it easier to create more dynamic truss layouts and roof-style configurations while maintaining modular compatibility.
FAQs
Q: What is this truss connector used for?
A: It is used to create fixed 12-degree angles in F32 truss systems for custom and decorative layouts.
Q: Does it include connection hardware?
A: Yes, it includes tapered shear pins with clips and two conical couplings.
Q: Is it compatible with other F32 truss brands?
A: Yes, it is compatible with most conical coupled F32 truss systems using industry-standard dimensions.
Based in Chicago, Gear Club Direct supports DJs, installers, production teams, and event professionals with dependable truss and staging solutions every day.
Tech Specs
Exterior Dimensions: |
4.00"H x 11.00"W x 11.50"L |
Weight: |
2.00 lbs |
