Description
Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming.

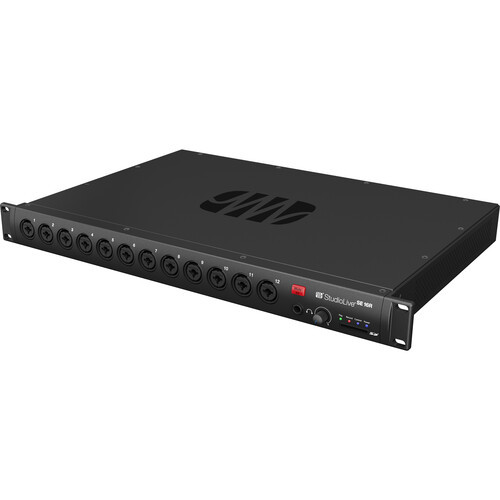

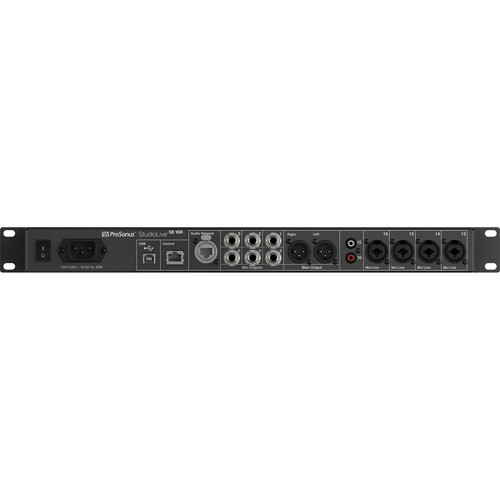

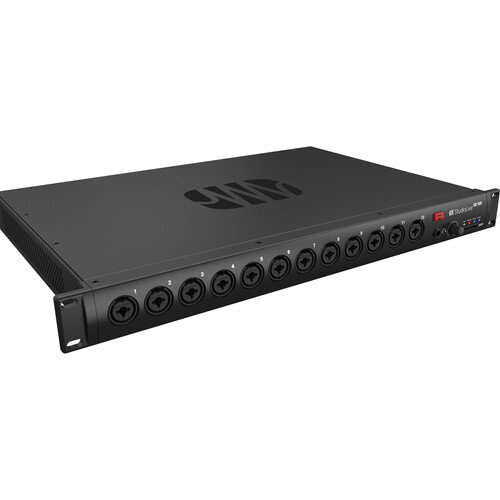

The StudioLive SE 16R packs large-format mixing power into a compact 1U rack unit. With 16 recallable XMAX-R mic preamps and FLEX DSP Fat Channel processing, every input and bus features studio-grade EQ and compression for polished, professional sound. Six FlexMixes, two dedicated FX mixes, and six DCAs give complete routing control.
Integrated 18x18 USB recording, onboard stereo SD capture, and Virtual Soundcheck with Capture software streamline recording and playback. Per-channel source switching between analog, USB, SD, and AVB makes hybrid setups effortless. And built-in Milan-certified audio networking allows plug-and-play operation with the complete line of StudioLive Series III products, while Universal Control and QMix-UC give wireless mixing freedom.
Overview
Features
- 18-channel digital rack mixer with 16 XMAX-R recallable mic preamps
- 6 FlexMixes configurable as aux, subgroup, or matrix mixes
- 2 dedicated FX mixes with stereo returns
- Continuously bidirectional 18x18 USB 2.0 audio interface
- Onboard stereo SD recording
- Virtual Soundcheck with Capture software
- Milan-certified AVB networking for StudioLive Series III systems
- Per-channel source switching (Analog, USB, SD, AVB)
- Universal Control remote mixing and Offline Editor
- QMix-UC personal monitor mixing with Wheel of Me
- Standalone, monitor mixer, interface, or stagebox modes
- Perpetual license for Fender Studio Pro included
Tech Specs
Type: |
Digital |
Channels: |
64x64 |
Inputs - Mic Preamps: |
16 x XLR-1/4" Combo |
Inputs - Other: |
1 x Dual RCA Stereo |
Inputs - Digital: |
1 x EtherCON (AVB) |
Outputs - Main: |
2 x XLR |
Outputs - Direct: |
6 x 1/4" TRS (mix) |
Busses/Groups: |
26 |
Data I/O: |
1 x Ethernet |
USB: |
1 x Type B |
Computer Connectivity: |
USB, Ethernet |
Headphones: |
1 x 1/4" |
DAW Control: |
Yes |
Software: |
QMix-U, PreSonus Capture, Fender Studio Pro |
QMix-U, PreSonus Capture, Fender Studio Pro: |
1U |
