Description

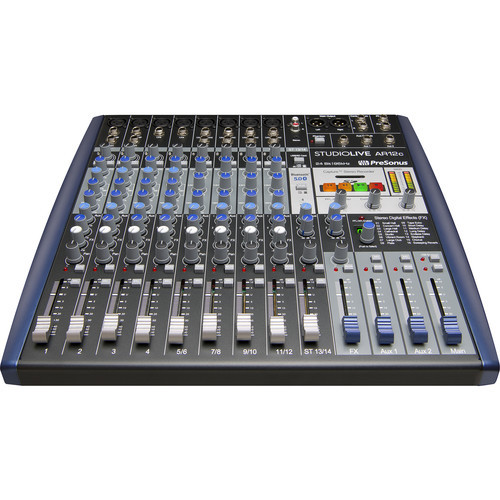

Don't let the classic analog mixer design fool you - the StudioLive® AR12c was built to record. Featuring a pristine analog front end with eight high-gain XMAX mic preamps and an 14x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR12c's hybrid design makes it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
Overview
Features
- 14x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 14-channel analog mixer with:
- 8 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 12 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 13/14) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Fender Studio Pro® Pro Perpetual License for Mac® and Windows
Tech Specs
Type: |
Analog Mixer with USB Interface |
Channels: |
12 |
Computer Connectivity: |
USB (14 x 4) |
A/D Resolution: |
24-bit/96kHz |
Faders: |
13 x 60mm |
Inputs - Mic Preamps: |
8 x XLR |
Phantom Power: |
Global |
Inputs - Line: |
1 x Dual RCA Stereo, 1 x 1/8" (stereo), 2 x 1/4" (line), 8 x 1/4" (4 x stereo pair) |
Inputs - Other: |
2 x 1/4" (Hi-Z/line) |
Outputs - Main: |
2 x XLR (main), 2 x 1/4" TRS (control room) |
Aux Sends: |
2 x Aux (pre), 1 x FX (post) |
Send/Return I/O: |
2 x 1/4" (aux send), 1 x 1/4" (FX send) |
Inserts: |
2 x 1/4" (channel) |
Headphones: |
1 x 1/4" TRS |
USB: |
1 x USB-C 2.0 |
Bluetooth: |
v5.0 |
Other I/O: |
1 x 1/4" (footswitch) |
EQ Bands: |
Low/High Shelving, Semi-parametric Mid, 100Hz Highpass |
Effects: |
8 x Reverbs, 6 x Delays, Chorus, Chorus/Reverb |
Storage: |
SD/SDHC Card Slot (2 x 2) |
Features: |
Metro remote-control (UC 4.2) |
Software: |
Fender Studio Pro |
OS Requirements - Mac: |
OS X 10.11.6 or later, 64-bit |
OS Requirements - PC: |
Windows 7 SP1 or later, 64-bit |
Power Source: |
Standard IEC AC cable |
