Description

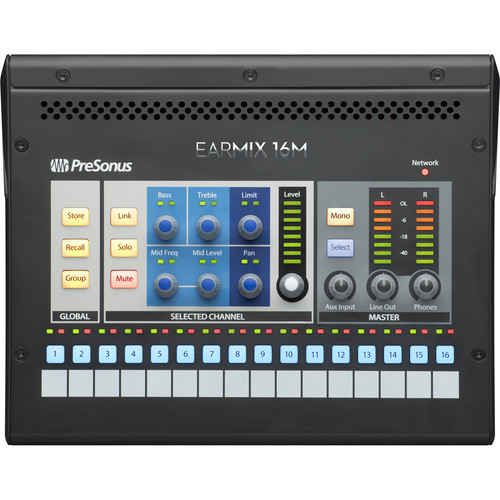

Give your musicians quick, intuitive hands-on control with the EarMix 16M. Designed to work seamlessly with PreSonus’ StudioLive Series III family of mixers, The EarMix 16M gives musicians 16 mono channels over a Milan-certified AVB network. Channels can be linked and grouped right from the surface and an onboard pan control makes getting the perfect stereo mix fast.
You also get a 3-band EQ and Limiter for every channel plus the main mix. An analog aux input makes connecting a metronome or an external source for referencing simple. A loud, clear headphone amplifier has more than enough power to drive high-quality in-ear-monitors even with low impendences. Stereo balanced TRS outputs gives musicians the option of using powered floor wedges for monitoring.
Network up to 24 EarMix 16M personal monitor mixers at once with your StudioLive Series III mixer or compatible Milan-certified device. Best of all, EarMix 16M can be powered over Ethernet (PoE) with a compatible switch, like the PreSonus SW5e, or use the included power supply. With a streamlined, uncluttered user interface and flexible onboard controls, the EarMix 16M makes personal monitoring mixing from stage easy.
Overview
Features
- 16 Mono Inputs with level, pan, solo, mute, and stereo link controls
- 3-band EQ and Limiter for every channel, plus the main mix
- Channel grouping makes managing a mix easy
- Store up to 16 mix scenes
- Loud, clear headphone amp to drive low-impedance in-ear monitors
- Balanced ¼” TRS analog outputs to connect powered monitors
- Analog input for click or reference material
- Support for PoE power using compatible switch like the PreSonus SW5e
- Daisy chain multiple units with included power supply
- Milan-certified AVB with support up to 24 units
- Mic Stand adapter sold separately
Tech Specs
Type: |
Personal Monitor Mixer |
Compatibility: |
StudioLive Series III |
Number of Ports: |
1 x AVB In, 1 x AVB Thru |
Connection Type: |
Ethernet AVB network |
Input Channels: |
16 |
Output Channels: |
2 |
Analog Inputs: |
1 x 1/8" (stereo aux in) |
Analog Outputs: |
2 x 1/4" TRS (line out) |
Headphones: |
1 x 1/4" |
Form Factor: |
Desktop |
Power Source: |
24V DC power supply / PoE support |
