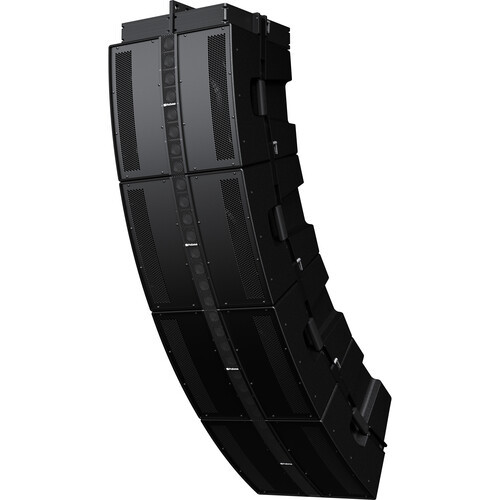

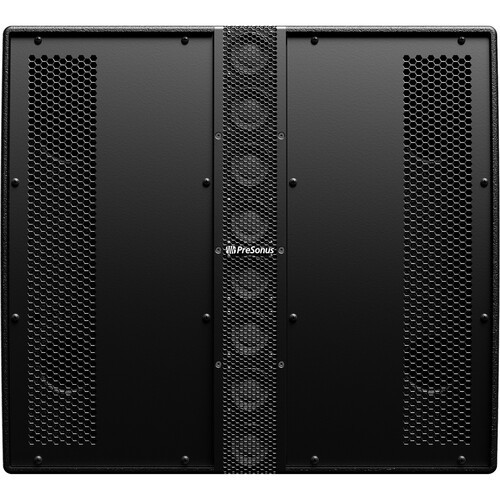

Building upon the success of the original CDL12, the PreSonus CDL12P is a constant directivity loudspeaker well suited for fixed installations and mobile sound reinforcement for live bands, DJs, clubs, event halls, bars, speaking engagements, and more. By combining the best attributes of point source and line array technologies, the CDL12P offers consistent, coherent sound with focused pattern control and consistent SPL throughout the frequency response range.
The polypropylene enclosure houses a 2000W Class-D amplifier that powers the single 12" (1000W) woofer and eight 2" hi-mid frequency drivers (1000W), which combine to offer a frequency range of 48 Hz to 18 kHz (±3 dB) with a maximum SPL of 130 dB. With a low 420 Hz crossover, the CDL12P minimizes comb filtering between the high-mid drivers and the 12" driver.
Why We Like This
The CDL12P delivers consistent coverage and controlled dispersion by combining point-source and line-array design elements, making it practical for both portable and installed sound systems.
FAQs
Q: What applications is this speaker designed for?
It is suited for live bands, DJs, venues, and installed sound systems.
Q: What is the power configuration?
It features a 2000W Class-D amplifier powering the woofer and hi-mid drivers.
Q: How does it control sound dispersion?
Its constant directivity design provides focused pattern control and consistent SPL across the frequency range.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.
Tech Specs
Powered: |
Yes |
Power Configuration: |
Bi-amped |
Channels: |
Single channel mixer |
LF Driver Size: |
1 x 12" Woofer |
HF Driver Size: |
8 x 2" |
LF Driver Power Amp: |
500W Program |
HF Driver Power Amp: |
500W Program |
Total Power: |
2000W Peak, 1000W Program |
Inputs: |
1 x XLR |
Outputs: |
1 x XLR |
Frequency Response: |
48Hz-18kHz (-3 dB) |
Crossover Frequency: |
420 Hz |
Maximum Peak SPL: |
130 dB SPL |
Horizontal Coverage Angle: |
120° |
Vertical Coverage Angle: |
15° |
Signal Processing: |
DSP Presets, HPF, Array Mode (Number of Arrayed Boxes), PreSonus Subwoofer Configuration Preset |
Enclosure Material: |
15mm Polypropylene ABS with steel grille |
Mounting Options: |
Pole, Fly |
Power Source: |
PowerCON in/out |
